Attention
Before connecting the modules, make sure that there are no metallic objects,
e. g. conductive foils, between the individual modules.
4.4.5 Removing the Patient Box from the Compact
Device
1. Grasp the monitoring unit by the carrying handle and pull both snap locks
simultaneously forwards and upwards with your thumbs or push them
rearwards and downwards.
2. Tilt the monitoring unit with the patient box forwards (item A) (see
chapter 4.4.1 Disconnecting the Monitoring Unit from the Defibrillator/Pacer,
p. 51).
3. Push the snap lock of the patient box downwards.
4. Tilt the patient box backwards and remove upwards from the monitoring
unit (item B) (see chapter 4.4.2 Disconnecting the Patient Box from the
Monitoring Unit, p. 52.).
5. Tilt the monitoring unit towards the defibrillator/pacer until the closures at
the top of the monitoring unit audibly engage in the recesses on the
defibrillator/pacer (see chapter 4.4.4 Connecting the Monitoring Unit to the
Defibrillator/Pacer, p. 54).
A
C
B

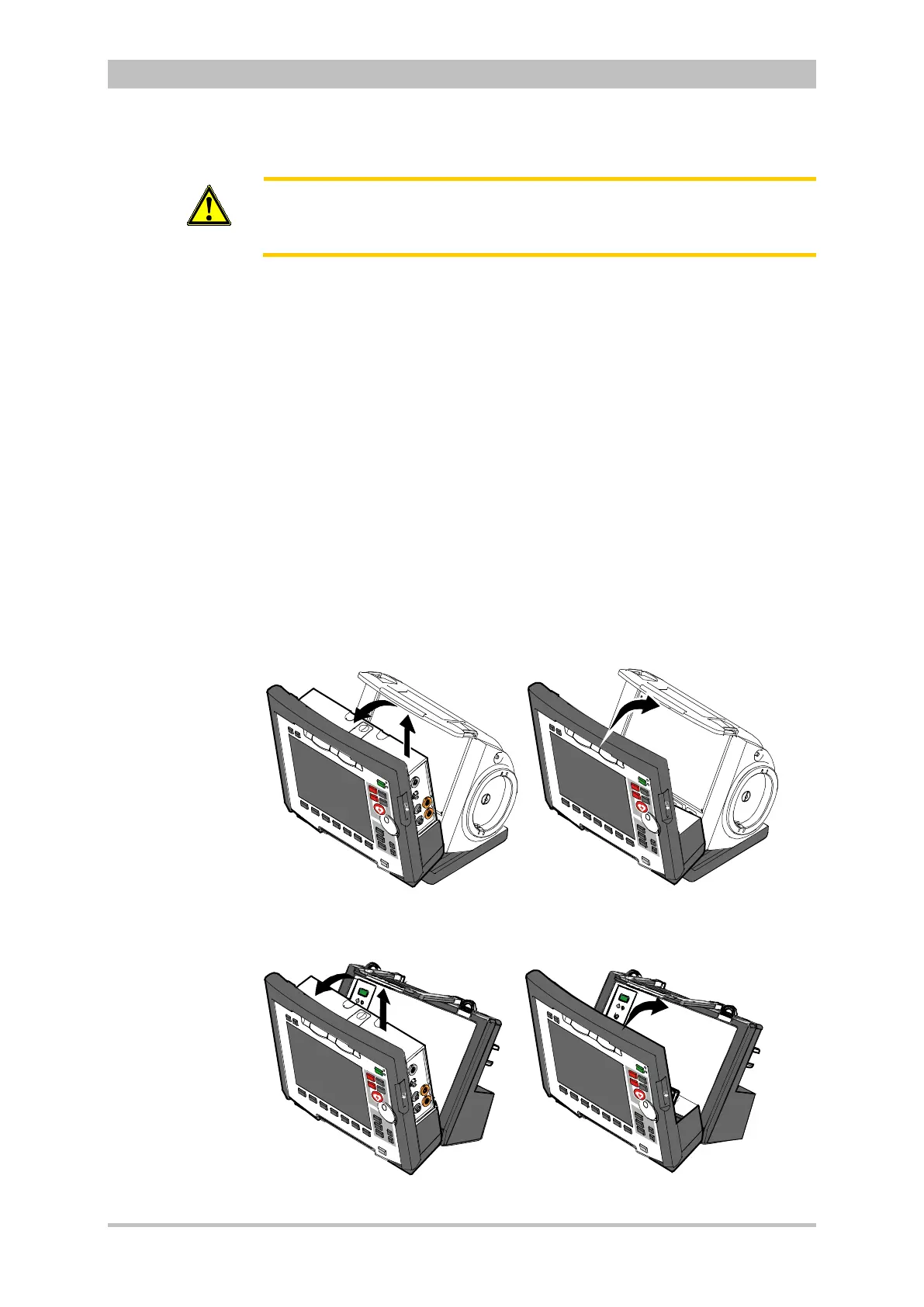

Fig. 4-23 Removing the patient box from the compact device (illustration may
differ)
A
B
C
Fig. 4-24 Removing the patient box from the compact device with
defibrillator/pacer SLIM
