3.2.6 Brackets
Various brackets, with and without power supply, are available for the device in
compact, semi-modular or modular use.

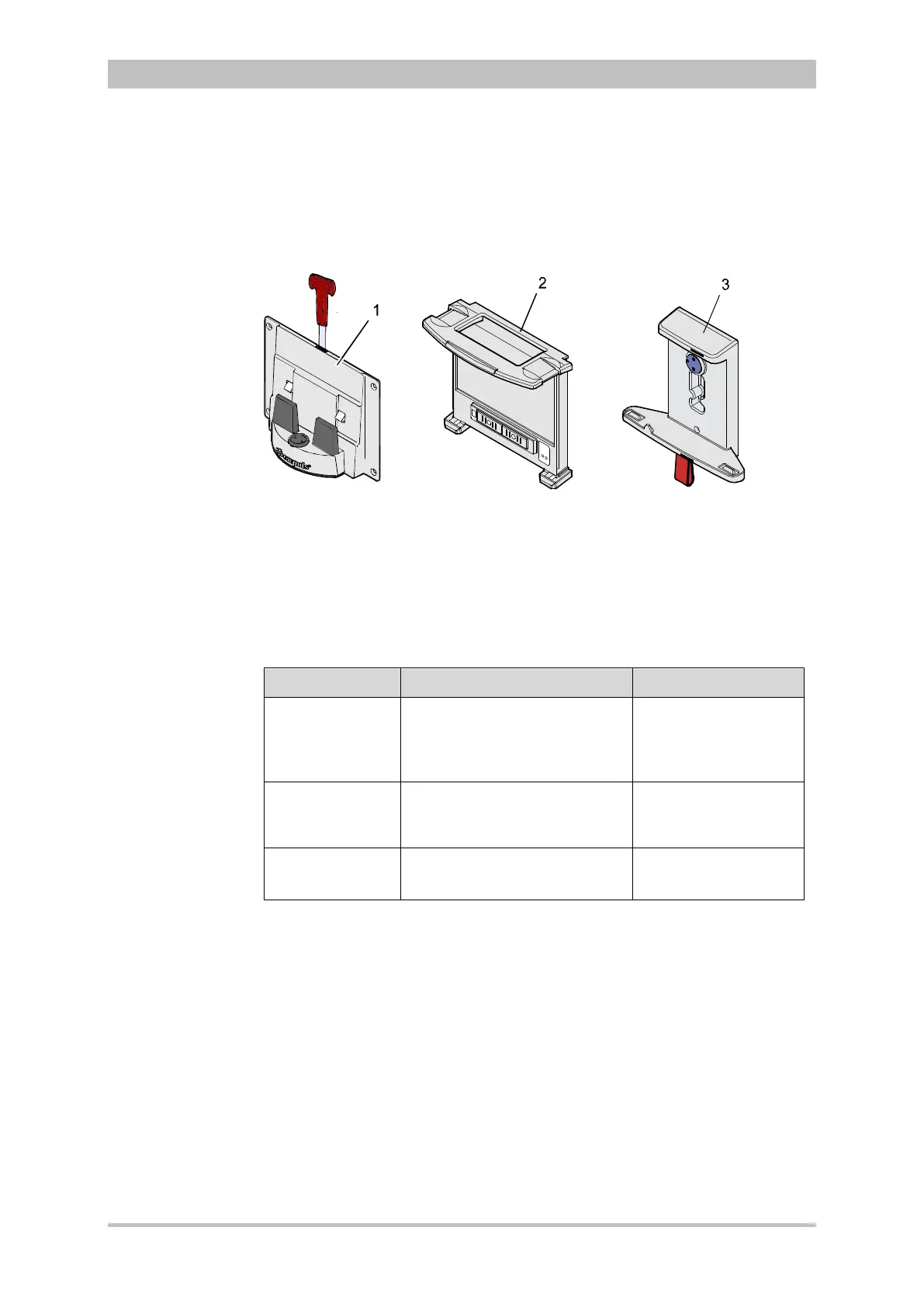

Fig. 3-13 Brackets
1 Defibrillator/compact device bracket
2 Monitoring unit bracket
3 Patient box bracket
Chapter 4.6 Inserting the Device into the Brackets, p. 60 contains information
on inserting the modules into the brackets.
Bracket Use Power
Bracket for
defibrillator/
compact device
Defibrillator/pacer and
modules connected
mechanically to the
defibrillator/pacer
− 12 V DC
− No power supply
Bracket for
monitoring unit
Monitoring unit and patient box
connected mechanically to the
monitoring unit
− 12 V DC
− No power supply
Bracket for
patient box
Patient box
− 12 V DC
− No power supply
Table
3-1 Brackets and power supply options
The charging brackets can also be connected to voltages other than 12 V DC
using DC/DC or AC/DC converters.
