6.2.6 Heart Rate Monitoring
In addition to the ECG curves, the heart rate is evaluated and displayed on the
screen when monitoring the ECG.
1. To display the heart rate, select the parameter field and open the
parameter context menu (see chapter 4.3.2 Parameter Context Menu and
Curve Context Menu, p. 47).
2. Select heart rate in the parameter context menu and confirm. The heart
rate is displayed in the parameter field.
3. By means of the parameter context menu for the heart rate, the VT/VF
alarm can be enabled "VT/VF alarm ON" or disabled "VT/VF alarm OFF".

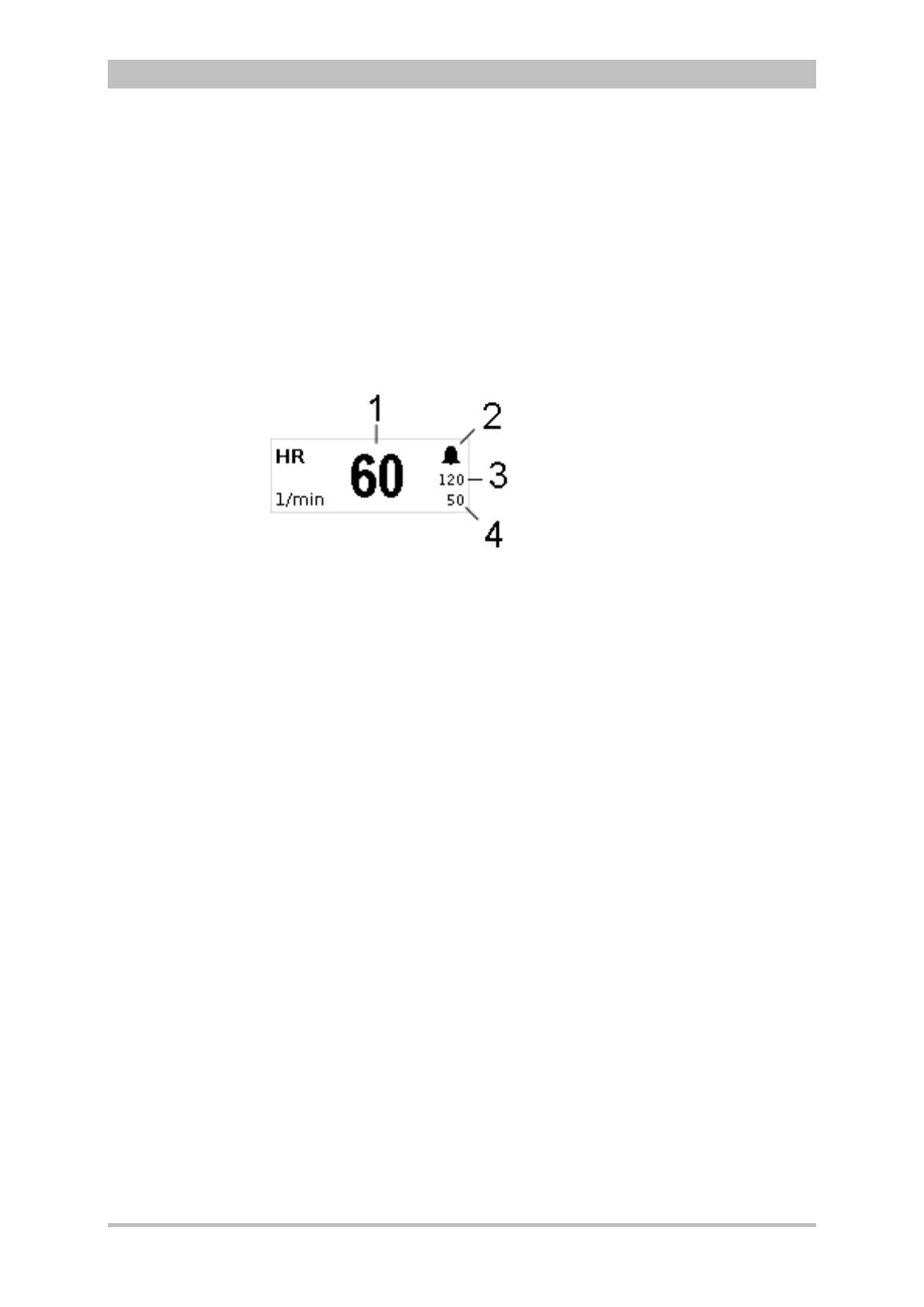

Fig. 6-6 Heart rate parameter field
1 Current heart rate in 1/min
2 Symbol for switched-on alarms
3 Upper alarm limit
4 Lower alarm limit
6.3 Recording, Measuring, Printing and
Interpreting a Diagnostic ECG
6.3.1 Information on Diagnostic ECG
Based on a 12 lead ECG, HES
®
Light performs a ECG measurement of the
diagnostic ECG. On the printout, the results are clearly arranged in tables that
can help with interpretation and diagnosis during a mission.
Optionally, HES
®
Light can be complemented by an extendend version of HES
®
.
The corpuls
3
then issues a therapy suggestion based on the results of the
„corpuls S“ or "STEMI" therapy algorithms . With these, the user can make
early on tactical decisions as to which hospital to send the patient to or what
emergency measures to perform immediately.
In cooperation with internationally renowned cardiologists, HES
®
has been
developed and refined continuously since 1968. A large number of leading
medical equipment manufacturers integrate this algorithm into their medical
products.
HES
®
Light and HES
®
identify a „Representative cycle“ from the diagnostic
ECG. From this representative cycle the measurement tables are compiled
which are necessary for an ECG interpretation (see chapter 6.3.4,
Representative , Seite 111). The representative cycle can be printed out with
the diagnostic ECG (see chapter 7.1.3 Printer settings, page 143).
ECG S
HES
