IconMaster Installation and Configuration Manual 219
Chapter 9: Enabling a RouterMapper Database for Use with an IconMaster System
4. At the RouterMapper main menu window, highlight the Panacea router
entry, and then click Edit.
5. Select the Router Frame tab. Panacea module information such as matrix
size, type, and module options will be displayed (see Figure 9-2). These will
vary, depending on your Panacea’s matrix type.

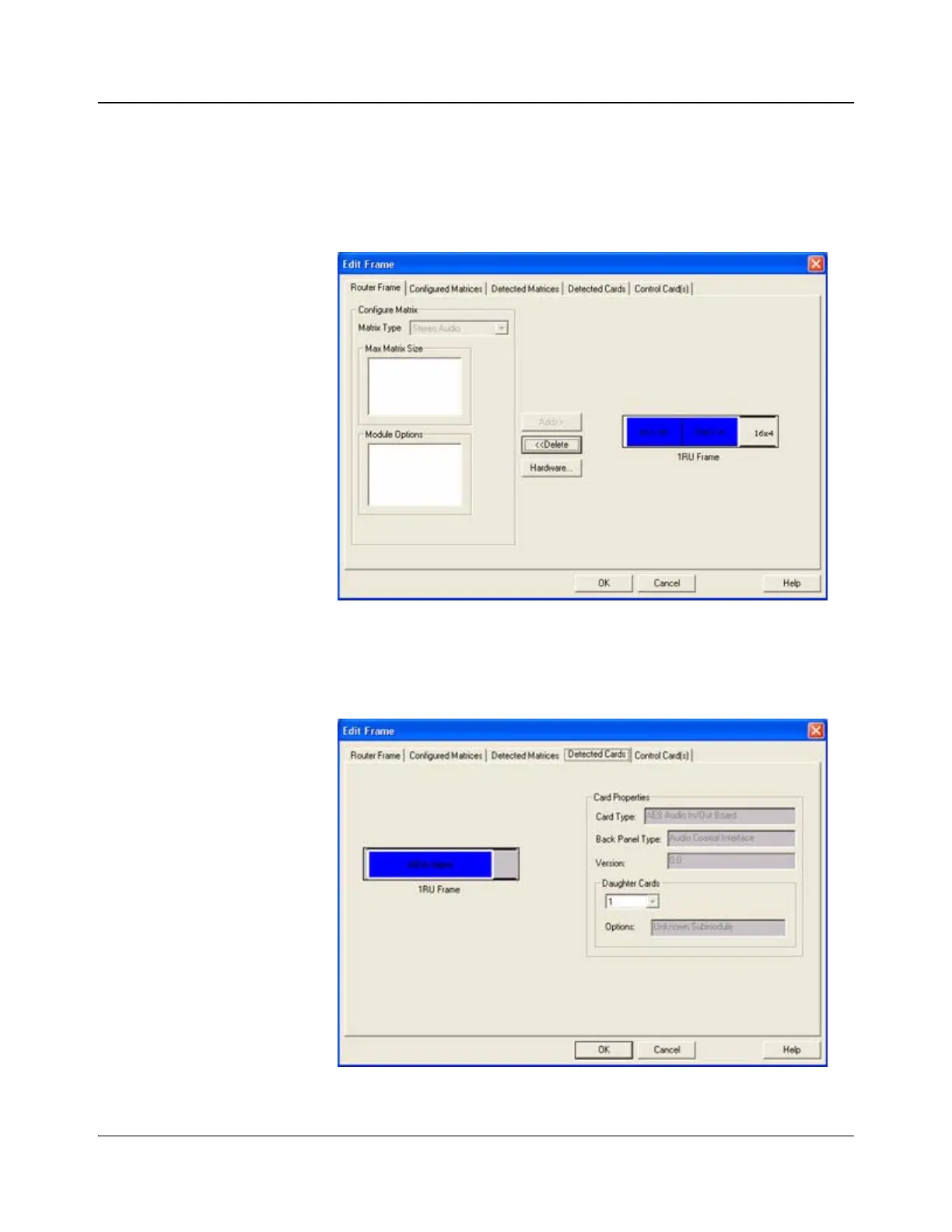

Figure 9-2. Router Frame Tab
6. Select the Detected Cards tab. Panacea module information such as card
type, back panel type, and firmware version will be displayed.
Figure 9-3. Detected Cards Tab
