IconMaster Installation and Configuration Manual 27
Chapter 2: Installation

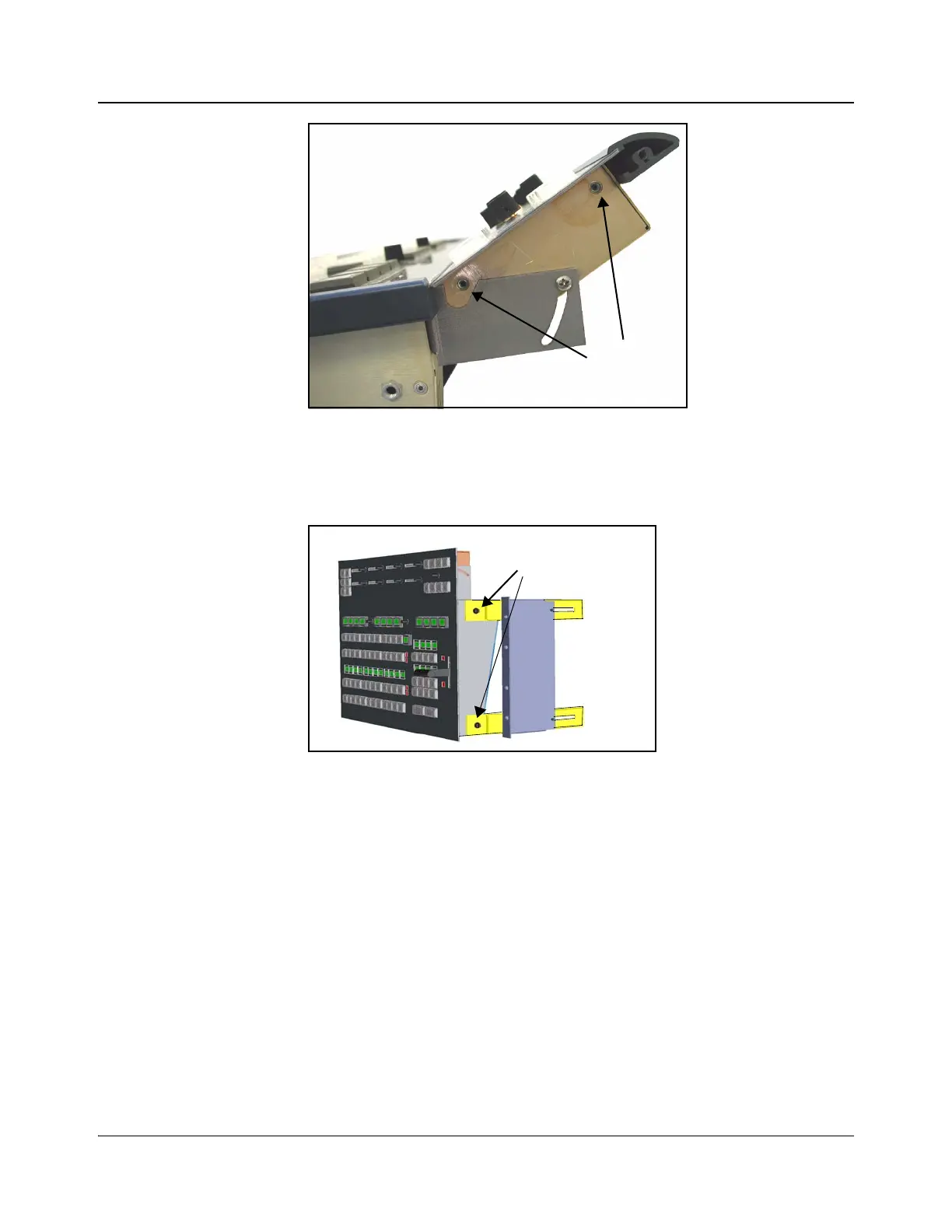

Figure 2-12. Audio Control Panel Side Screws
6. Attach the mounting brackets to the sides of the main control panel using
the screws provided (see Figure 2-13).
Figure 2-13. Attaching the Rack-Mount Bracket
7. Loosen the screws on the sliders, and then reposition the sliders to change
the viewing angle of the control panels (see Figure 2-14).
