Verifying the measured value and time at the cursor position (cursor
measurement)

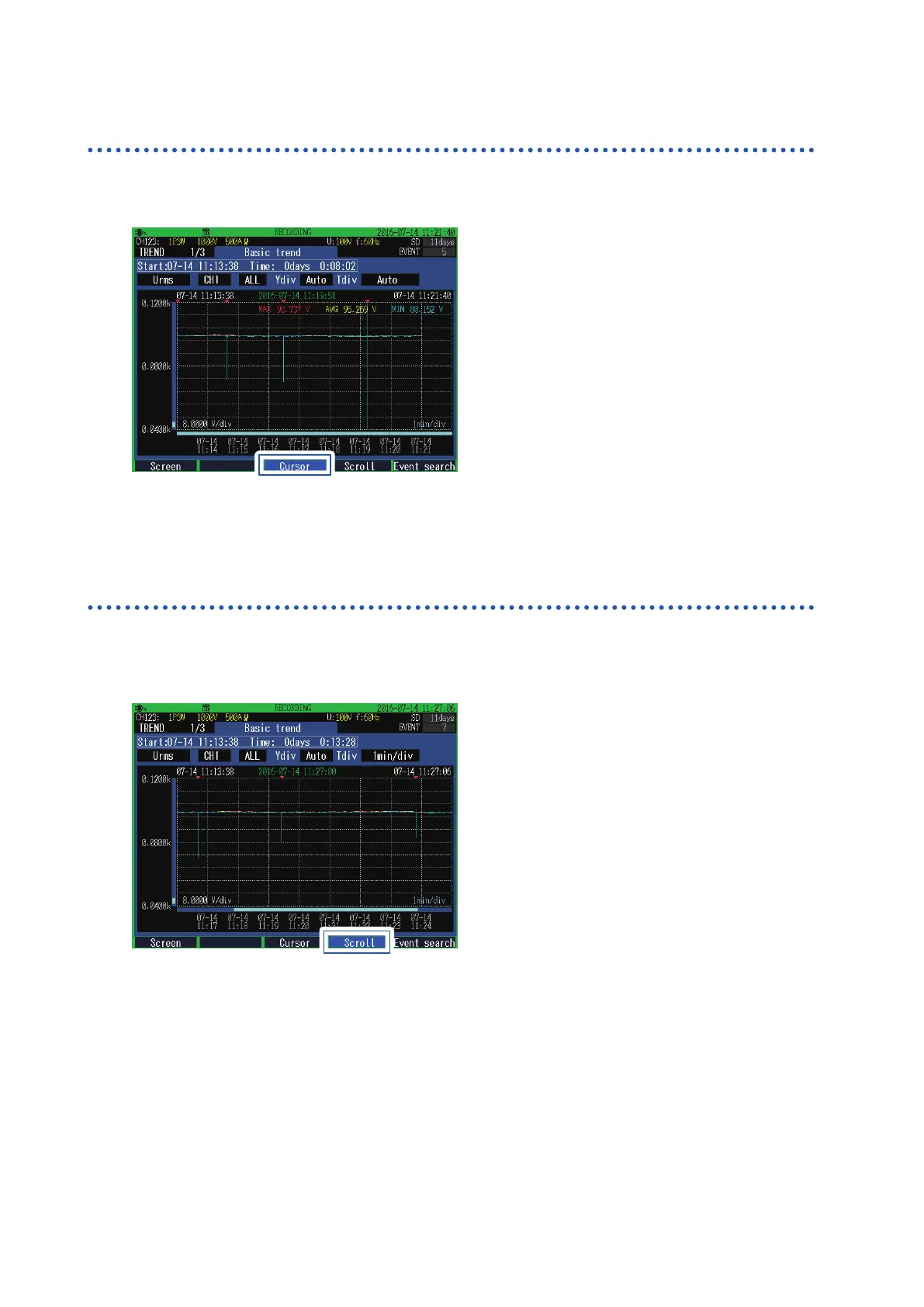

If you press the [F3] (Cursor) key, the measured value and time at the position of cursor will also
be displayed along with the cursor.
You can move the position of the cursor by using the
keys.
• When the recording interval is set to 150 cycle or 180 cycle, the time is displayed, followed by a small
number on the order of milliseconds.
• The time displayed at the time of cursor measurement is based on the CH1 voltage (U1). The time displayed
on the event list and the time displayed at the time of cursor measurement may not match.
Scrolling the graph
If the graph continues out of the borders of the screen, press the [F4] (scroll) key to be able to
scroll the graph.
Use this key to scroll the graph in every direction.
(If the zoom factor for horizontal axis [time axis] is set to Auto, the horizontal and vertical axes
are automatically scaled so that the time series graph is entirely displayed on the screen.
