Screen Conguration

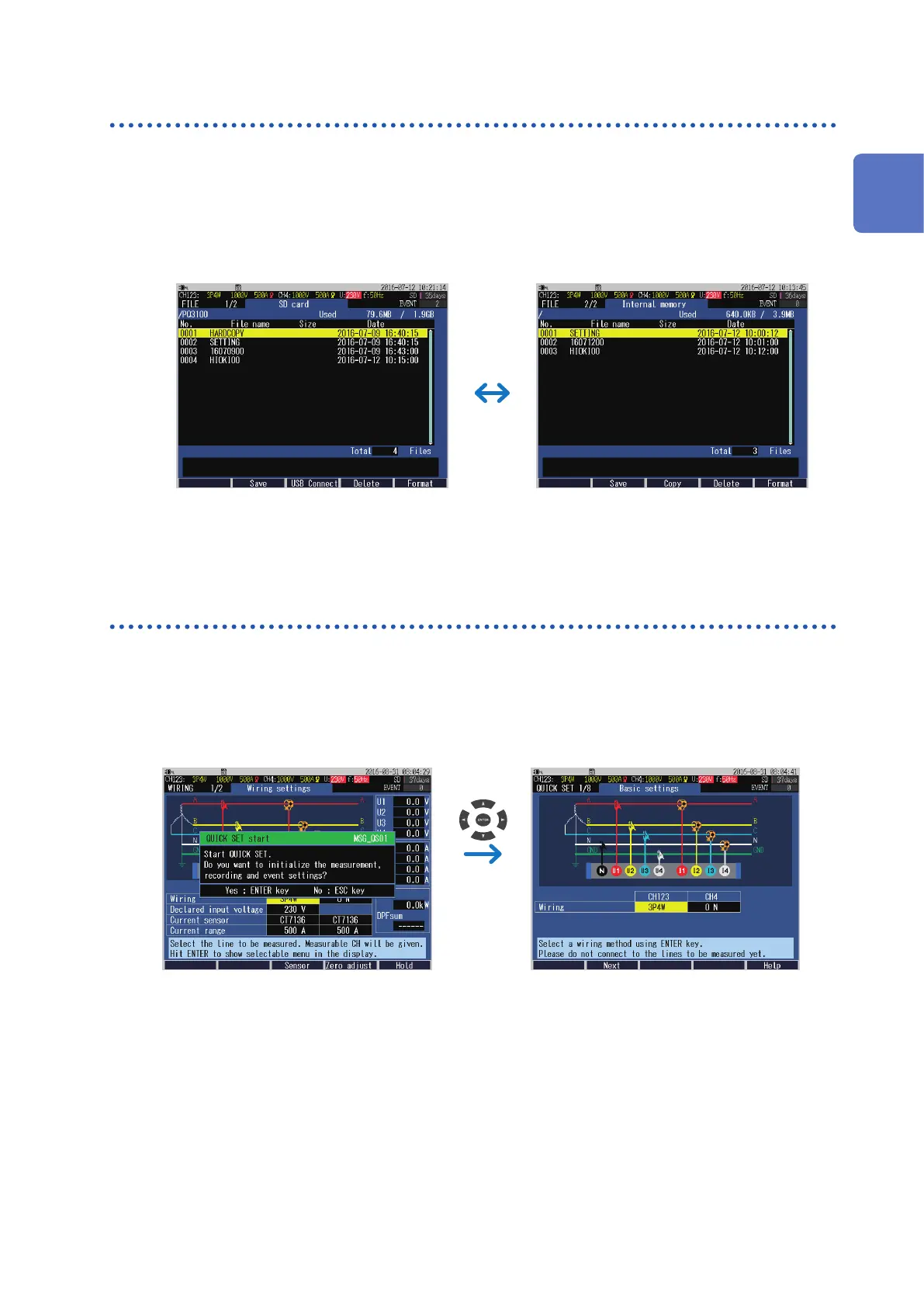

FILE screen

A screen used for le operations.

This screen allows listing and operations for les of the SD memory card and internal memory.

Display/switch screen: [FILE] key

See “10 File Saving and Operations (FILE Screen)” (p. 115).

SD card screen

This screen shows lists of folders and les in the

SD memory card.

Internal memory screen

This screen shows lists of folders and les in the

internal memory.

QUICK SET screen

Minimum conditions required for recording can be set by following the Quick Set instructions.

Quick Set start: [QUICK SET] key

See “3 Quick Set” (p. 45) and refer to Measurement Guide (provided separately).

Quick Set start dialog

Press the

[ENTER]

key.

Overview

Default Chapter3
- Table of Contents3
