Verifying the Electric Energy
6.3 Verifying the Electric Energy

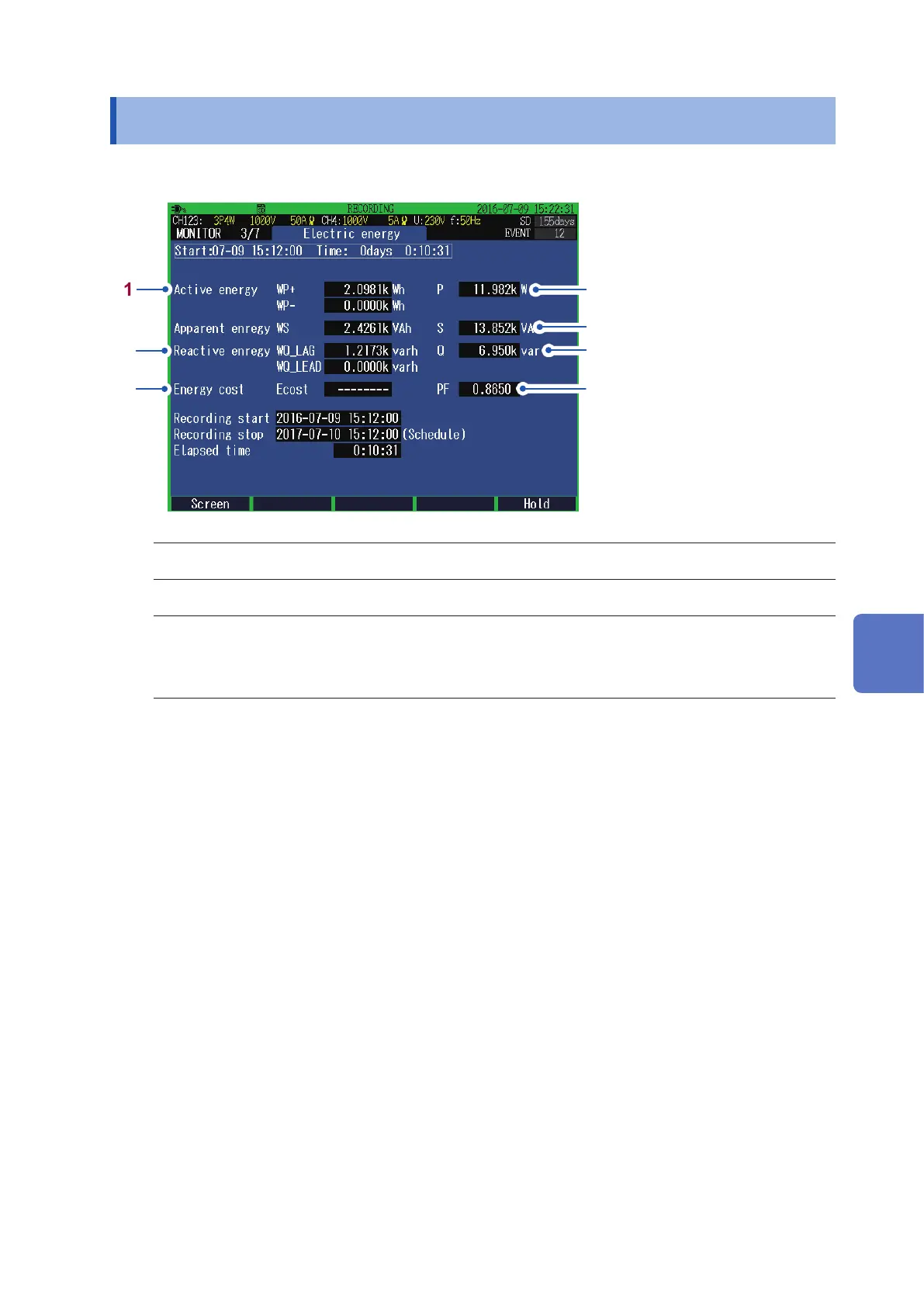

Press the [MONITOR] key to display the MONITOR, Electric energy screen.
PF: Power factor
DPF: Displacement power factor
(Not displayed for 3-phase 3-wire line)
See Calculation method (p. 66).
1
2
3
Active power
Apparent power
Reactive power
1
Active energy (WP+: consumption, WP-: regeneration)
2
Reactive energy (WQ_LAG: lag, WQ_LEAD: lead)
3
Energy cost
Value obtained by multiplying the “active energy consumption: WP+” by the energy unit cost*
*: See “SET UP, Measurement Settings 2 screen” (p. 66)
