Verifying the Detail Trend
8.2 Verifying the Detail Trend

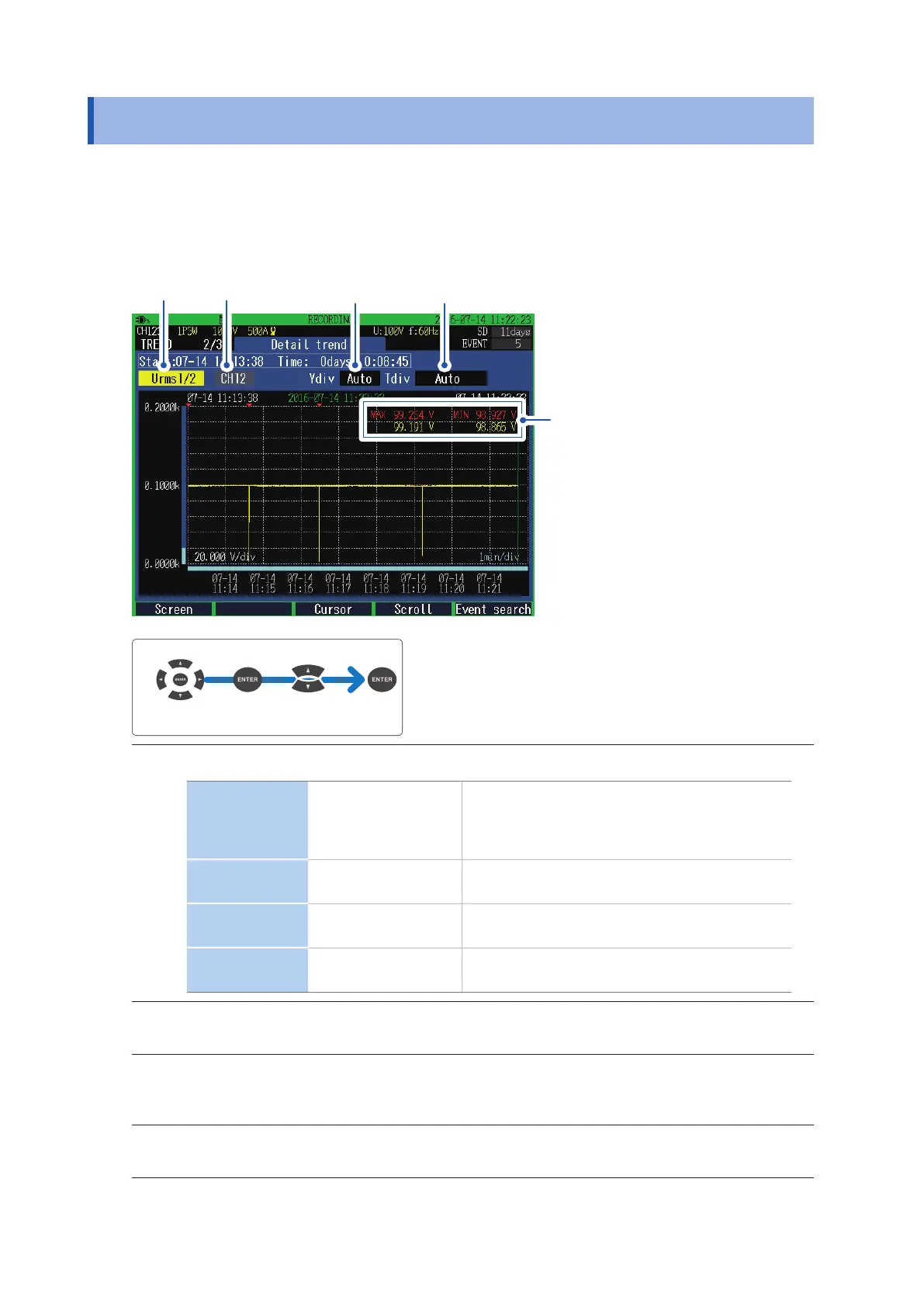

Press the [TREND] key to display the TREND, Detail Trend screen.
You can check the uctuation range of the maximum value and minimum value during the recording
intervals.
(The uctuation range of the maximum and minimum value is calculated per wave or per half
wave.)
1 42 3
MAX: Maximum value
MIN: Minimum value
The latest measured values are
displayed when the cursor is disabled,
while the measured values at the position
of cursor are displayed during the cursor
measurement (The gure on the left
illustrates the screen that is displayed
when the cursor is disabled).
Move the cursor Select
1
Enables you to set the display parameters.
Urms1/2 RMS voltage refreshed
each half-cycle
Calculation over a 1-cycle time, refreshed each
half-cycle
See “RMS voltage refreshed each half-cycle”
(p. Appx.11).
Irms1/2 RMS current refreshed
each half-cycle
Calculation over a 1-cycle time, refreshed each
half-cycle
Inrush Inrush current Calculation over each half-cycle time
See “Inrush current” (p. Appx.13).
Freq_wav Frequency (1 wave) Calculation over each 1-cycle time
See “Frequency (1 wave)” (p. Appx.12).
2
Enables you to set the display channel.
The channel which can be set differs according to the display items and wiring settings.
3
Set the zoom factor for the vertical axis of the graph.
Auto, ×1, ×2, ×5, ×10, ×25, ×50
4
Set the zoom factor for the horizontal axis (time axis) of the graph.
The horizontal axis (time axis) which can be set, differs according to the recording intervals.
