Recording Settings
5.2 Recording Settings

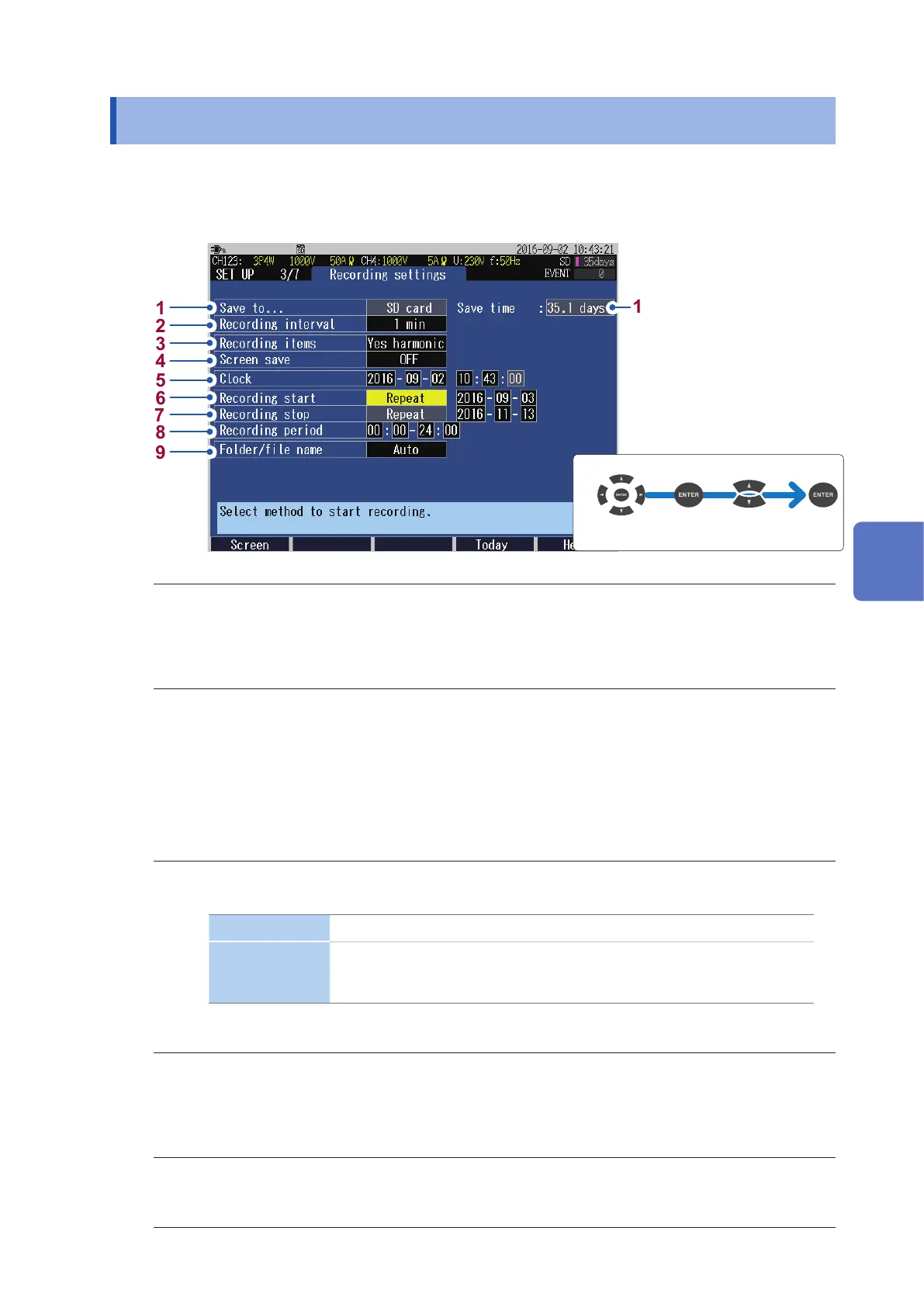

Press the [SET UP] key to display the SET UP, recording settings screen.
Perform the settings regarding recording (storage).
The maximum recording period is up to 1 year and then the recording stops automatically.
1
10
2
3
4
5
6
7
8
9
Move the cursor
Select
1
• The storage destination of measurement data is xed to the SD card. If no SD memory card is
inserted or if there is no free space in the SD memory card, data will be stored in the instrument’s
internal memory (capacity of approx. 4 MB).
• No data such as event data but only the setting data and the trend record data are stored in the
internal memory. See “File Saving and Operations (FILE Screen)” (p. 115).
2
Enables you to select the recording interval. It will also reect in the intervals in the trend graph.
150 cycle (only in the case of 50 Hz), 180 cycle (only in the case of 60 Hz), 200 ms, 600 ms, 1 sec,
2 sec, 5 sec, 10 sec, 15 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, 1 hour, 2 hour
• The 150 cycle (50 Hz) and 180 cycle (60 Hz) settings provide the recording intervals required for
IEC61000-4-30-compliant measurement.
• The shortest recording interval of the internal memory is 2 s. If the recording interval of 1 sec or
below is set, then the data cannot be stored in the internal memory.
3
Enables you to select the parameters that you wish to record. It will also reect in the parameters that
are displayed on the TREND screen.
Yes harmonic All the parameters are recorded.
No harmonic
Records the parameters other than the harmonic or interharmonic
parameters.
Records the total harmonic distortion (THD).
The display possible time of the TREND screen changes according to the setting of Recording
interval and Recording items.
4
Enables you to select ON, for saving the display screen in the BMP format data (screen copy).
Screen copies cannot be saved in the instrument’s internal memory.
If the Recording interval is set to below 5 min, then they are saved every 5 min.
ON/OFF
5
Enables you to set the date and time.
(The seconds cannot be set. If you press the [Enter] key after changing time, the seconds will be
set to 00.)
5
Setting Change (SET UP Screen)
