Initial Measurement Preparations

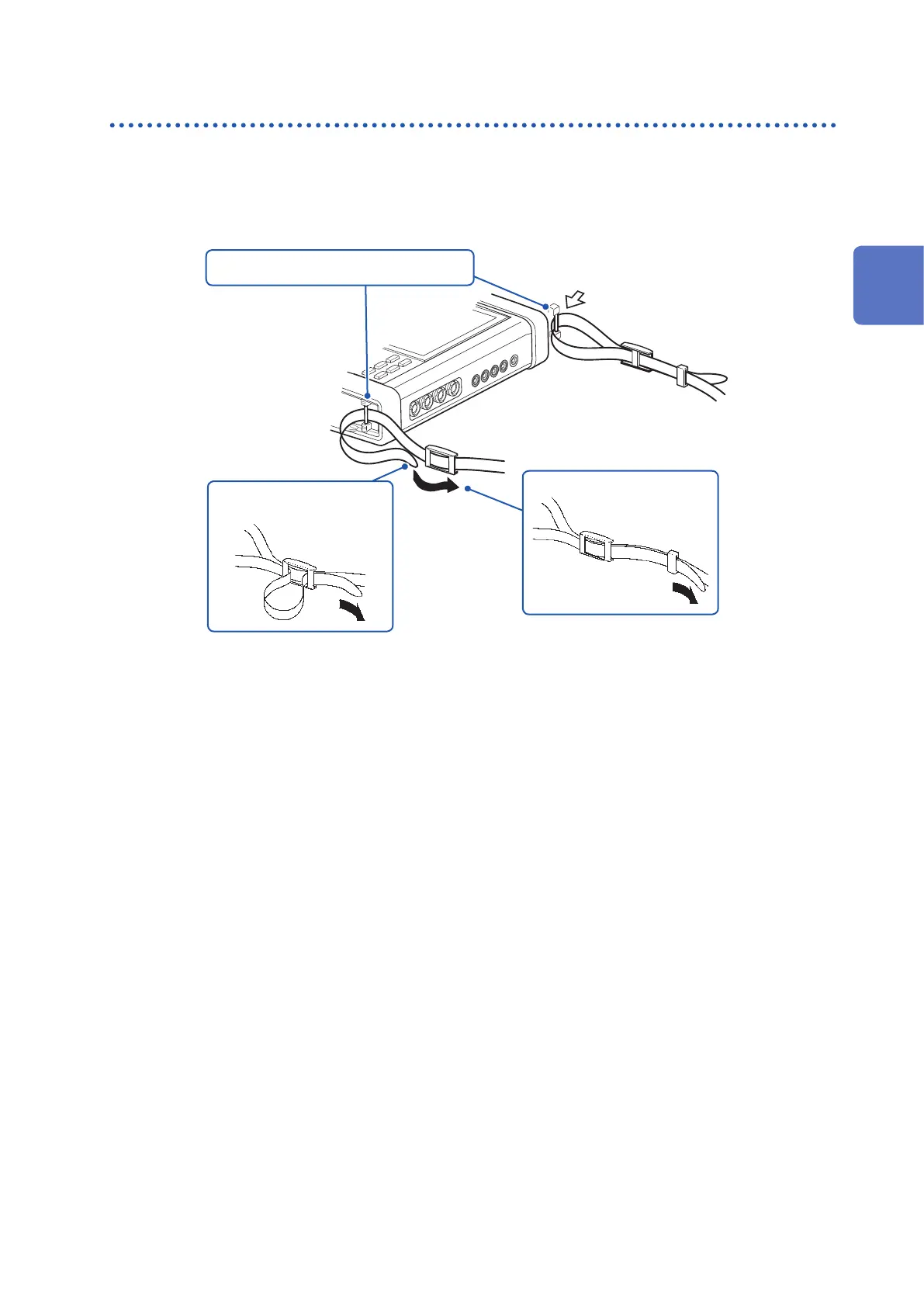

Attaching the strap (if required)
Be sure to read “Attaching the Strap” (p.
10).
If required, attach the strap when carrying the instrument or hanging it on a hook at the installed
location.
Pass through the
buckle.
2
Pass through the loop.
3
Pass through the strap eyelet.
1
T
ighten the straps securely to avoid loosening or twisting.
2
