Verifying the Current Details
6.5 Verifying the Current Details

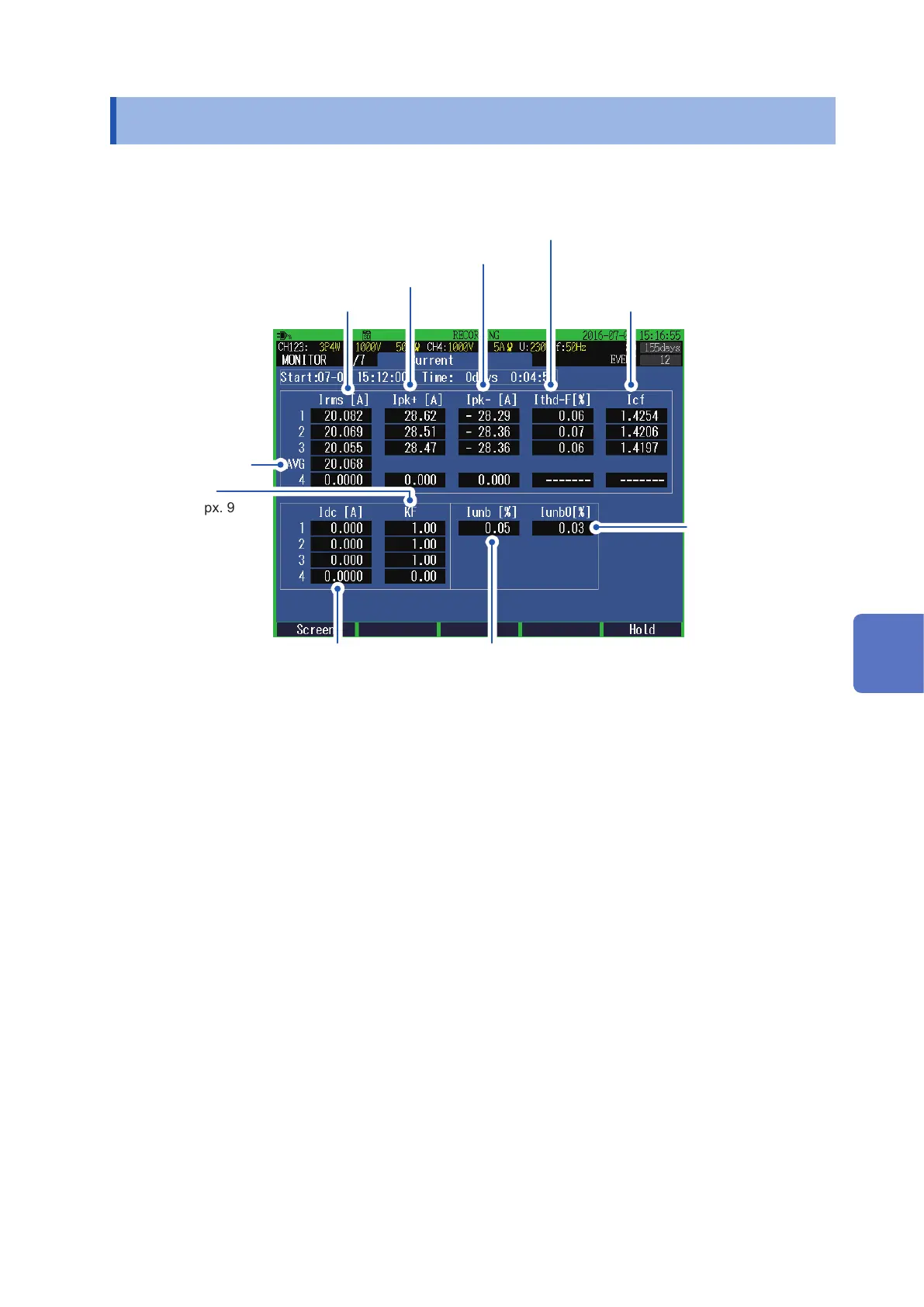

Press the [MONITOR] key to display the MONITOR, Current screen.
Current waveform peak (+)
Current crest factor
([absolute value of current waveform
peak]/[RMS current])
RMS current
Current waveform peak (-)
Current total harmonic distortion (calculation method THD-F / THD-R)
See Calculation method (p. 66).
Current zero-phase
unbalance factor
(Not displayed for
3-phase 3-wire)
See “Unbalance
factor” (p. Appx.29).
Current negative-phase unbalance factor
See “Unbalance factor” (p. Appx.29).
Current DC value
K factor
See “Appx. 9
Terminology”
(p. Appx.24).
Average value of
the channels
6
