Verifying the Electric Power (List of Numerical Values)
6.2 Verifying the Electric Power (List of Numerical
Values)

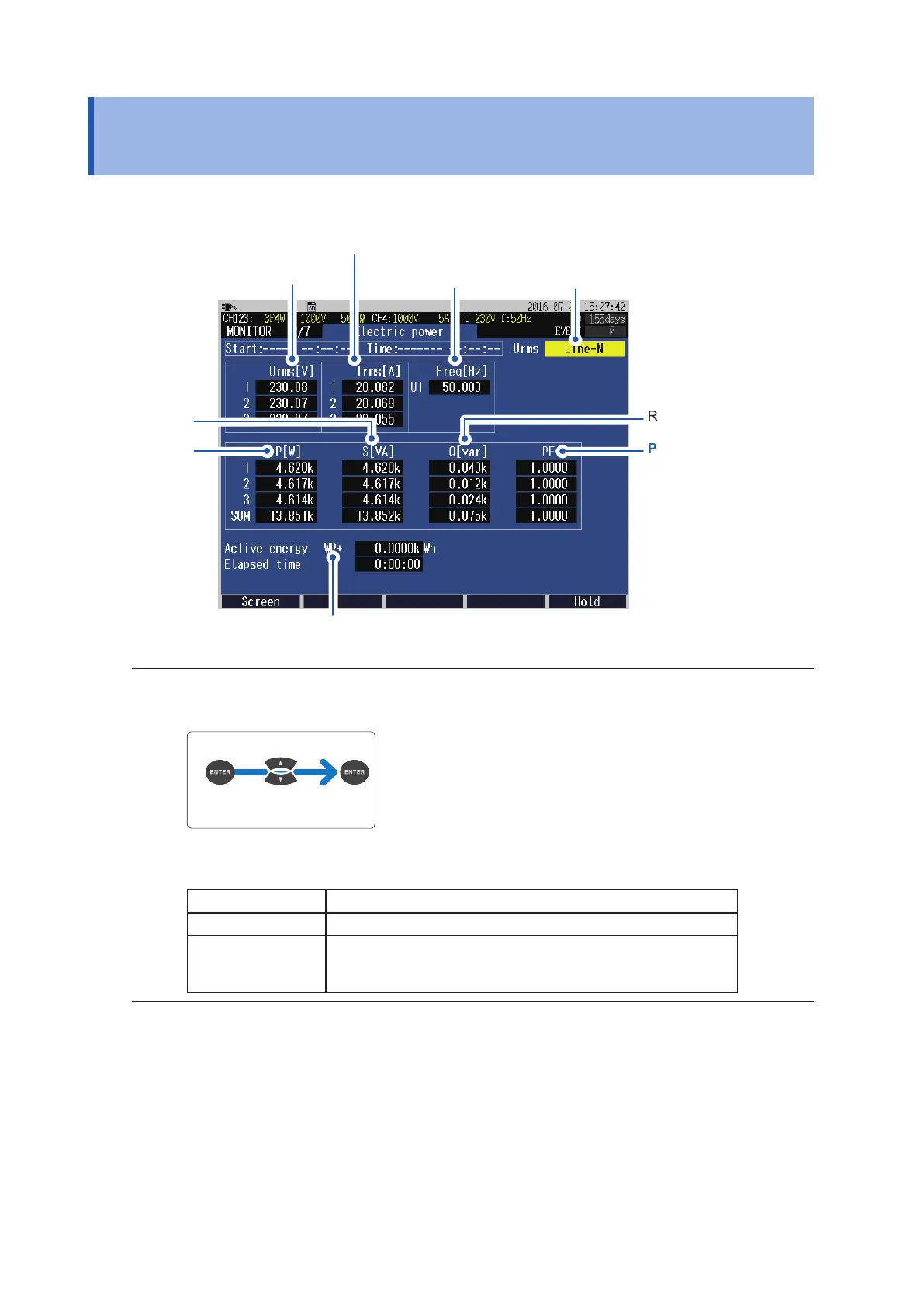

Press the [MONITOR] key to display the MONITOR, Electric power screen.
RMS current
1
RMS voltage
Frequency (average value
for a period of 200 ms)
PF: Power factor
DPF: Displacement power
factor
See Calculation method
(p. 66).
Active energy Consumption
Reactive power
Active
power
Apparent
power
1
When the wiring method is 3P3W3M, 3P4W, or 3P4W2.5E (available after the rmware update), the
display method of the RMS voltage can be switched (between phase voltage and line voltage).
Select
Phase voltage (Line-N), Line voltage (Line-Line)
For 1P2W, 1P3W Fixed to phase voltage
For 3P3W2M Fixed to line voltage
For 3P3W3M, 3P4W,
3P4W2.5E
Can be switched between the line voltage and phase voltage.
Both the phase voltage and line voltage are stored as a output
data. (3P4W2.5E will be available after the rmware update.)
