Verifying the Voltage Waveform and Current Waveform
Changing the zoom factor for the vertical axis and horizontal axis (X
and Y axis) of the waveform
1 2
Move the cursor Select
1
Enables you to set the zoom factor for the vertical axis (Y axis) of the waveform (U: voltage, I:
current).
×1/4, ×1/2, ×1, ×2, ×5, ×10, ×20, ×50
2
Enables you to set the zoom factor for the horizontal axis (time axis) of the waveform.
10ms/div, 20ms/div, 40ms/div

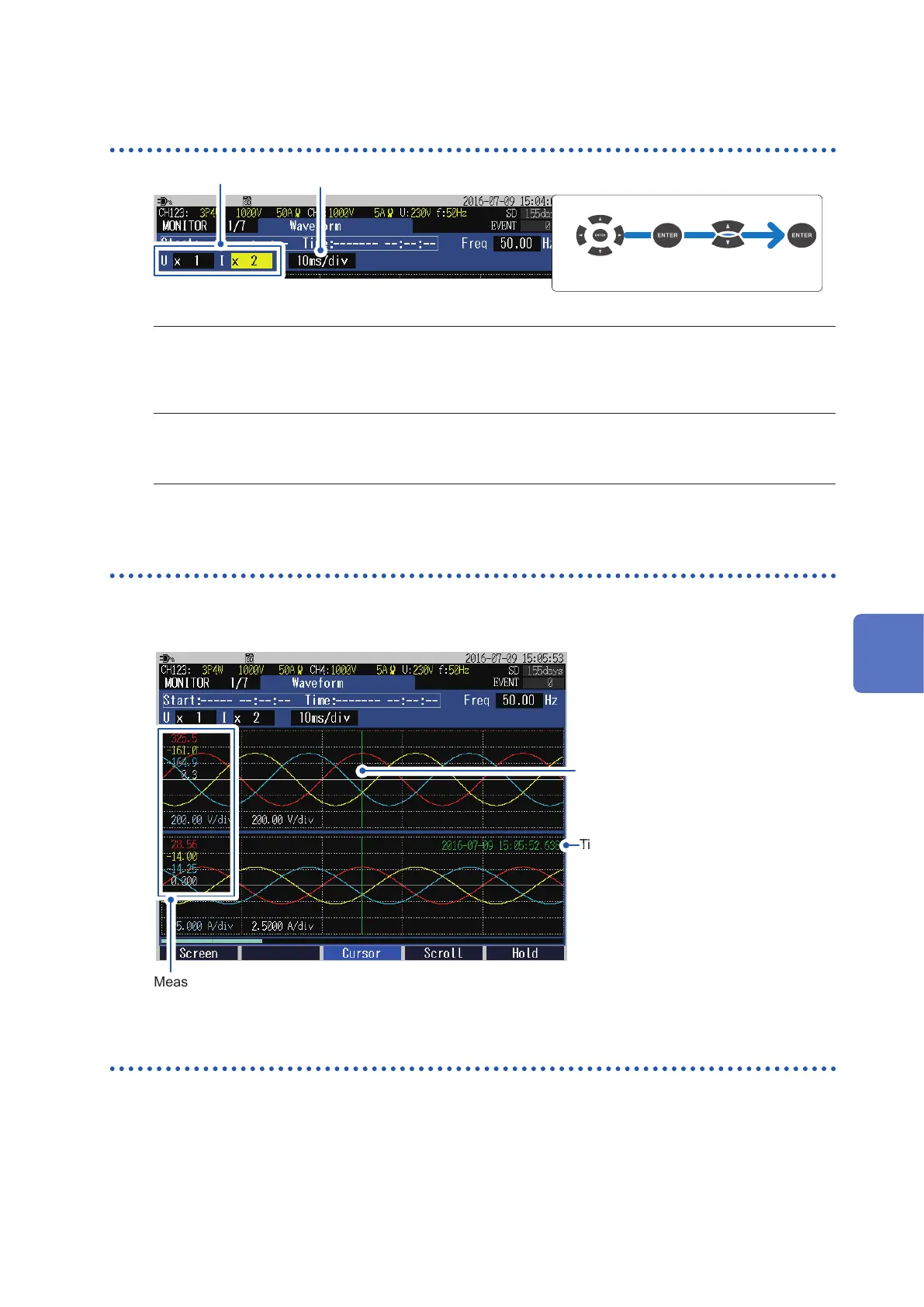

Verifying the measured value and time at the cursor position (cursor
measurement)
If you press the [F3] (Cursor) key, the measured value and time at the cursor position will also
display along with the cursor.
Move the position of the cursor by using the

keys.
Cursor
Measured value at the
cursor position
Time at the cursor position
Scrolling the waveform
If the waveform is protruding from the screen, press the [F4] (Scroll) key to be able to scroll the
waveform.
Enables you to scroll the waveform in the vertical and horizontal directions by using the

keys.
6
Verifying the Waveform, Measured Values (MONITOR Screen)
