Hioki PQ3100 User Manual

72
Event Settings
5.3 Event Settings
An event will occur using the set threshold value on this screen as the basis.
For more information about events, see “Appx. 3 Explanation of Power Quality Parameters and
Events” (p. Appx.4), “Appx. 4 Event Detection Methods” (p. Appx.8).

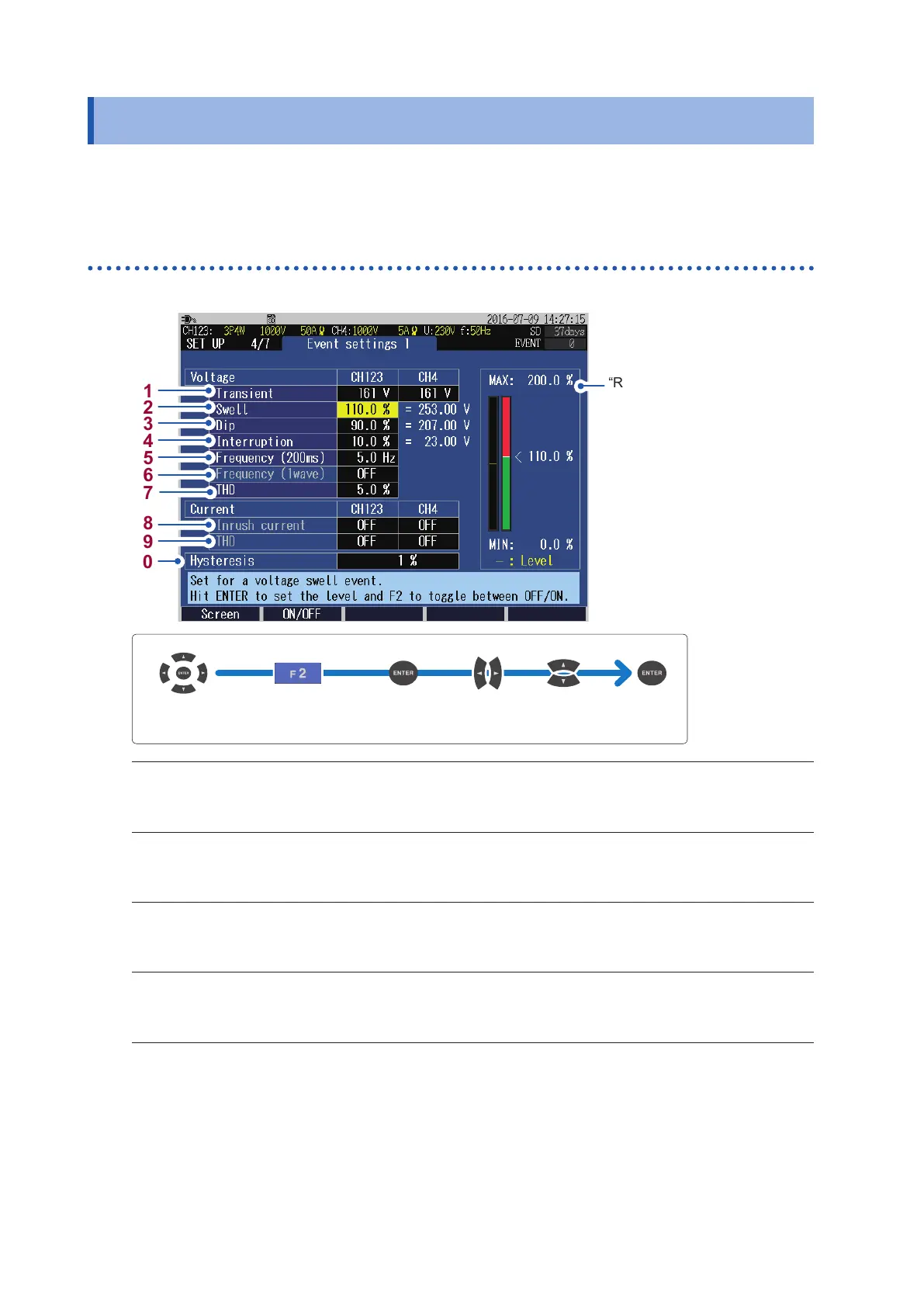

SET UP, Event Settings 1 screen
Press the [SET UP] key to display the SET UP, event settings 1 screen.
“Reference graph for setting
threshold values” (p. 73)
1
2
3
4
5
6
7
8
9
10
Switch between
ON and OFF
Move the digitMove the cursor Change
the value
1
*
1
Enables you to set the threshold value of the voltage transient.
OFF, 4 V to 2200 V
2
*
1,2
Enables you to set the threshold value of the voltage swell.
OFF, 0.0% to 200.0%
3
*
1,2
Enables you to set the threshold value of the voltage dip.
OFF, 0.0% to 100.0%
4
*
1,2
Enables you to set the threshold value of the interruption.
OFF, 0.0% to 100.0%
*1: The actual event threshold value is obtained by multiplying with the VT ratio.
*2: The threshold value is set in terms of % of the declared voltage Uref (declared input voltage Udin × VT
ratio).
