Event Settings

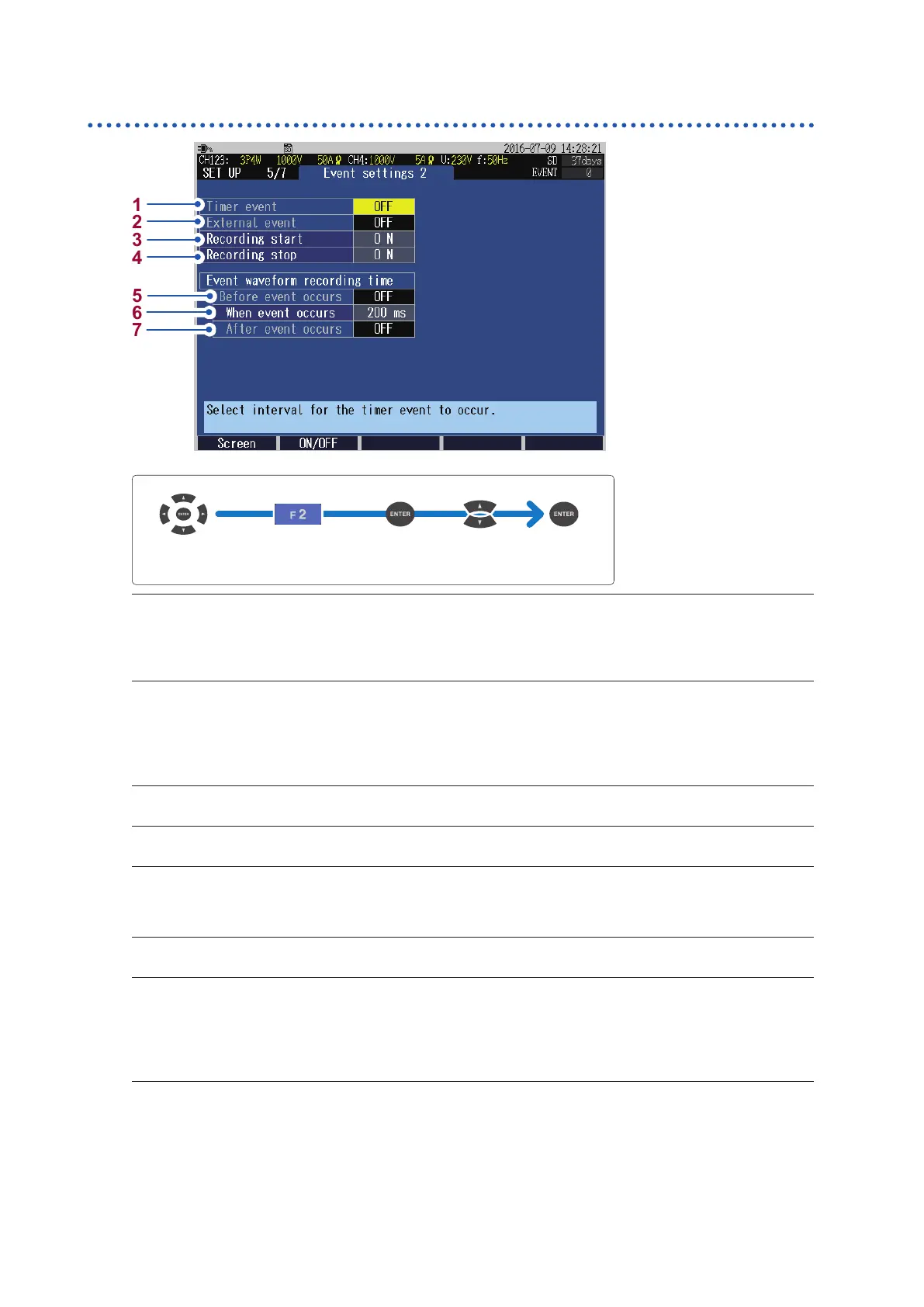

SET UP, Event Settings 2 screen
1
3
2
4
5
6
7
Switch between
ON and OFF
Change the valueMove the cursor
1
Enables you to select the timer event.
The timer events are recorded at the set intervals.
OFF, 1min, 2min, 5min, 10min, 15min, 30min, 1hour, 2hour
2
Select ON for using an external event.
External events occur at the time of short-circuiting the event input terminal (EVENT IN) or of the
pulse signal falling and they are recorded.
OFF, ON
3
The recording start event occurs when the recording starts.
4
The recording stop event occurs when the recording stops.
5
*
1
Enables you to select the event waveform recording time (before-event) before the event occurs.
OFF, 200ms, 1sec
6
The event waveform recording time when the event occurs is xed to 200 ms.
7
*
1
Enables you to select the event waveform recording time (after-event) after the event occurs.
Only the event which initially occurred is recorded.
If another event occurs during the after-event, the after-event of this another event cannot be stored.
OFF, 200ms, 400ms, 1sec, 5sec, 10sec
*1: The event OUT, timer, manual, recording start, and recording stop events are not recorded in the event
waveform recording of before-event and after-event. Only the event waveform of 200 ms, when the event
occurs, will be saved.
The event waveform is divided at intervals of 200 ms. When the after event is set to 1 sec, ve pieces,
which is obtained by dividing 1 sec by 200 ms, of the event waveform are saved.
If the before event or the after even set to exceeding 200ms, only the waveform recorded during 200 ms
can be observed with the instrument. To observe the entire length of the waveform, use the application
software PQ One, which is supplied with the instrument.
