Screen Conguration

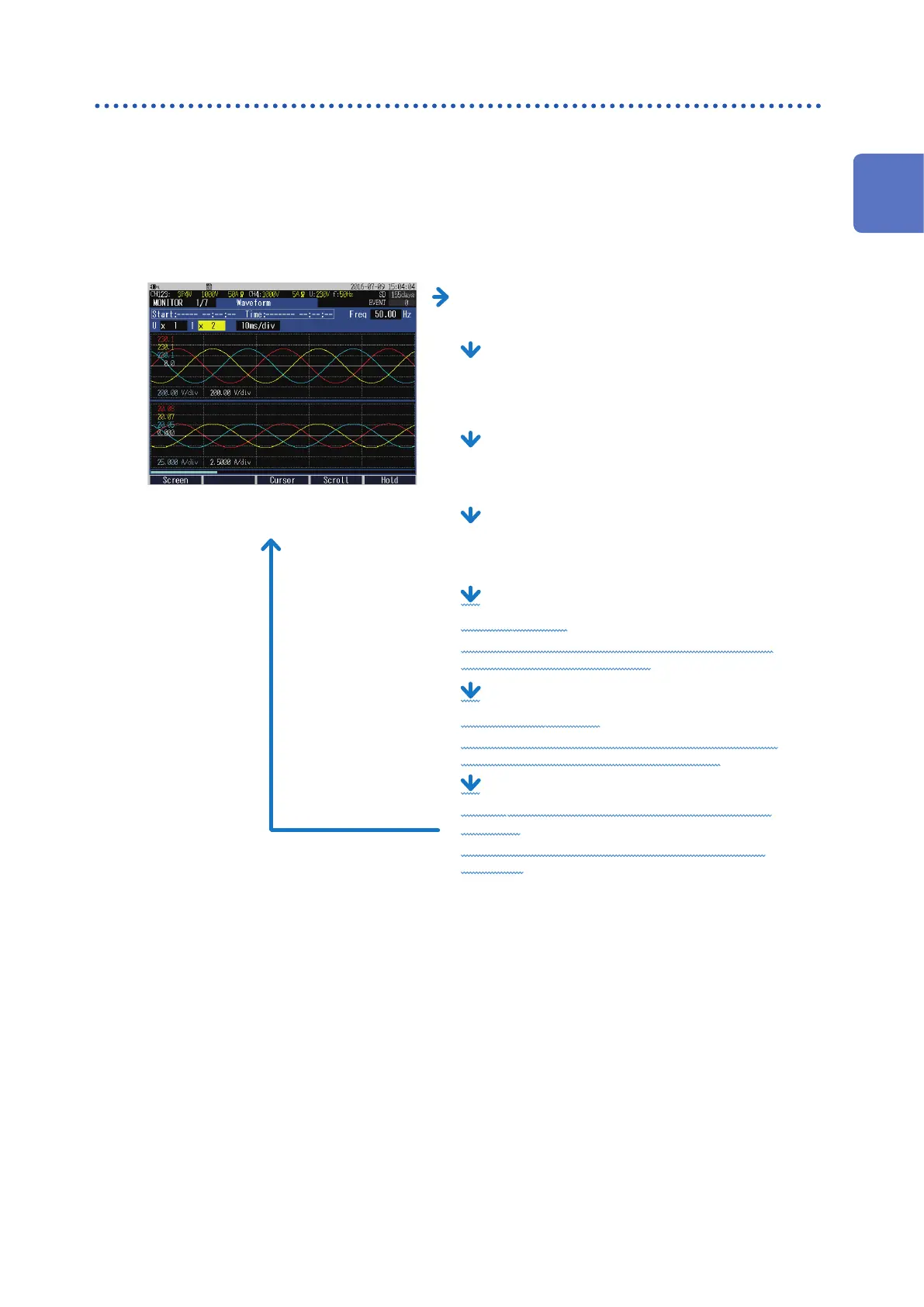

MONITOR screen
A screen that is used to monitor instantaneous values. This screen is used to view voltage and
current instantaneous waveforms, and the measured values.
Display/switch screen: [MONITOR] key
See “6 Verifying the Waveform, Measured Values (MONITOR Screen)” (p. 81).
Waveform screen
Voltage and current waveforms of CH1 to
CH4 are displayed.
Electric power screen
RMS voltage, RMS current, frequency, power, power
factor, active energy (consumption) and elapsed time are
displayed.
Electric energy screen
Electric energy, energy cost, start time, stop time,
elapsed time, power and power factor are displayed.
Voltage screen
Measured values related to voltage are displayed.
Current screen
Measured values related to current are displayed.
Vector screen
Phase relationship between voltage and current is
displayed in a vector diagram.
Harmonics screen
Harmonic current, harmonic voltage, and harmonic
power from 0 to 50th order are displayed.
Zoom screen (available after the rmware
update)
Enlarged view of 6 user-selected parameters are
available.
1
Overview
