55
Connecting Voltage Cords to Objects

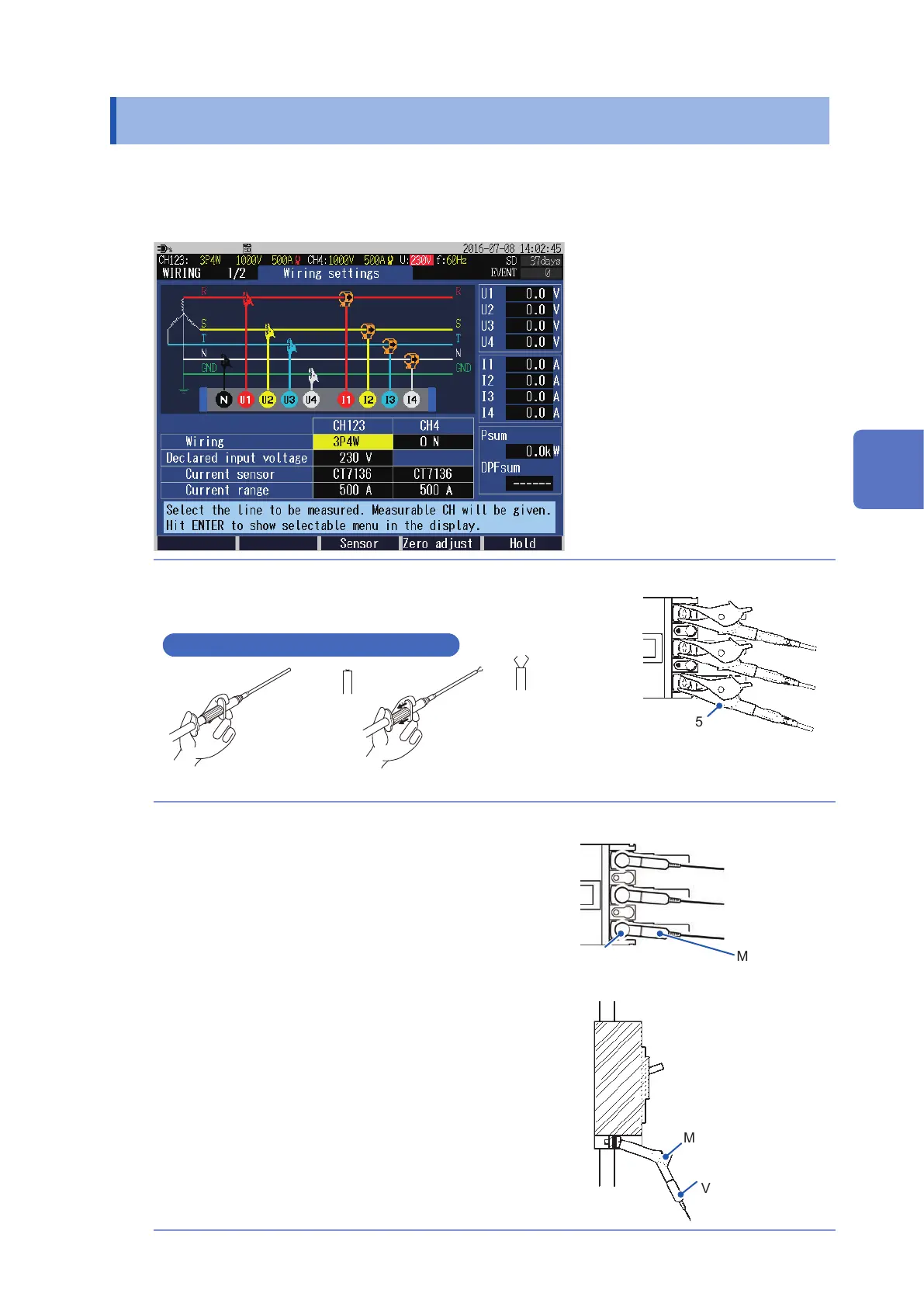

4.6 Connecting Voltage Cords to Objects
Be sure to read “Wiring” (p. 12).
Connect the voltage cords to the measuring objects while checking the WIRING, wiring settings
screen.
Use alligator clips or Model 9243 Grabber Clip.
Securely clip the cords to metal parts such as bus bars
and screws on the secondary side of the breaker.
Method to open and close Model 9243
Secondary side of breaker
Model L1000-05
Voltage Cord
Example: Alligator clip
Using Model 9804-01 (9804-02) Magnetic Adapter
Connect the magnetic adapter to the screws on the
secondary side of the breaker.
Secondary side of breaker
Model L1000-05
Voltage Cord
Model 9804-01, 02
Magnetic Adapter
The weight of the voltage cords may prevent you from
making a perpendicular connection between the magnetic
adapter and the head of the screw.
In this case, connect each cord such that it hangs off the
adapter in a manner that balances its weight. Check the
voltage values to verify that the connections have been
made securely.
* Optional, standard screws: M6 small pan head screws
Secondary side of breaker
Model 9804-01, 02
Magnetic Adapter
Model L1000-05
Voltage Cord
4
Wiring (WIRING Screen)
To Next Page
