145
RS-232C Communication Preparations

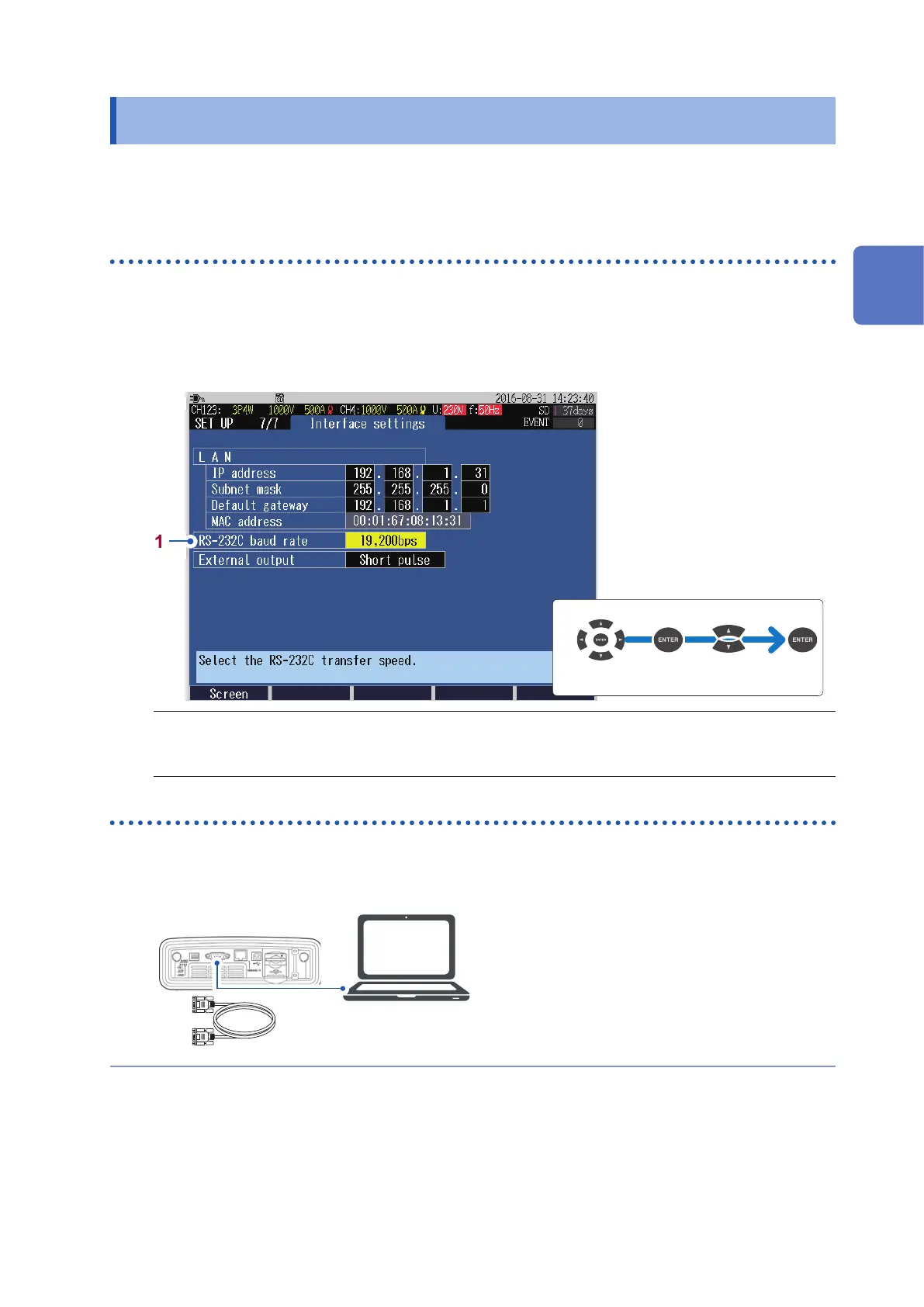

12.3 RS-232C Communication Preparations
To use RS-232C communications, you must perform the following tasks.
• Congure the settings of RS-232C on the instrument.
• Connect the instrument and a computer with a RS-232C cable (p. 174).
Settings (SET UP screen)
Be sure to read “Connecting the Instrument to an External Device” (p. 13).
1
Press the [SET UP] key to display the
SET UP, Interface settings screen.
2
Congure the settings of RS-232C
interface.
1
Move the cursor Select
1
Select the baud rate.
19,200bps, 38,400bps
Connection
1
Connect the instrument and computer
with the Model 9637 RS-232C Cable
(cross cable).
Model 9637 RS-232C Cable
(Optional)
2
Turn on the computer.
3
Turn on the instrument. (p. 44)
12
Communications (USB/LAN/RS-232C)
