Verifying the Waveform,
Measured Values (MONITOR
Screen)

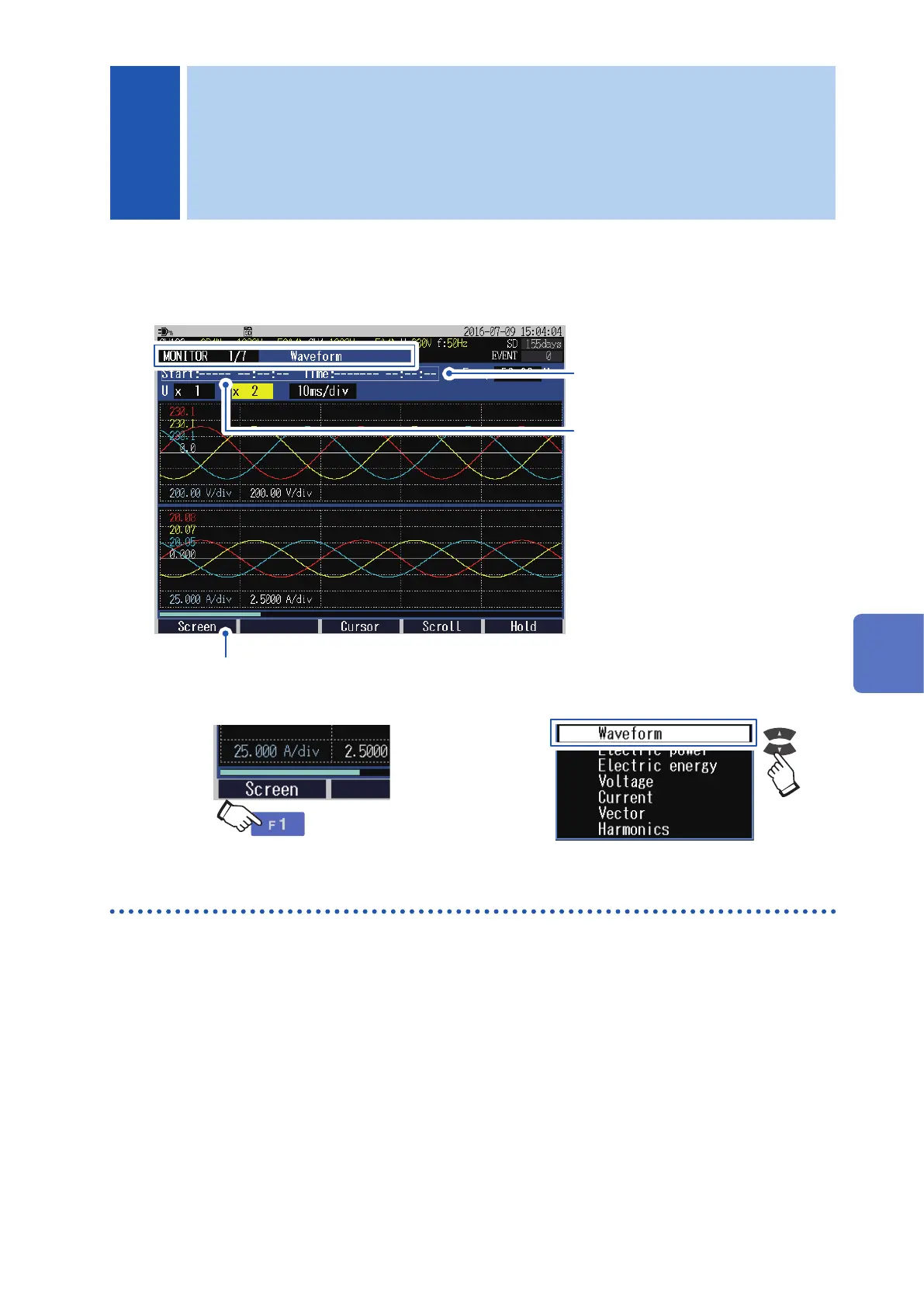

You can view the measured waveforms and measured values on the MONITOR screen.
Press the [MONITOR] key to display the MONITOR screen.
In addition to the [MONITOR] key, you can also switch to the MONITOR screen by using the [F1] (Screen)
key.
1 2
Recording start time and date
Elapsed time
Fixing the waveform display and measured values
Press the [F5] (Hold) key to x the waveform display and measured values.
Press the [F5] key again to cancel the xed waveform display and measured values.
• If a setting is changed while measured values and waveform display are being held, the hold will be
canceled.
• The time display is not xed.
6 Verifying the Waveform, Measured Values (MONITOR Screen)
6
Verifying the Waveform, Measured Values (MONITOR Screen)
