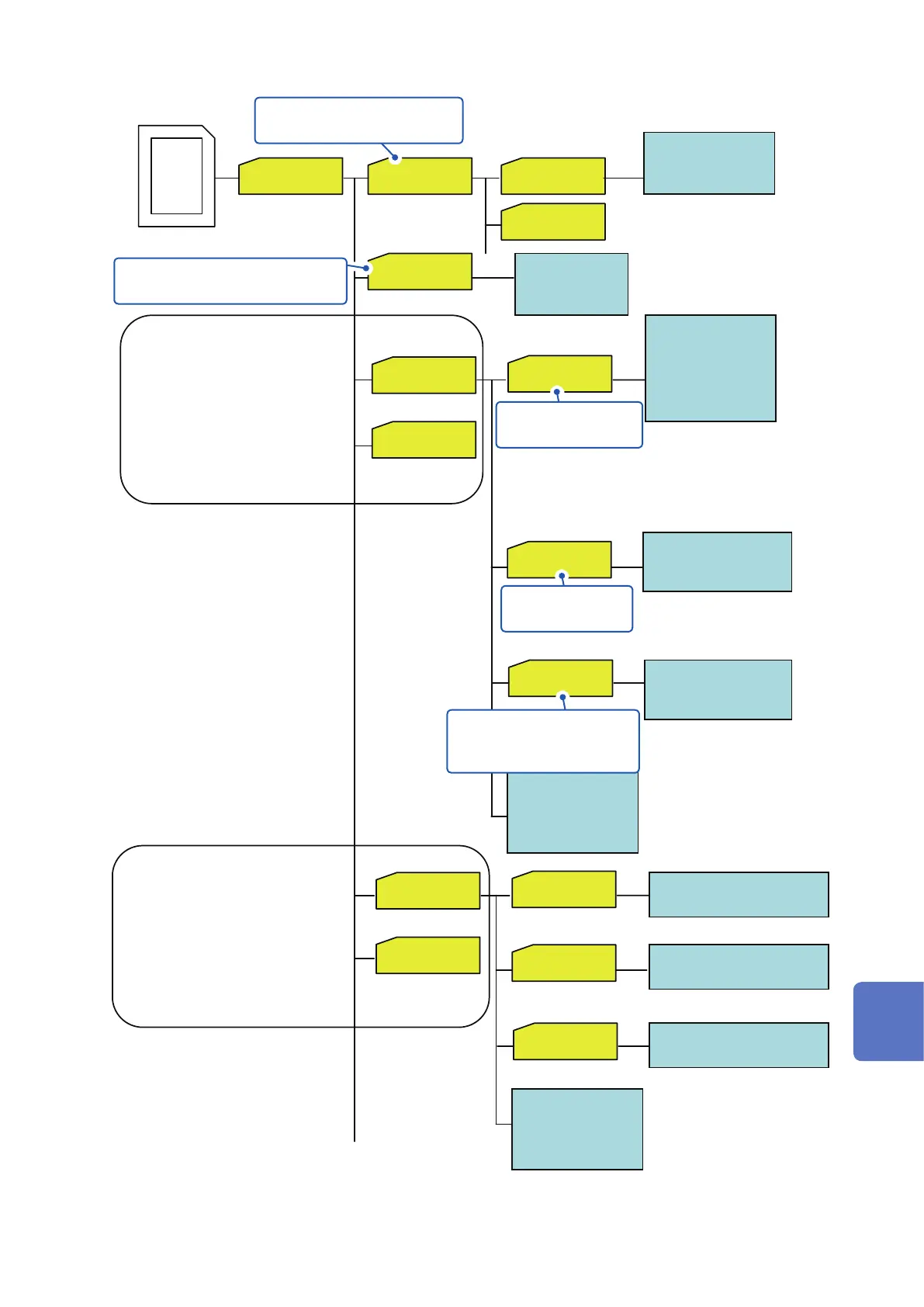

Folder and File Structure
SD
Up to 32 GB
Folder name: Date saved
File name: Time saved
Folders for measured data
(Automatic folder/ File name)
YYMMDD: Recording start date
00: Sequential number of the
day (00 to 99)
For repeat recording, folders are
created for each day.
Folders for measured data
(Random folder/ File name)
00: Sequential number (00 to 99)
For repeat recording, data
recorded for up to 100 days can
be stored because folders are
created at daily intervals.
File name: Snnnn.SET
“nnnn” shows sequential number
(0001 to 9999)
File name: Date/Time of output
Saved per recording interval (5
min or more)
File name: Statistical date
Same as the automatic
folder
Same as the automatic
folder
Same as the automatic
folder
*.EVT: Event data (all event data is saved)
First 4 digits of the number: Start event list number (0001 to 9999)
Last 2 digits of the number: Number of saved events (01 to 99)
*.WDU: Event trend data
*.SET: Setting data for
recording
*.EVL: Event list data
*.ITV: Trend record data
Note
†
†
If the le size exceeds 100 MB or the SD memory card is inserted or ejected, the le is divided.
(Up to 1000 les)
PQ3100
HARDCOPY
YYMMDD
…
S0001.SET
S0002.SET
…
…
YYMMDD.CNT
YYMMDD.CNT
…
YYMMDD00.SET
YYMMDD00.EVL
IT000.ITV
…
HIOKI00.SET
HIOKI00.EVL
IT000.ITV
…
EV000101.EVT
WD0001.WDU
EV000201.EVT
WD0002.WDU
…
YYMMDD
EVENT
AUTOCOPY
COUNT
EVENT
HIOKI00
HIOKI01
AUTOCOPY
COUNT
SETTING
YYMMDD00
YYMMDD01
Folder for saving screen copies
manually
Folder for saving setting data les
manually
Folder for saving
events
Automatic screen
copy folder
Statistics data folder
(Available after the rmware
update)
