Hioki PQ3100 - Component Identification: Upper Section

22

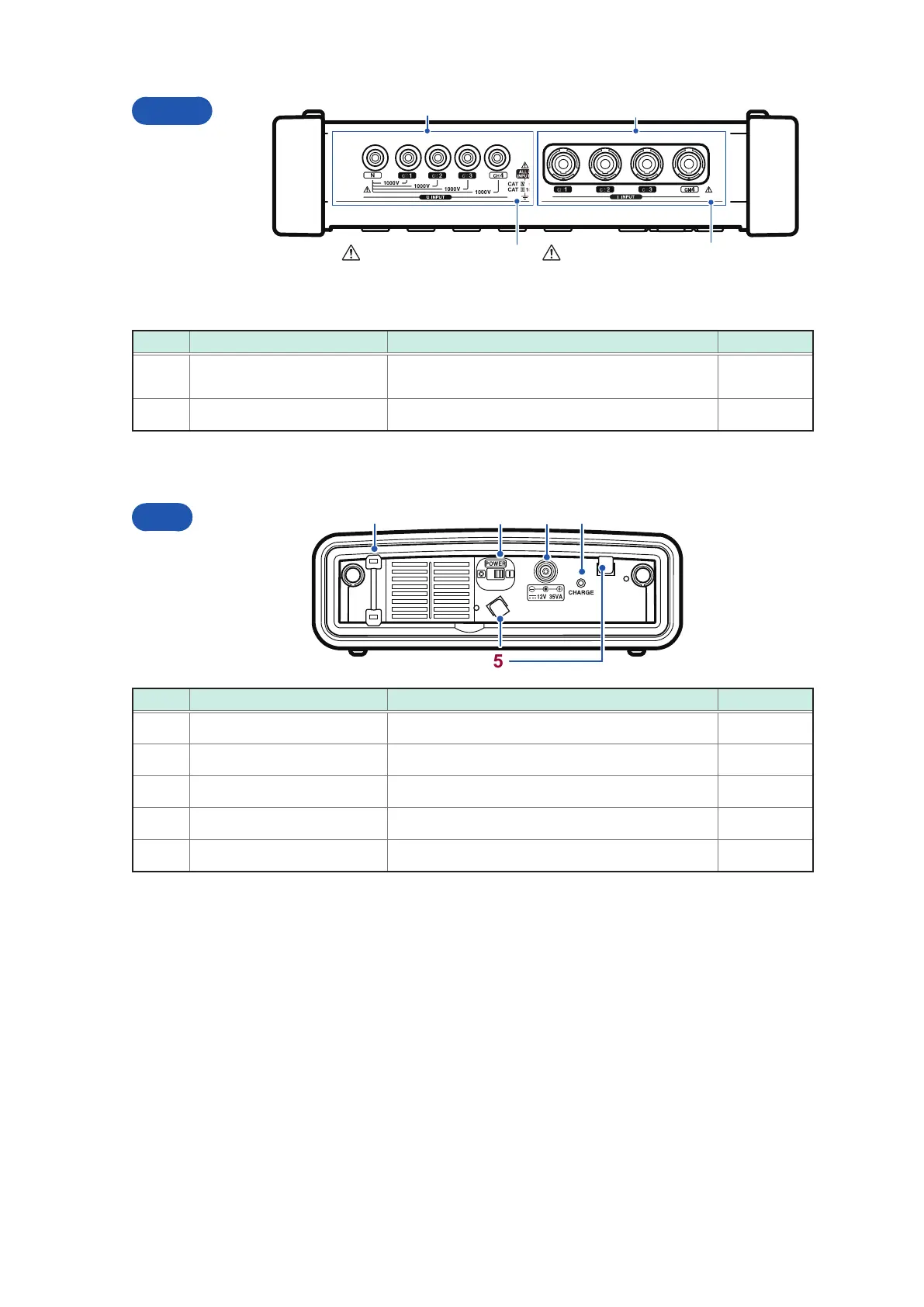

Names and Functions of Parts
Upper
1
“4.3 Connecting Voltage
Cords to Instrument”
(p. 51)
“4.4 Connecting Current
Sensors and Conguring
Current Sensor Settings”
(p. 52)
2
No. Name Description Reference
1
Voltage input terminal
Connects supplied L1000-05 voltage cord to one of
the jacks.
p. 51
2
Current input terminal Connects optional current sensors. p. 52
Left
3 4
5
21
No. Name Description Reference
1
Strap eyelet Attaches the strap. p. 39
2
POWER Switch Turns the instrument on and off. p. 44
3
AC adapter connection jack Connects the AC adapter. p. 43
4
CHARGE LED Lights up when the Z1003 Battery Pack is charging. p. 38
5
Hook for AC adapter Loops the AC adapter cord through these hooks. p. 43
