Hold Function
5.3 Hold Function
By pressing the HOLD key, you can stop display refreshing for all measured values and freeze the
on-screen data at the time when the key was pressed. By switching screens in that state, you can
view other measured data at the time when the on-screen data was frozen.
In addition, the same operation as the HOLD key can be performed using the HOLD external
control signal.
See “8.2 Controlling Integration with External Signals” (p. 153).
During hold operation, the HOLD key is lit up in red, and the [HOLD] icon appears in the screen’s
operating status indicator.
See “1.4 Basic Operation (Screen Display and Layout)” (p. 20).
Hold starts.
(Lit up in red)

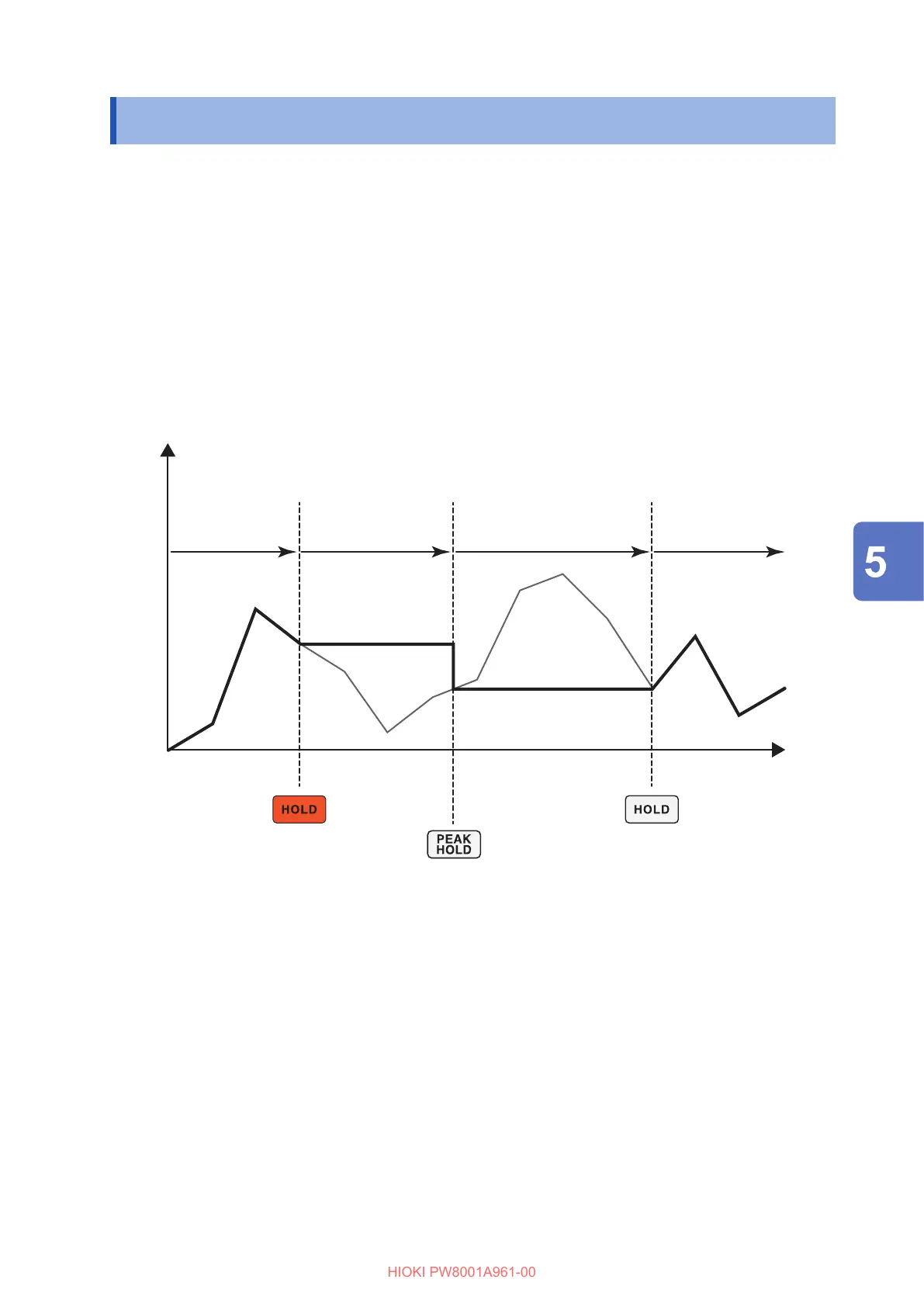

Display is refreshed and hold starts.
Displayed value
Internally-retained
measured value
Hold HoldRefresh Refresh
Display value
Time
Hold is canceled.
Each time PEAK HOLD is pressed, measured values at that point in time are displayed.
Measurement, calculations, and averaging continue internally.
Canceling the hold state
Press the HOLD key again during hold operation to cancel the hold state.
