Waveform/Analog Output (Waveform and D/A Output Option)
Selecting output parameters
Up to 20 output parameters can be selected for D/A output.

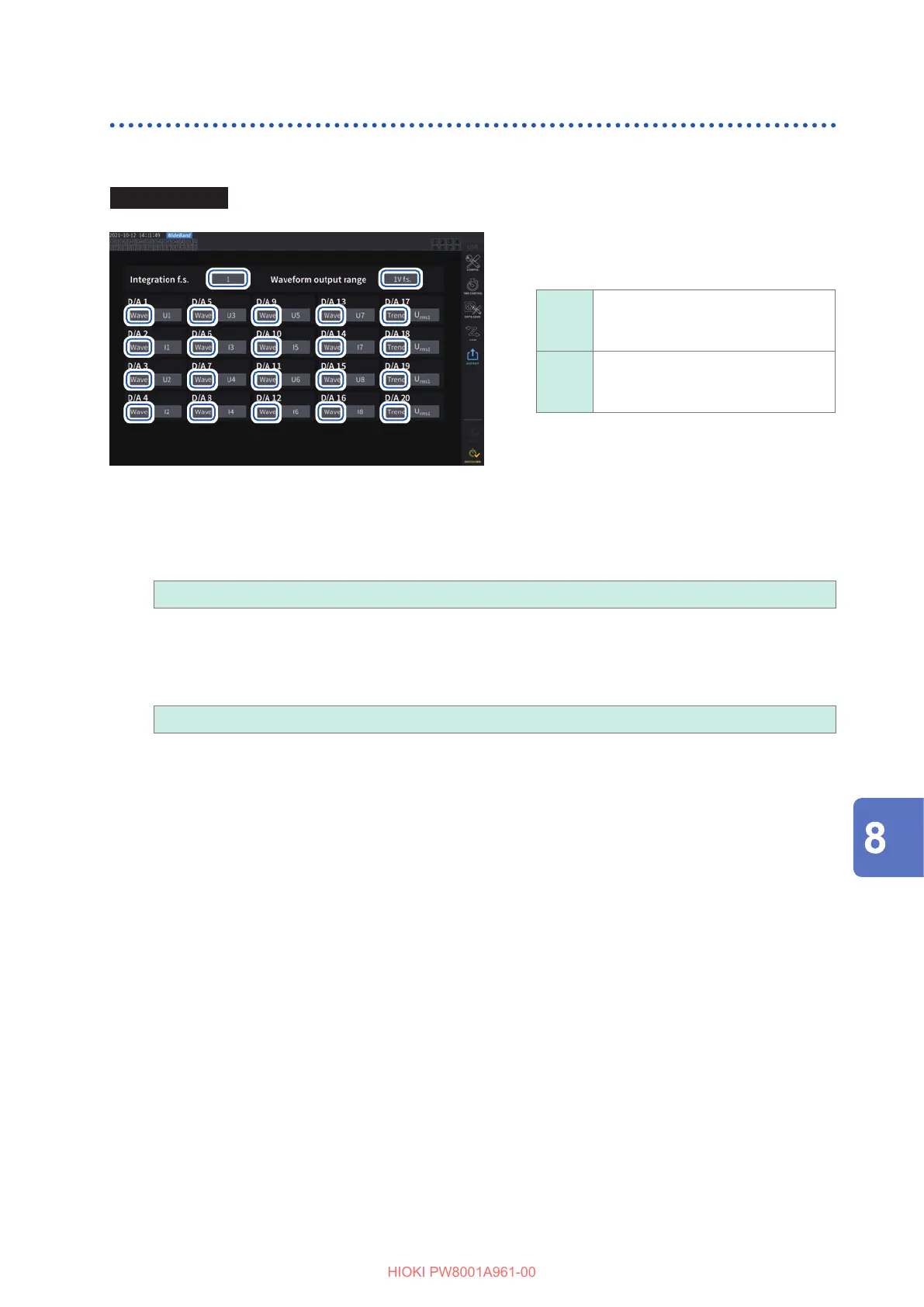

Display screen [SYSTEM] > [OUTPUT]
11
22 33
1
Choose between the two output types:
[Trend] and [Wave] for each channel.
Trend
Analog output
Select from among the on-screen
measured items.
Wave
Waveform output
Select waveforms to be outputted
from the list.
(When outputting integrated values during analog output)
2
Tap the [Integration f.s.] box, then select the full scale value from the list.
1/10, 1/2, 1, 5, 10, 50, 100, 500, 1000, 5000, 10000
3
Tap the [Waveform output range] box, then set the output voltage value for full scale input
during waveform output.
1 V f.s., 2 V f.s.
See “Output terminal” (p. 143).
The instrument continuously outputs signals of selected items no matter what it displays, the
Measurement, Input Settings, System Settings, and the File Operation screens.
