242

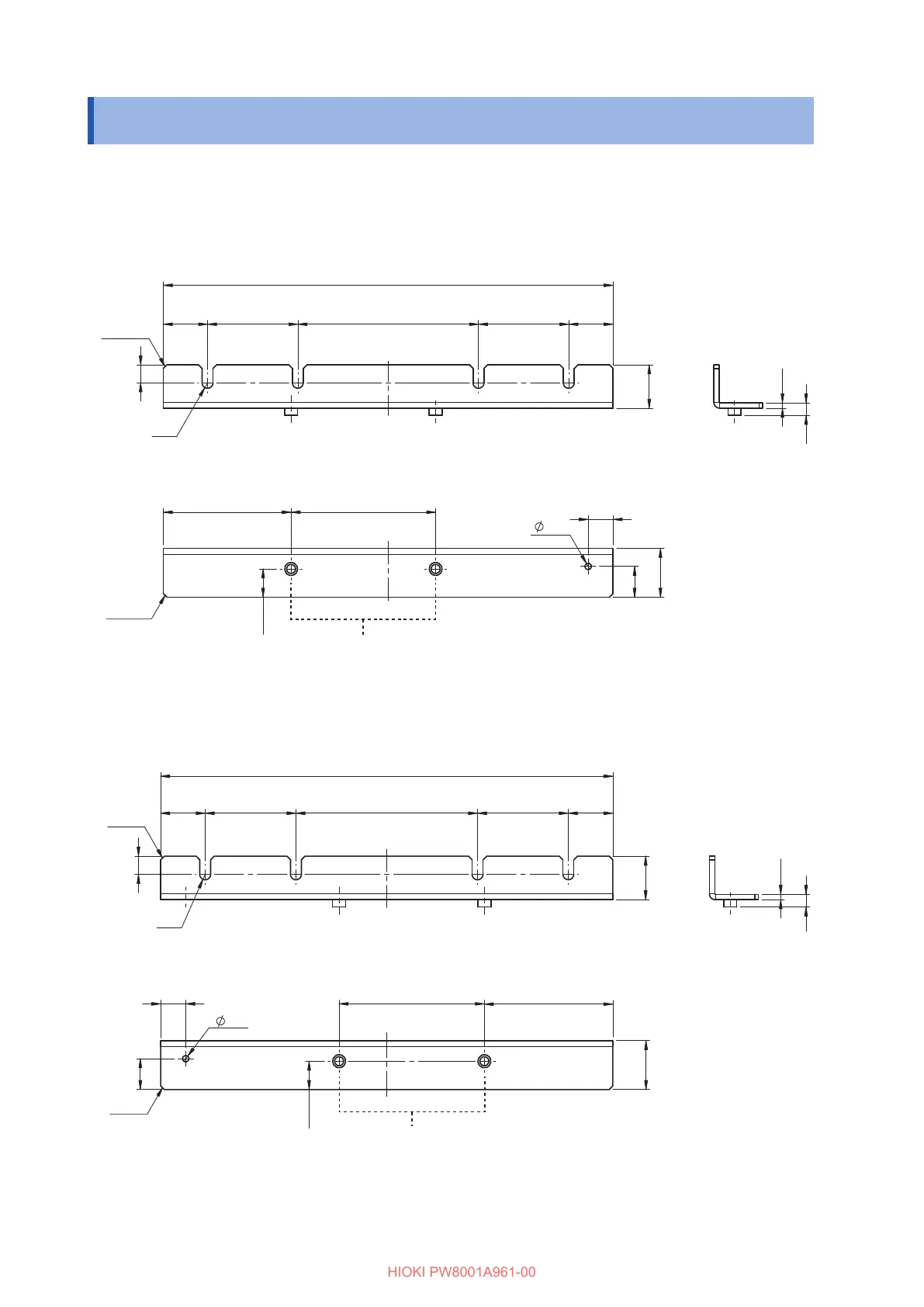

Rackmount Fittings
11.7 Rackmount Fittings
The instrument can be installed using rackmount ttings.
JIS-compliant rackmount tting (for right side)
Material: A5052
Thickness: t3
C
L
C
L
50
24.5
249
10×C2
50
10
R3
24
100 (24.5)
7
(3)
13.8
80 70.75
3.5
2×C2
27
15.6
17
2
×
M5 spacer (reference: Fabace FK-M5-7)
(Unit: mm)
JIS-compliant rackmount tting (for left side)
Material: A5052
Thickness: t3
7
(3)
C
L
(24.5)
R3
24
249
24.5 50 50 100
10
10×C2
C
L
17
13.8
27
70.75 80
15.6
3.5
2×C2
2
×
M5 spacer (reference: Fabace FK-M5-7)
(Unit: mm)
HIOKI PW8001A961-00
