Hioki PW8001-01 User Manual

192
Specications of Input, Output, and Measurement
Specications of waveform and D/A output (optional)
Number of output
channels
20 channels
Output terminal
prole
D-sub 25-pin connector
×
1
Output details Switchable between waveform output and analog output (select from basic measurement
items)
D/A conversion
resolution
16-bit (polarity + 15 bits)
Output refresh
interval
Waveform output: 1 MHz
Analog output: 10 ms, 50 ms, 200 ms
(depending on data refresh intervals of selected items)
Output voltage Waveform output: Switchable between
±
2 V f.s. and
±
1 V f.s., crest factor: 2.5 or more
The settings a󰀨ect all channels.
Analog output:
±
5 V DC f.s. (approx. up to
±
12 V DC)
Output resistance 100
Ω ±
5
Ω
Output accuracy Waveform output: Add
±
0.5% f.s. to measurement accuracy with the
±
2 V f.s. setting.
Add
±
1.0% f.s. to measurement accuracy at the
±
1 V f.s. setting.
Specied assuming DC to 50 kHz output
Analog output: Add
±
0.2% f.s. to the measurement accuracy of output measurement
items (DC level).
Temperature
coe󰀩cient
±
0.05% f.s. per degree centigrade

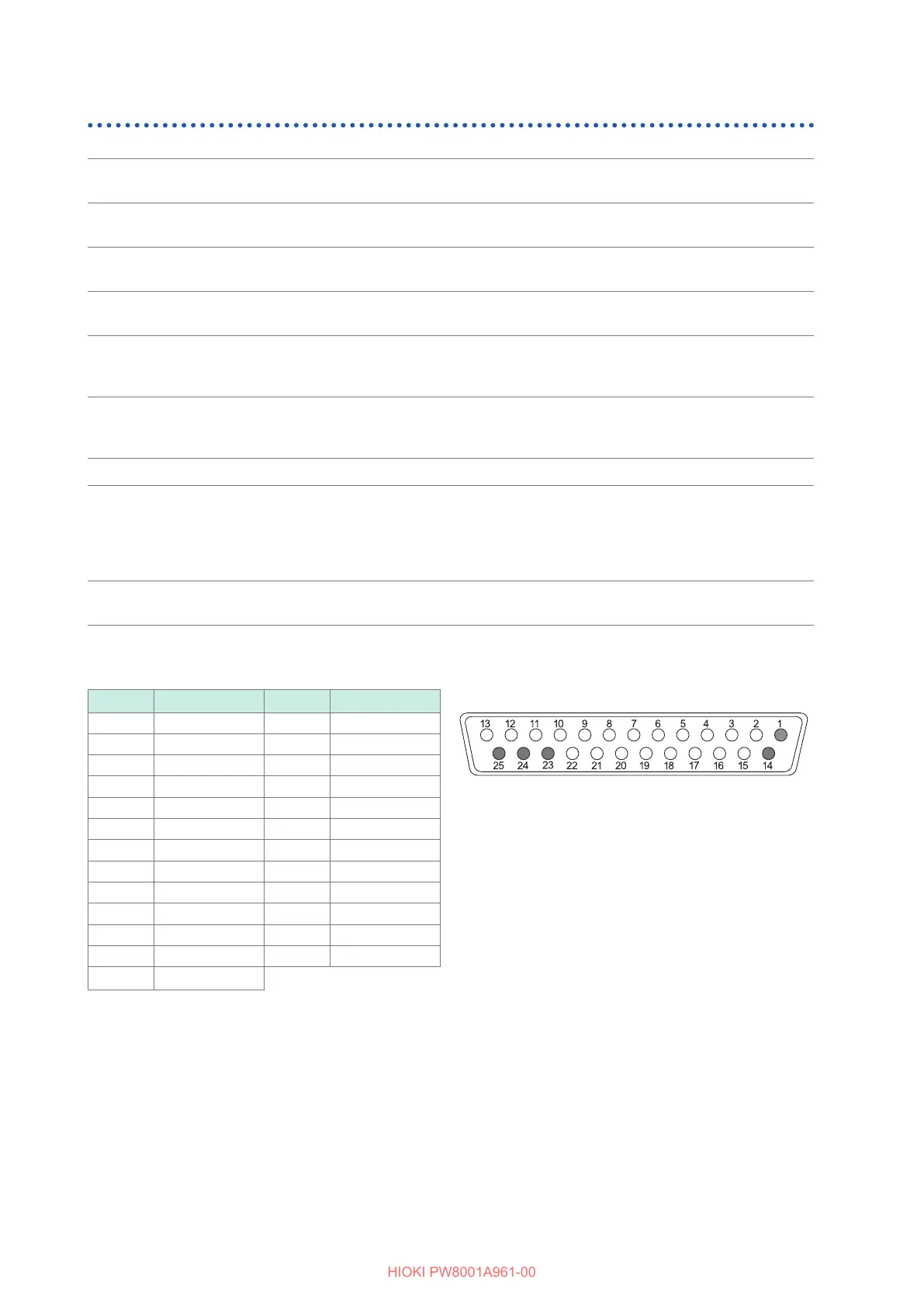

Pin assignment
Pin no. Output Pin no. Output
1 GND 14 GND
2 D/A1 15 D/A13
3 D/A2 16 D/A14
4 D/A3 17 D/A15
5 D/A4 18 D/A16
6 D/A5 19 D/A17
7 D/A6 20 D/A18
8 D/A7 21 D/A19
9 D/A8 22 D/A20
10 D/A9 23 GND
11 D/A10 24 GND
12 D/A11 25 GND
13 D/A12
HIOKI PW8001A961-00
