Hioki PW8001-01 User Manual

65
Integrating Current and Power
Displaying integrated measured values
The instrument can simultaneously integrates the current (I) and active power (P), and displays
positive, negative, and total values.

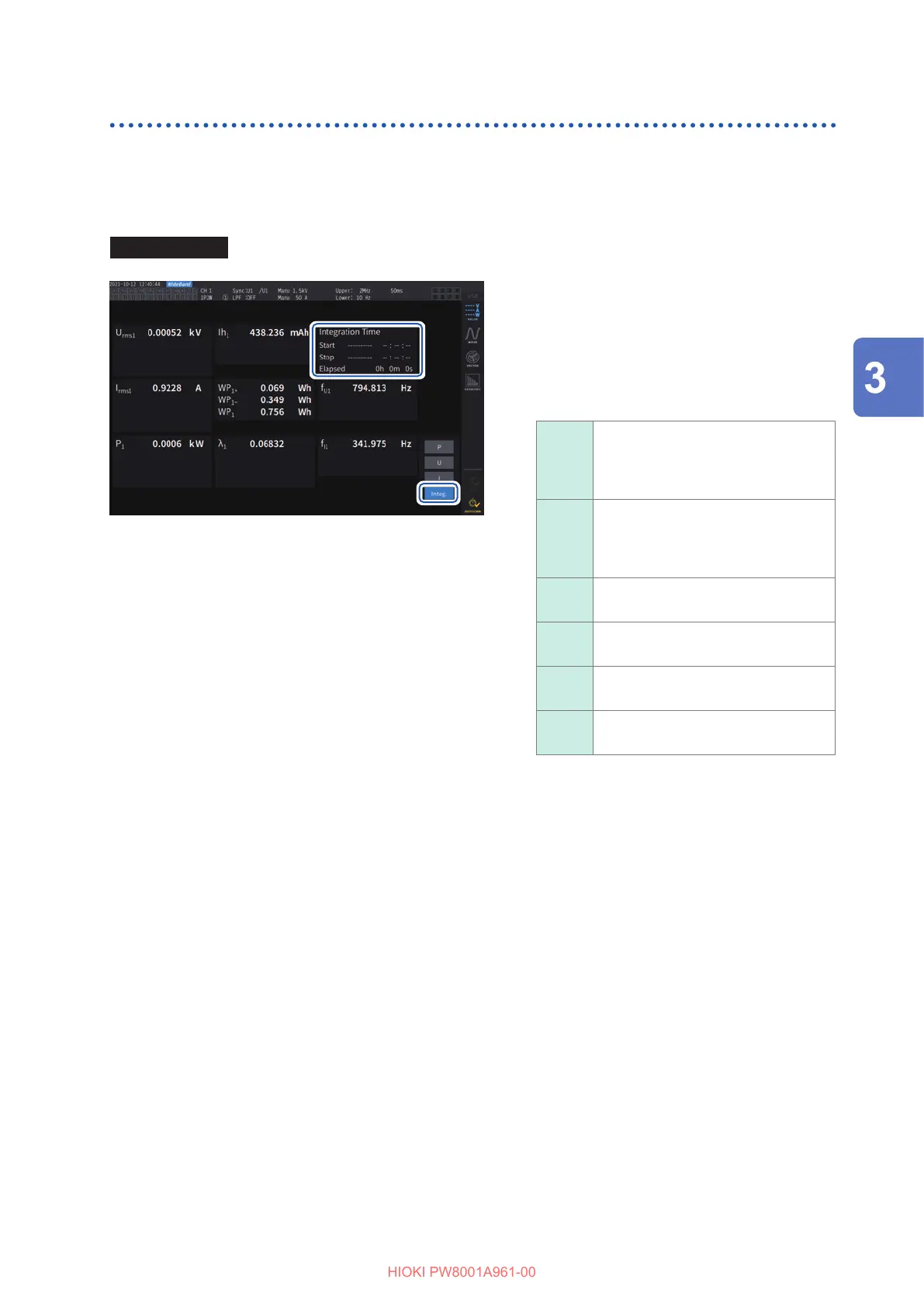

Displaying integration information
Display screen [MEAS] > [VALUE] > [BASIC]
11
1
Tap [Integ.].
2
Switch the displayed channel using the
CH keys for channel selection.
The displayed channel will change each time
the

CH

keys are pressed.
Ih1+
Integrated positive current value of
Ch. 1
(displayed only when the integration
mode is DC)
Ih1−
Integrated negative current value of
Ch. 1
(displayed only when the integration
mode is DC)
Ih1
Sum of integrated current values of
Ch. 1
WP1+
Integrated positive active power
value of Ch. 1
WP1−
Integrated negative active power
value of Ch. 1
WP1
Sum of integrated active power
values of Ch. 1
When the integration control is set to [All Channel],
the [Integration Time] eld displays the integration
start time, integration stop time, and elapsed time
common to all wiring congurations.
When the integration control is set to [Each Wiring],
it displays the integration start time, integration stop
time, and elapsed time of the wiring conguration
selected using the

CH

keys.
• The parameters that can be integrated vary with the wiring mode and the integration mode.
See “2.5 Setting Wiring Mode and Conguring Current Sensor Settings” (p. 41) and “Integration
mode” (p. 69).
• This information can also be selected and displayed on the CUSTOM screen.
See “3.1 Displaying Measured Values” (p. 51).
Displaying Power Numerically
HIOKI PW8001A961-00
