64
Integrating Current and Power
3.3 Integrating Current and Power
Integration control setting
There are two types of integration measurement available: integration for all wiring congurations,
which controls all installed channels at once, and integration by wiring conguration, which controls
each set wiring conguration.
When you wish to control the integration independently for each set wiring conguration, use the
function of integration by wiring conguration.
By selecting buttons displayed on the screen, you can change the wiring conguration to be
controlled, and set the integration start time, stop time, and timer setup for each wiring conguration
to control the time.

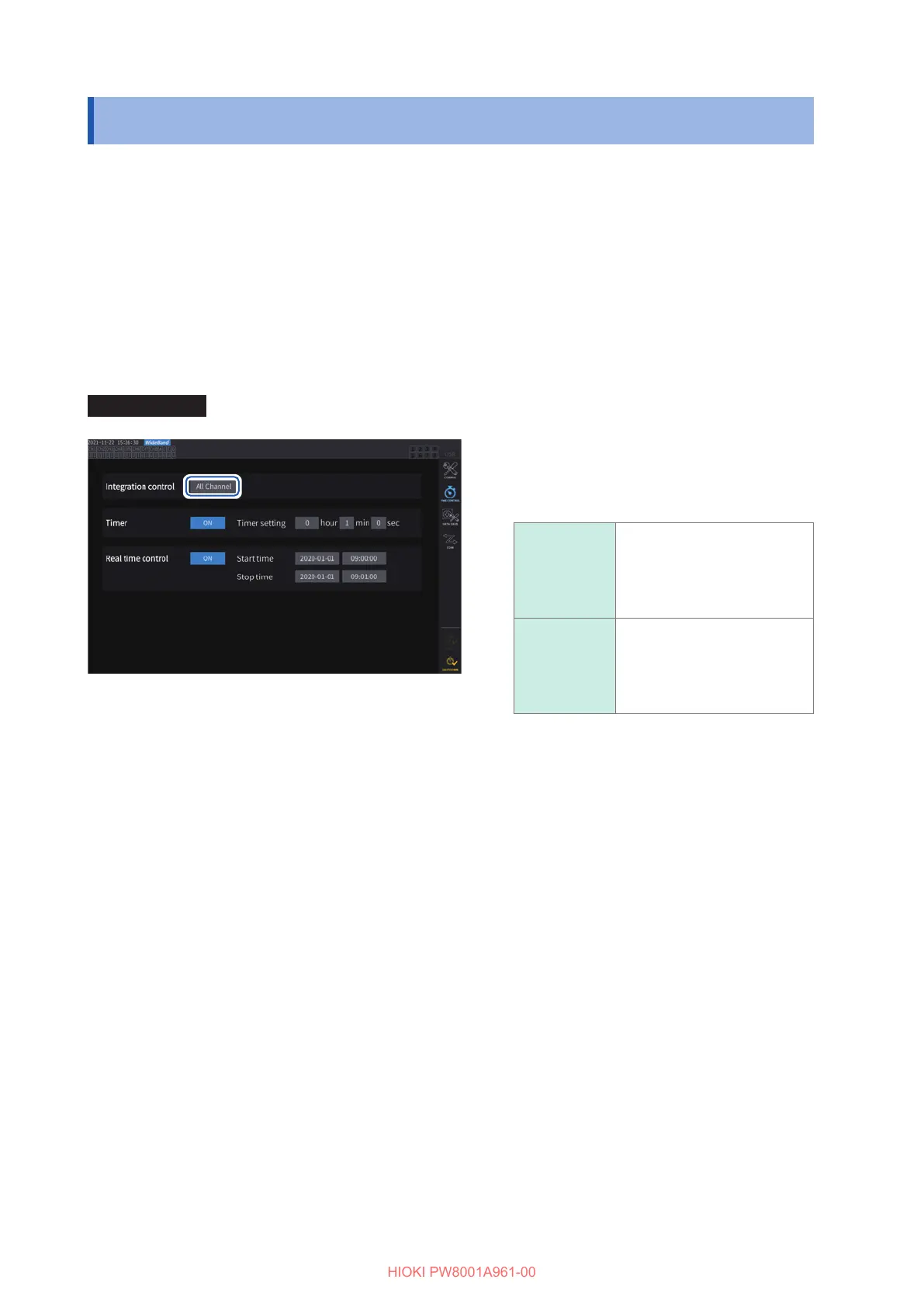

Display screen [SYSTEM] > [TIME CONTROL]
11
1
Tap the [Integration control] box to
select an integration control setting
from the list.
All Channel
(All wiring-conguration
integration)
Controls integration with the
same timing for all wiring
congurations.
Each Wiring
(Each wiring-conguration
integration)
Controls integration with an
independent timing for each
set wiring conguration.
HIOKI PW8001A961-00
