82
Motor Measurement (Motor Analysis-Equipped Model)
Displaying measured motor values

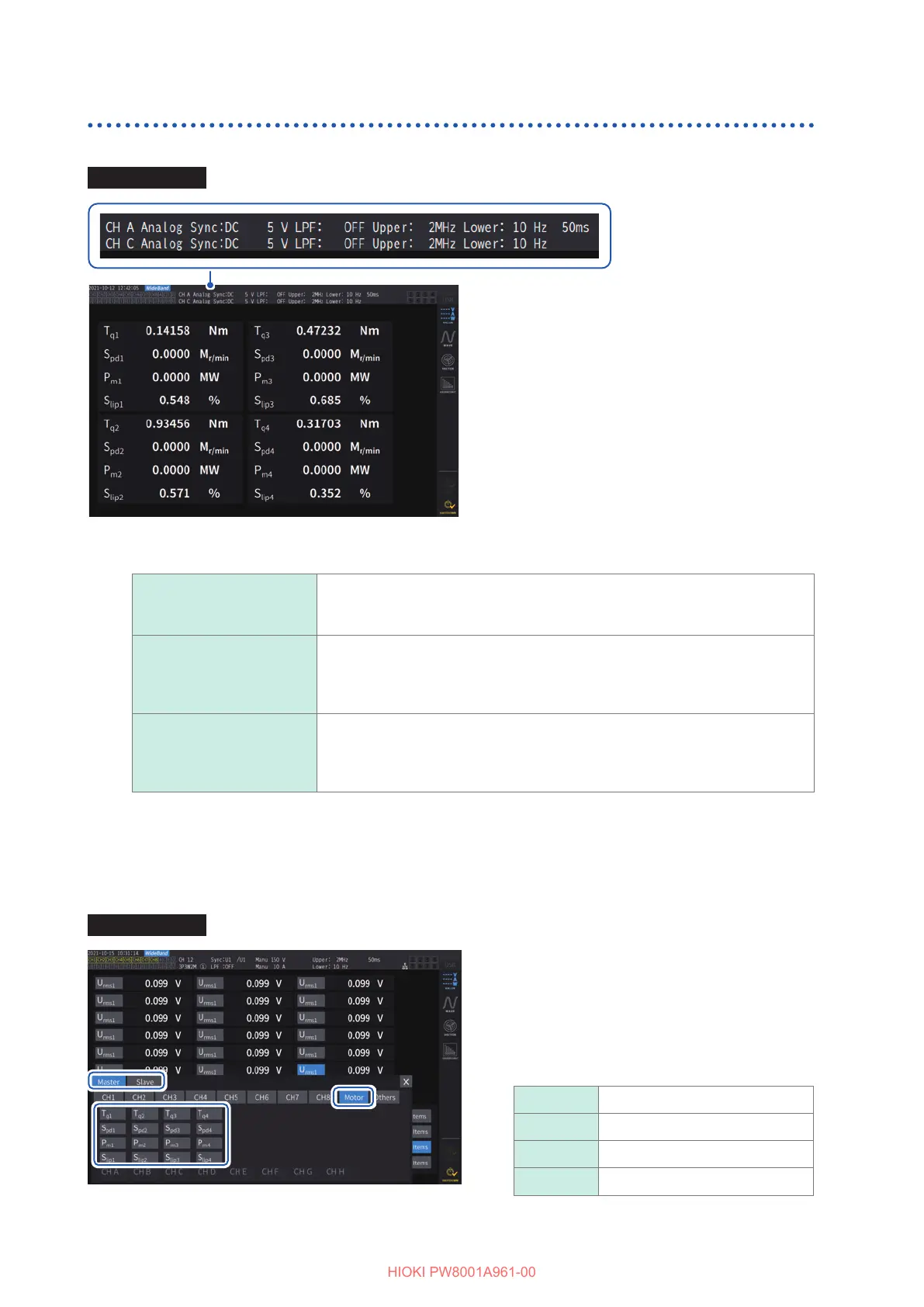

Displaying measured motor values on the [BASIC] screen
Display screen [MEAS] > [VALUE] > [BASIC]
1
Press the CH keys for channel
selection to switch the display to [A-D]
or [E-H].
The displayed channel will change each time
the
CH
keys are pressed.
Regardless whether [A-D] or [E-H] is selected,
all measured motor values that can be
displayed according to the settings will be
displayed.
When [A-D] is displayed, the following displays will appear at the top of the screen.
Input of Ch. A and Ch. C
The top row indicates the input settings for [CH A], and the bottom row
indicates that for [CH C].
[Analog], [Freq], or [Pulse] is displayed.
Synchronization source
for motor input
Displays the source settings that determine the period (between zero-crossing
points) that serves as the basis for measurement.
Depending on the connection setting of the motor analysis option, the sources
will be displayed in the top and bottom rows.
Filter settings
The top row indicates the range and lter for [CH A], and the bottom row
indicates those for [CH C].
For the [Analog] setting, the range and lter setting values will be displayed.
For the [Freq] and [Pulse] settings, the lter setting values will be displayed.
When the channel display is set to [E-H], Ch. A and Ch. C in the table above should read Ch. E and Ch. H,
respectively.
Displaying measured motor values on the [CUSTOM] screen
Display screen [MEAS] > [VALUE] > [BASIC]
11
22
33
1
Choose between [Master] (master unit)
parameters and [Slave] (subordinate
units) parameters.
2
Tap [Motor].
3
Select the parameter to display.
Tq Torque value
Spd RPM
Pm Motor power
Slip Slip
To Next Page
