Measuring Power
Low-pass lter (LPF)
The instrument provides a low-pass lter function to limit the frequency band.
This lter can eliminate frequency components and unnecessary external noise components that
exceed the set frequency. Normally, you should disable the low-pass lter during measurement.

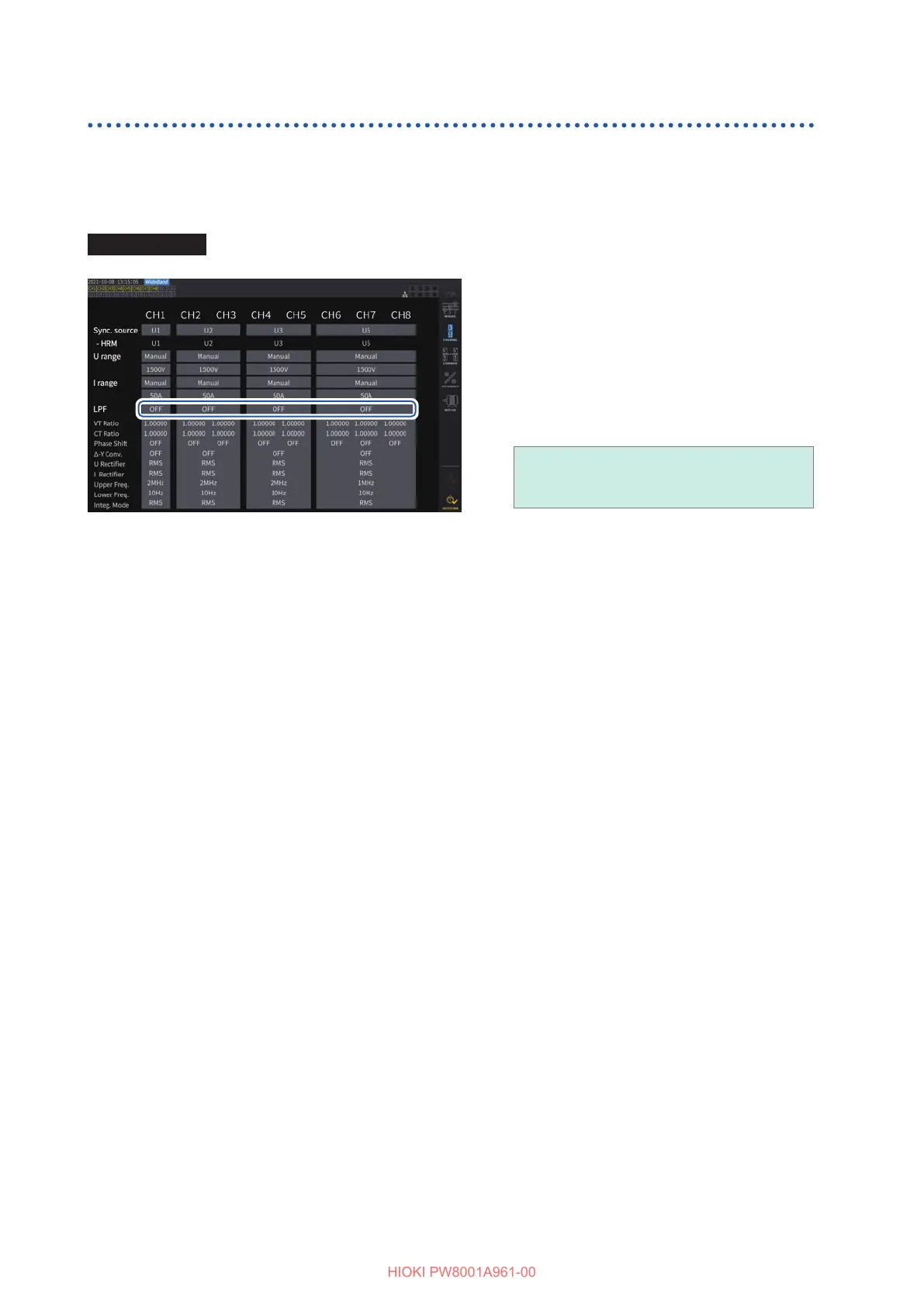

Display screen [INPUT] > [CHANNEL]
11
1
Tap the [LPF] box of the wiring
conguration you wish to set, and
select a low-pass lter (LPF) from the
list.
This can be set for each wiring conguration.
Swipe the touchscreen to scroll the list, then
select the cuto󰀨 frequency for other wiring
congurations.
500 Hz, 1 kHz, 5 kHz, 10 kHz, 50 kHz,
100 kHz, 500 kHz, 2 MHz (selectable for the
U7005 only), OFF
The set low-pass lter will be displayed by
the [LPF] setting indicator at the top of the
Measurement screen.
See “Measurement screen” (p. 24).
