Part Names and Functions
1.3 Part Names and Functions

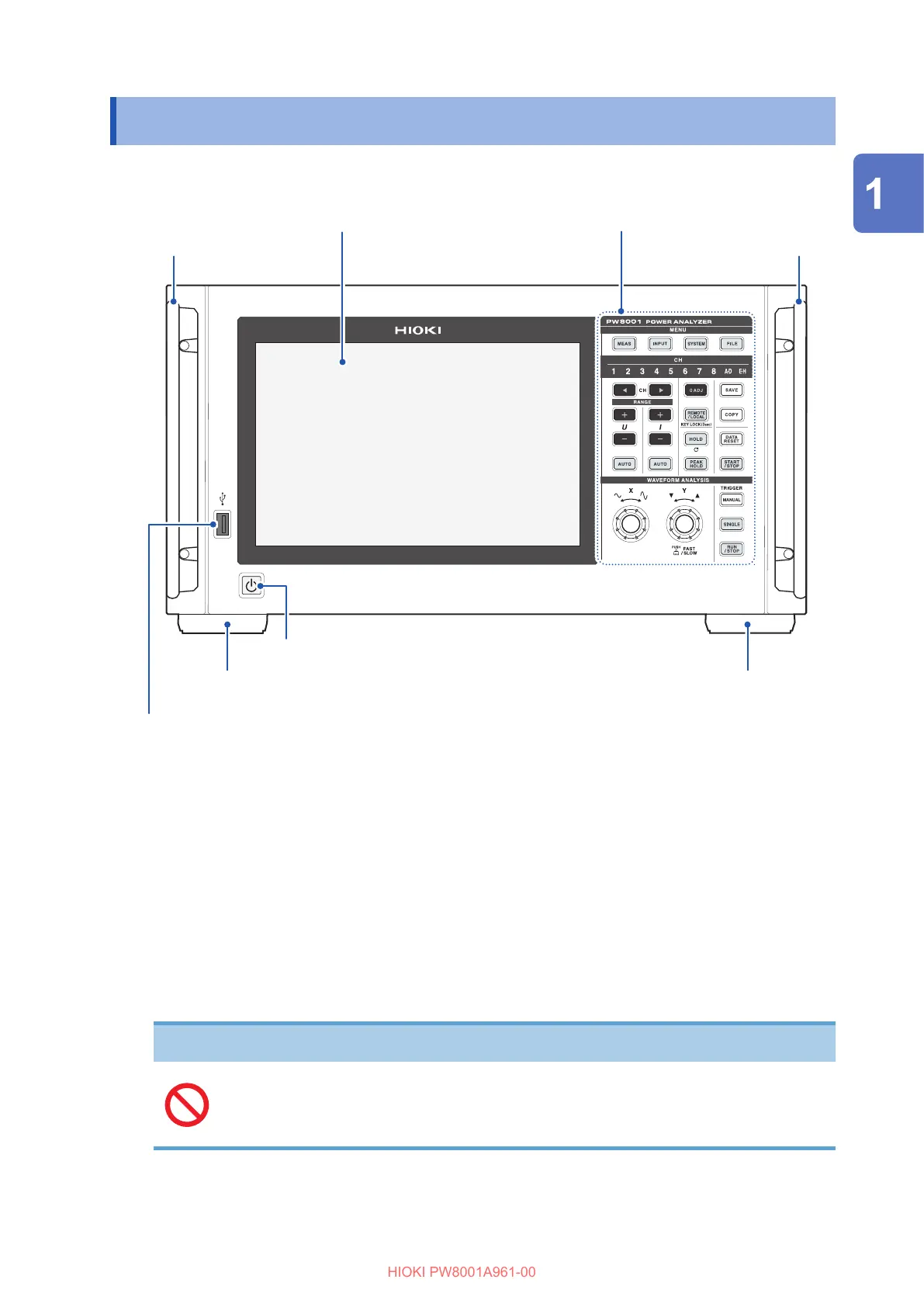

Front
Display area Key operation area (p. 16)
Handle
Power key (p. 39)
USB connector (p. 119)
Connect a USB ash drive to save various types of data, including measured data, setting details, and
screenshots.
The connector cannot be used with any other devices, including a mouse and a keyboard.
Foot (stand)Foot (stand)
Handle
Engaging key lock
Press the REMOTE/LOCAL key for 3 s to lock the key operations.
Both key operation and touchscreen operation are entirely disabled while the key lock function is
engaged, except key operation used to cancel the key lock state. The key lock state will persist
even if the instrument is cycled.
Handling the touchscreen
NOTICE
Do not press the touchscreen too hard.
Do not use hard or sharp objects to operate the touchscreen.
Doing so could damage the instrument.
