Basic Operation (Screen Display and Layout)
Measurement screen

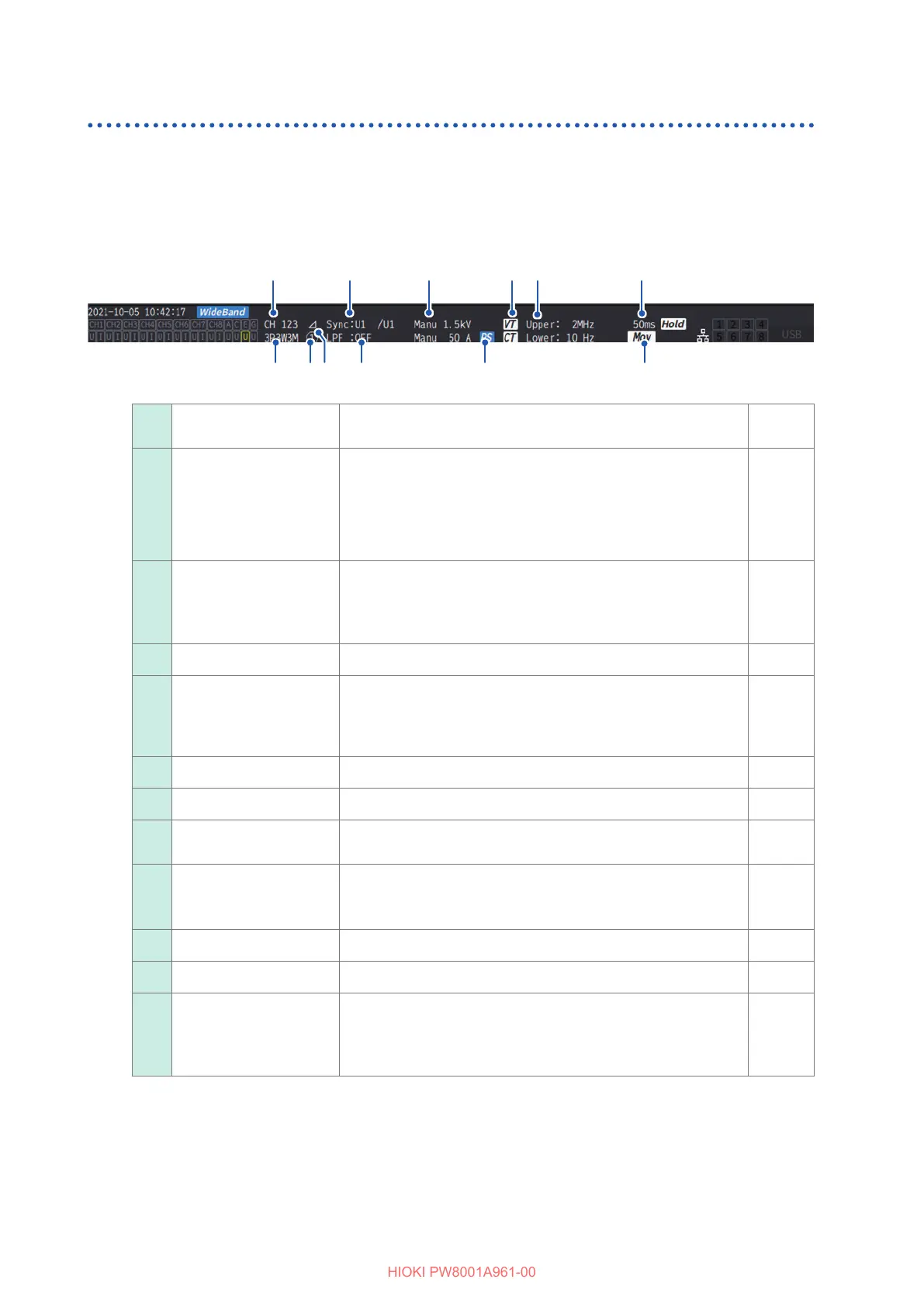

The following is an example of the Measurement screen. Actual screens vary depending on the
instrument’s settings.
This section describes contents shown only on the Measurement screen. This area is called the
setting indicators.
77 88
665511 22 33 44
1111 1212101099
11
Combined channels
Displays channels that have been combined in the same wiring
conguration.
p. 41
22
Synchronization
source
Displays the setting for the source that determines the period
(between zero-crossing points) that serves as the basis for
measurement.
Left: Synchronization source for the basic measurement items
Right: Synchronization source for the harmonic measurement
items
p. 58
33
Switching ranges
The top row indicates the voltage setting, while the bottom row
indicates the current setting.
[Auto]: Auto-ranging function enabled
[Manu]: Auto-ranging function disabled
p. 54
44
Scaling Shown when the VT ratios and CT ratios have been set. p. 63
55
Measurement upper
frequency limit
Measurement lower
frequency limit
[Upper]: Measurement upper frequency limit setting
[Lower]: Measurement lower frequency limit setting
p. 61
66
Data refresh interval Displays the data refresh interval setting. p. 57
77
Wiring mode Displays wiring conguration settings. p. 41
88
Current sensor
connection terminals
[1]: Probe 1 is selected as the current sensor
[2]: Probe 2 is selected as the current sensor
p. 34
99
Delta conversion
setting
Displays the operating state of the delta conversion function.
[∆]: Delta conversion enabled
Blank: Delta conversion disabled
p. 33
1010
LPF Displays the low-pass lter setting. p. 60
1111
PS Shown when the phase correction function is enabled. –
1212
Average
Displays the average setting.
[Mov]: Moving average
[Exp]: Exponential average
Blank: Disabled
p. 105
