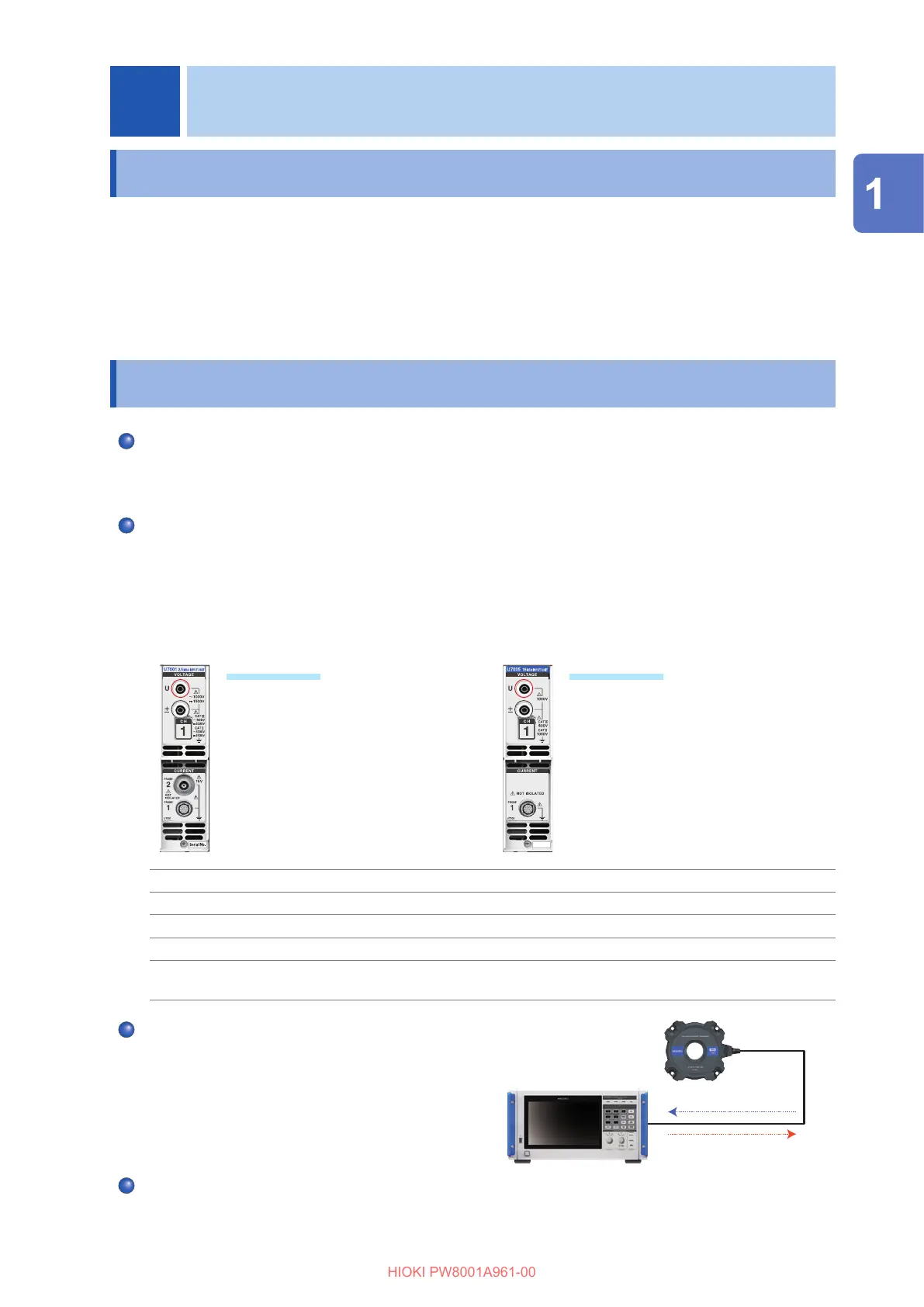

Overview
1.1 Product Overview
This instrument is a power analyzer that can analyze the power conversion e󰀩ciency by
simultaneously measuring the input and output powers of an object under measurement. The
instrument can include up to eight input modules and support various lines to be measured
according to your applications by combining wiring congurations from single-phase to three-phase
four-wire congurations as desired.
1.2 Features
Up to eight modules can be included
By combining two types of input modules with one to eight channels as desired, the measurement system
most suitable for your applications can be congured in a single instrument.
Combination of the two types of input modules enables the conguration of the most
suitable system
Two types of input modules are available: a general-purpose input module with high withstand voltage, the
U7001, and an input module with world-class accuracy of
±
0.03% and world-class high resolution and high-
speed sampling, the U7005.
According to the performance you need, the two types of input modules can be combined and installed on the
PW8001.
U7001 (p. 220)
Measurement for CAT II at 1500 V is
now possible during the development,
evaluation, and delivery inspection of
power conditioners.
Power measurement basic accuracy
±
0.07%
U7005 (p. 225)
E󰀩ciency of SiC/GaN inverters and loss
of reactors and transformers can be
measured with high accuracy.
Power measurement basic accuracy
±
0.03% (DC accuracy
±
0.05%)
Sampling frequency 2.5 MHz 15 MHz
ADC resolution 16-bit 18-bit
Measurement frequency band DC, 0.1 Hz to 1 MHz DC, 0.1 Hz to 5 MHz
Maximum input voltage 1000 V AC, 1500 V DC 1000 V AC, 1000 V DC
Maximum rated line-to-ground
voltage
600 V AC, 1000 V DC CAT III
1000 V AC, 1500 V DC CAT II
600 V CAT III
1000 V CAT II
Automatically recognizes current sensors
(p. 42)
The instrument automatically acquires information on
current sensors connected to itself and corrects their
phase errors.
This signicantly reduces the setting time before
measurement and strongly supports accurate power
measurement.
Automatically
acquiring information
Powered by PW8001
Simple Settings (Quick Set)(p. 45)
The Quick Set function allows measurement conditions to be set to typical values at once according to the
selected lines to be measured.
1 Overview
Overview
HIOKI PW8001A961-00
