Hioki PW8001-01 User Manual

36

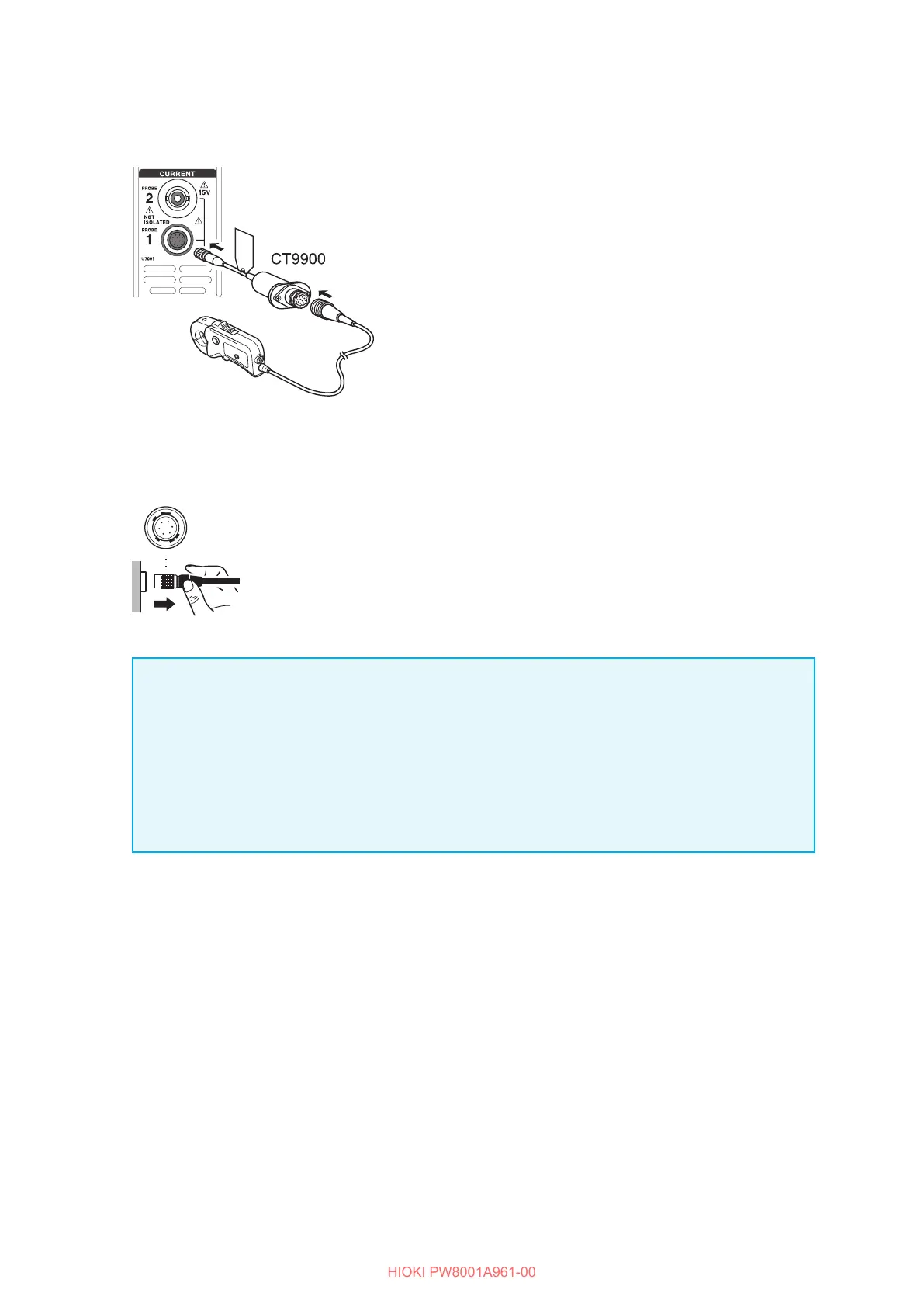

Connecting the Current Sensors (Current Input)
When the connector is plastic
Current sensors including the 9709, the CT6860 series, and the CT6840 series can be connected
to the Probe 1 terminal by using the optional CT9900 Conversion Cable.
22
11
1
Turn the instrument o󰀨, then align the
positions of the connector guides of the
CT9900 Conversion Cable and the current
sensor to connect them.
2
Insert the connector of the CT9900 straight
until it is locked.
How to plug the connector
1
Hold the metallic part of the connector and slide it
toward the cable side to unlock the connector.
2
Pull out the connector.
IMPORTANT
• Connect a current sensor to either the Probe 1 or Probe 2 terminal of a single input module.
Connecting two current sensors with both the Probe 1 and Probe 2 terminals can a󰀨ect
measurement.
• Do not drop a current sensor onto a oor or other surface.
• Do not subject the current sensor to mechanical shock.
Doing so could adversely a󰀨ect the measurement accuracy and the opening/closing
mechanism.
HIOKI PW8001A961-00
