55
Measuring Power
Display of ranges

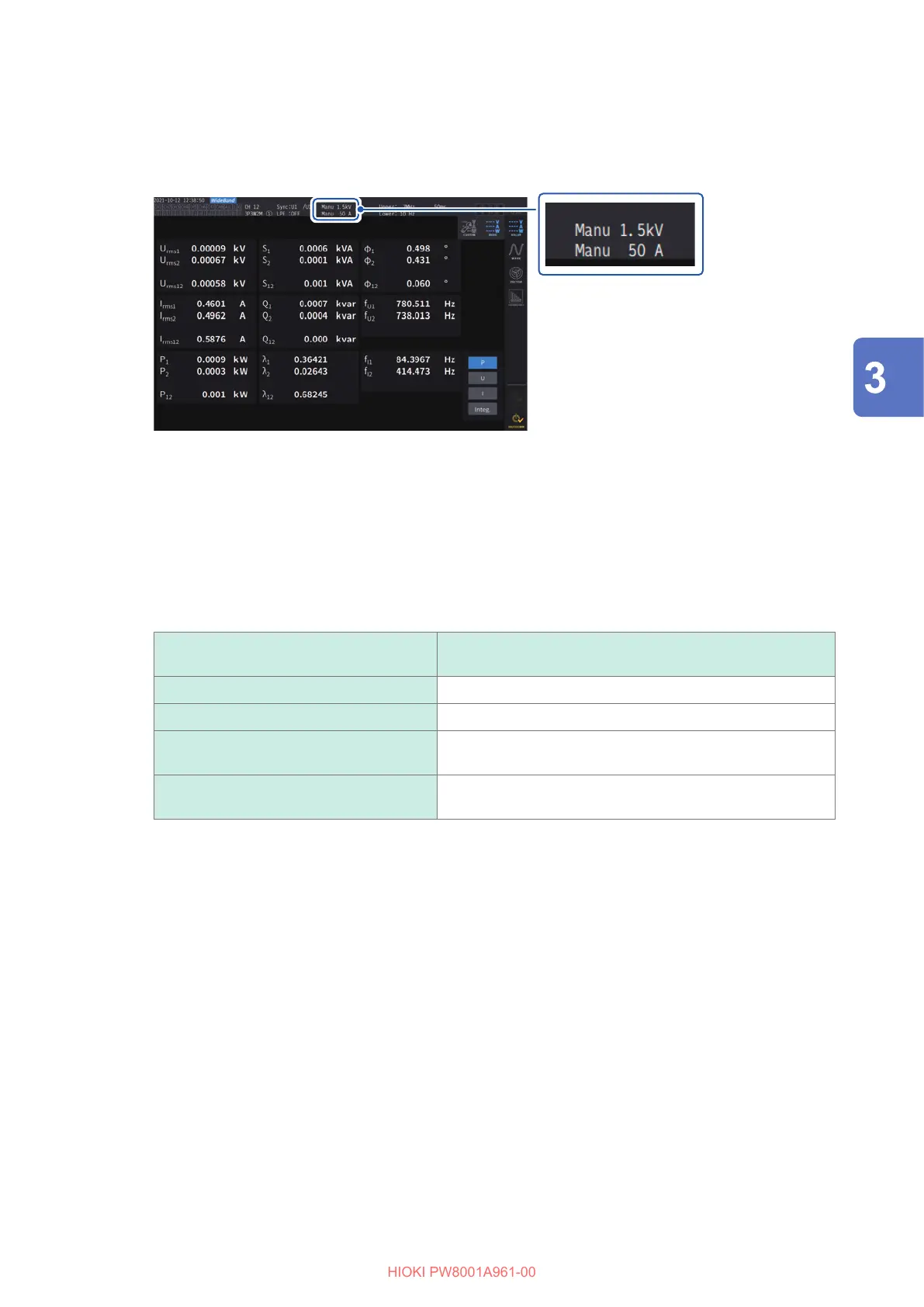

The voltage and current ranges are displayed in the settings indicator area on the Measurement
screen as shown below at all times.
The on-screen ranges and other information are for the channels whose indicators are lit up.
Power range
The power range is used to measure active power P, apparent power S, and reactive power Q.
The power range is determined as follows based on the voltage range, current range, and wiring
conguration.
See “Power range conguration” (p. 209).
Example: For active power P
(same applies to S and Q)
Power range
P1, P2, P3, P4, P5, P6, P7, P8 (Voltage range)
×
(Current range)
P12, P23, P34, P45, P56, P67, P78 2
×
(Voltage range)
×
(Current range)
P123, P234, P345, P456, P567, P678 of
3V3A and 3P3W3M
2
×
(Voltage range)
×
(Current range)
P123, P234, P345, P456, P567, P678 of
3P4W
3
×
(Voltage range)
×
(Current range)
Displaying Power Numerically
HIOKI PW8001A961-00
