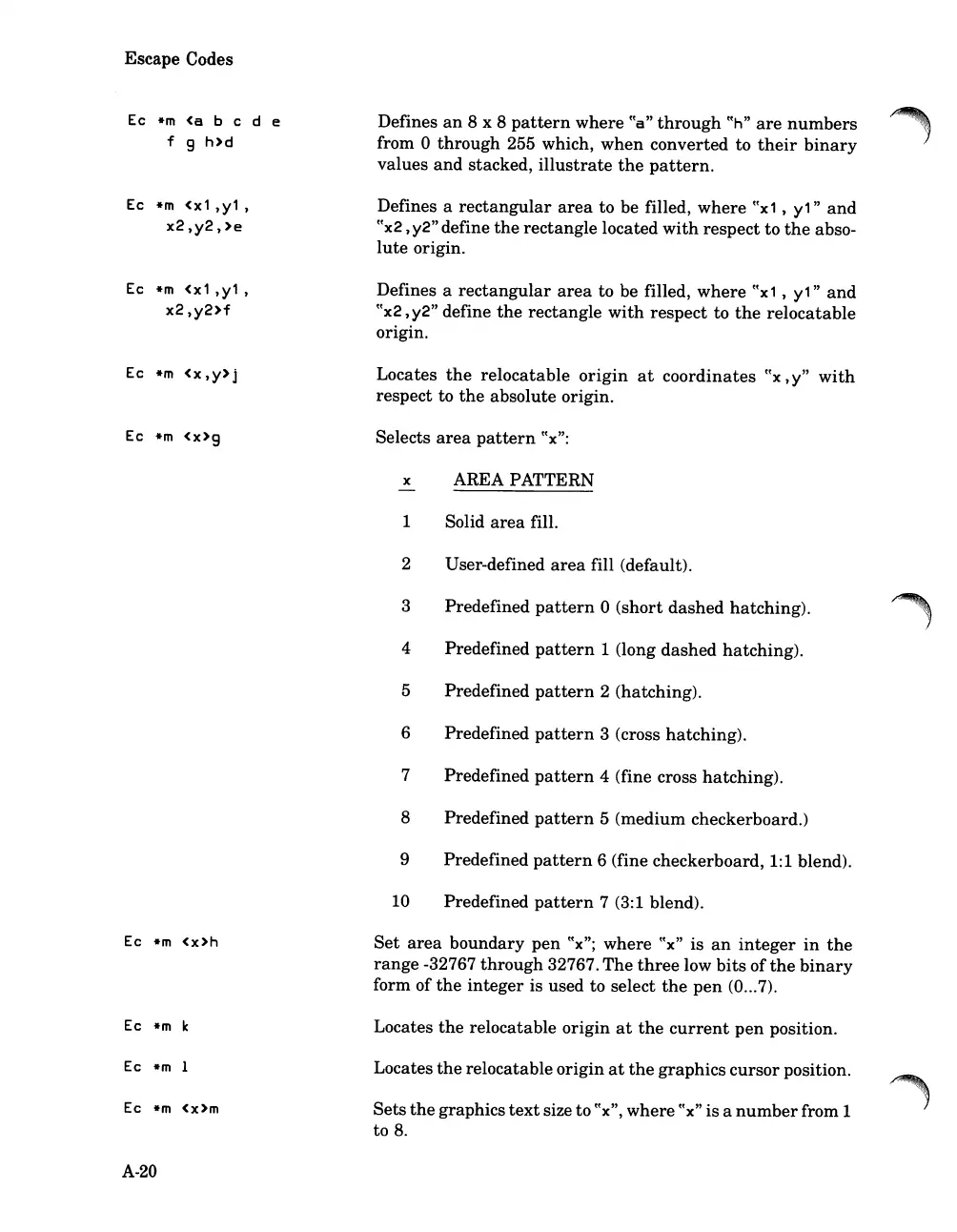

HP 262SA - Page 230

Escape Codes
Ec *m <a bed e
f 9 h>d
Ec *m <x1,y1,
x2,y2,>e
Ec *m <x1 ,y1 ,
x2,y2>f
Ec *m <x,y>j
Ec *m <x>g
Defines an 8 x 8 pattern where ((a" through ((h" are numbers
from 0 through 255 which, when converted to their binary
values and stacked, illustrate the pattern.
Defines a rectangular area to be filled, where ((x1 , y1" and
t(x2 ,y2" define the rectangle located with respect to the abso-
lute origin.
Defines a
rectangular area to be filled, where t(x1 , y1" and
tt
x
2 ,y2"
define the rectangle with respect to the relocatable
origin.
Locates
the relocatable orIgIn at coordinates tt
x
,y" with
respect to the absolute origin.
Selects
area pattern tt
x
":
x AREA PATTERN
1 Solid
area fill.
2 User-defined
area fill (default).
3
Predefined
pattern 0 (short dashed hatching).
Ec *m <x>h
Ec *m
Ec *m
Ec *m <x>m
A-20
4 Predefined pattern 1 (long dashed hatching).
5 Predefined pattern 2 (hatching).
6 Predefined pattern 3 (cross hatching).
7 Predefined pattern 4 (fine cross hatching).
8 Predefined pattern 5 (medium checkerboard.)
9 Predefined
pattern 6 (fine checkerboard, 1:1 blend).
10 Predefined pattern 7 (3:1 blend).
Set area boundary pen tt
x
";
where tt
x
"
is an integer in the
range -32767 through 32767. The three low bits of the binary
form of the integer is used to select the pen (0 ... 7).
Locates the relocatable origin at the current pen position.
Locates
the relocatable origin at the graphics cursor position.
Sets the graphics text size to (t
x
", where (t
x
"
is a number from 1
to 8.
