Graphics
The scale factor indicates how many times each bit in the pattern is repeated. The default scale
factor
is 1. For example, a scale factor of 3 applied to the pattern defined above results in a
pattern of or 111000111000111000111000 (binary).
The command for creating a user-defined line type is:
Ec * m <pattern><scale>c
where <pat tern> is an integer in the range (-32768 to 32767) and <scale> is an integer in the
range (1 to 255).
Examp 1 e: Define a pattern to generate the following vector:
11111111110011001111111111001100
pattern = 11111010 = 250
scale
= 2
Ec * m 250- 2 c
(A)
12
11
10
(2,10)
9
8
7
6
5
4
3
2
0
(9,12)
(9,3)
(8)
Area Pattern
~
7
6
5
4
Rows
3
2
0
0
1
2
3
4
5
6 7
Columns
o 1 2 3 4 5 6 7 8 9 10

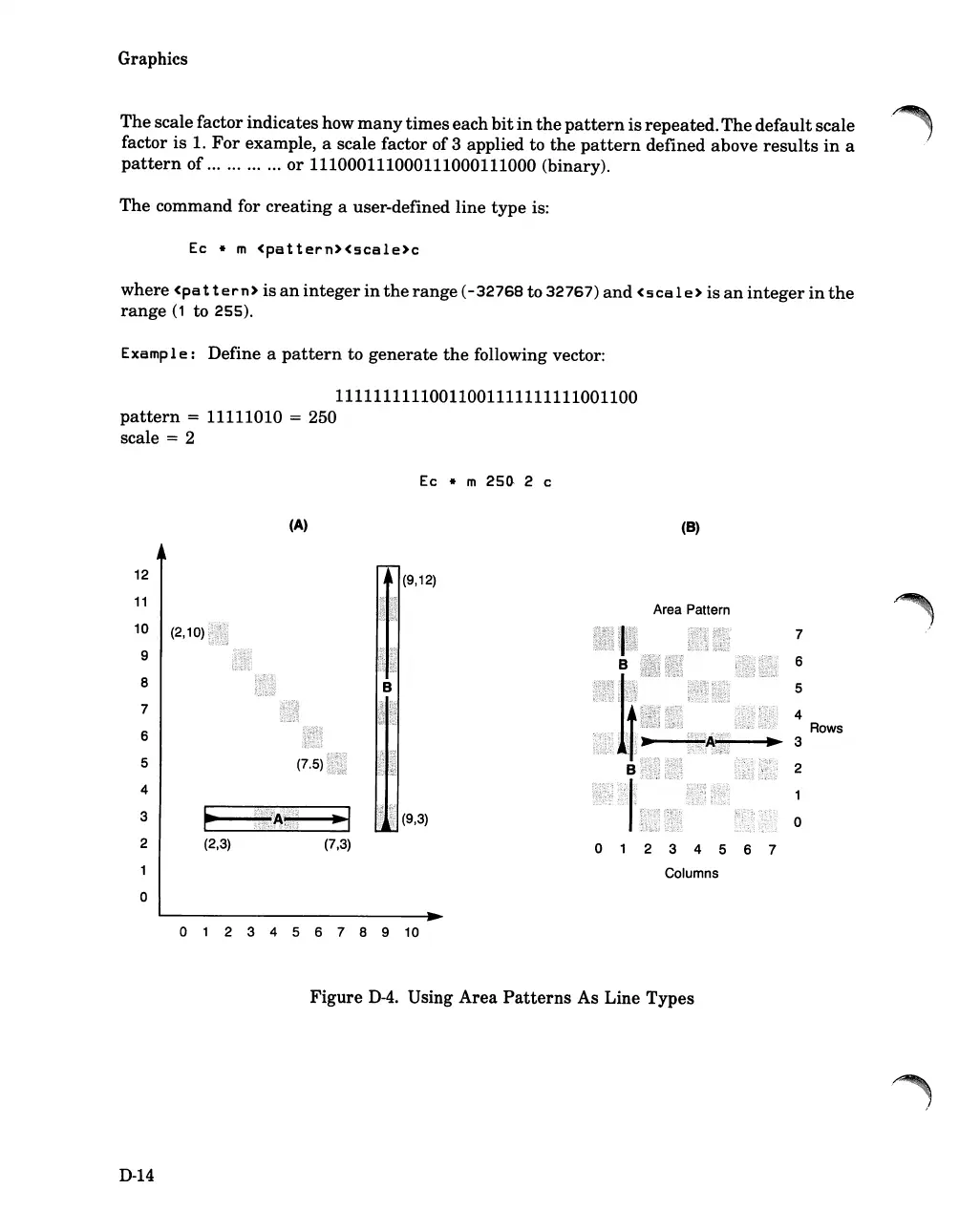

Figure D-4. Using Area Patterns As Line Types
D-14
