4.3 Scenarios for Connecting the ECC800-Pro Outside
the Smart Module
4.3.1 Preparing a Monitoring Cable
Prerequisites
● A twisted pair, cord end terminal, and RJ45 connector are prepared.
● The following tools are prepared:
– Wire stripper
– Crimping tool
– RJ11 crimping tool
– Electrician's knife
– Polyvinyl chloride (PVC) insulation tape
Preparing a Cord End Terminal
Figure 4-19 shows how to prepare a cord end terminal.

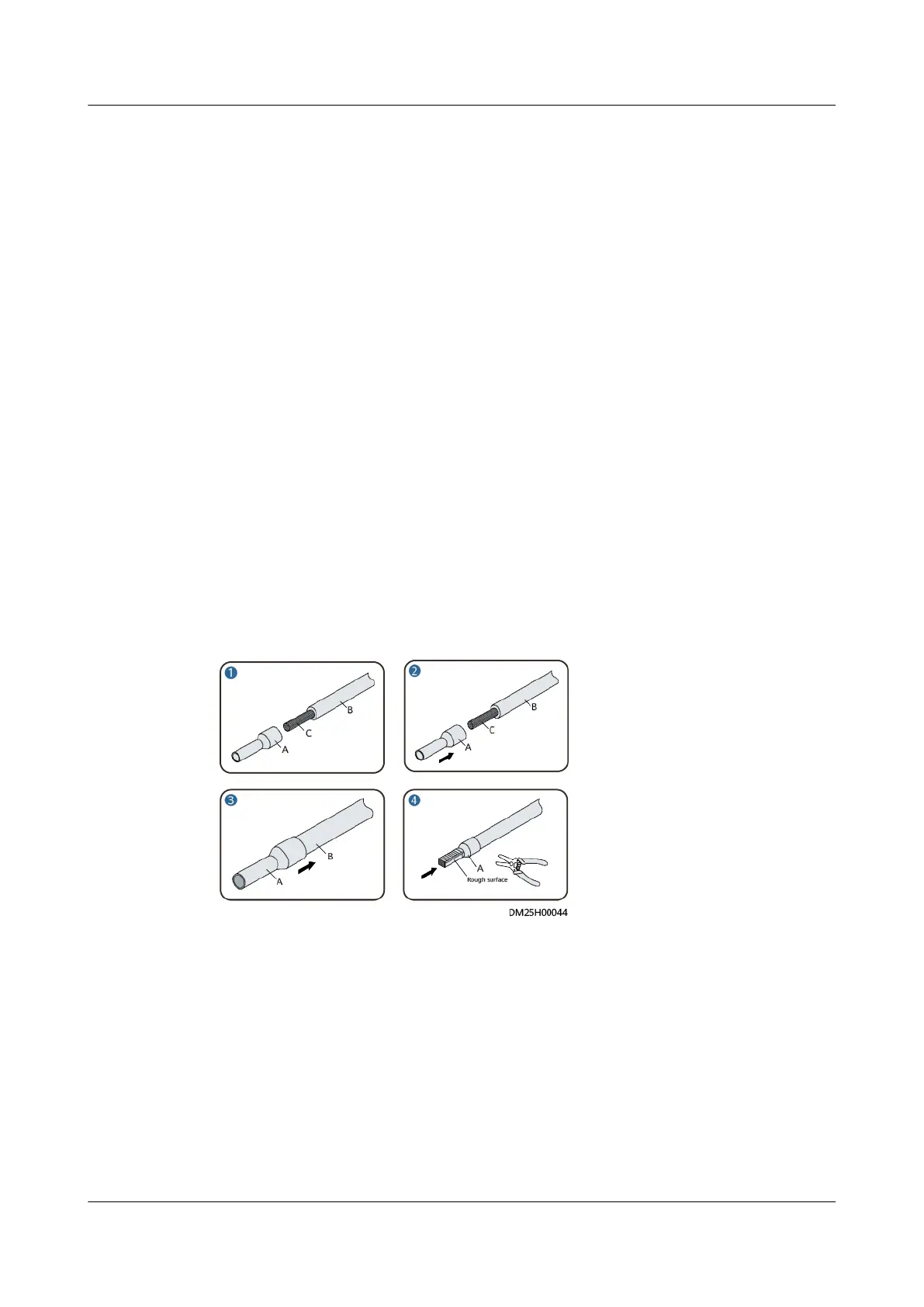

Figure 4-19 Preparing a cord end terminal
Preparing the RS485 Monitoring Cable
Figure 4-20 shows how to prepare a cord end terminal for the ECC800-Pro
collector.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 89
