4.3.3 UIM20A Expansion Module

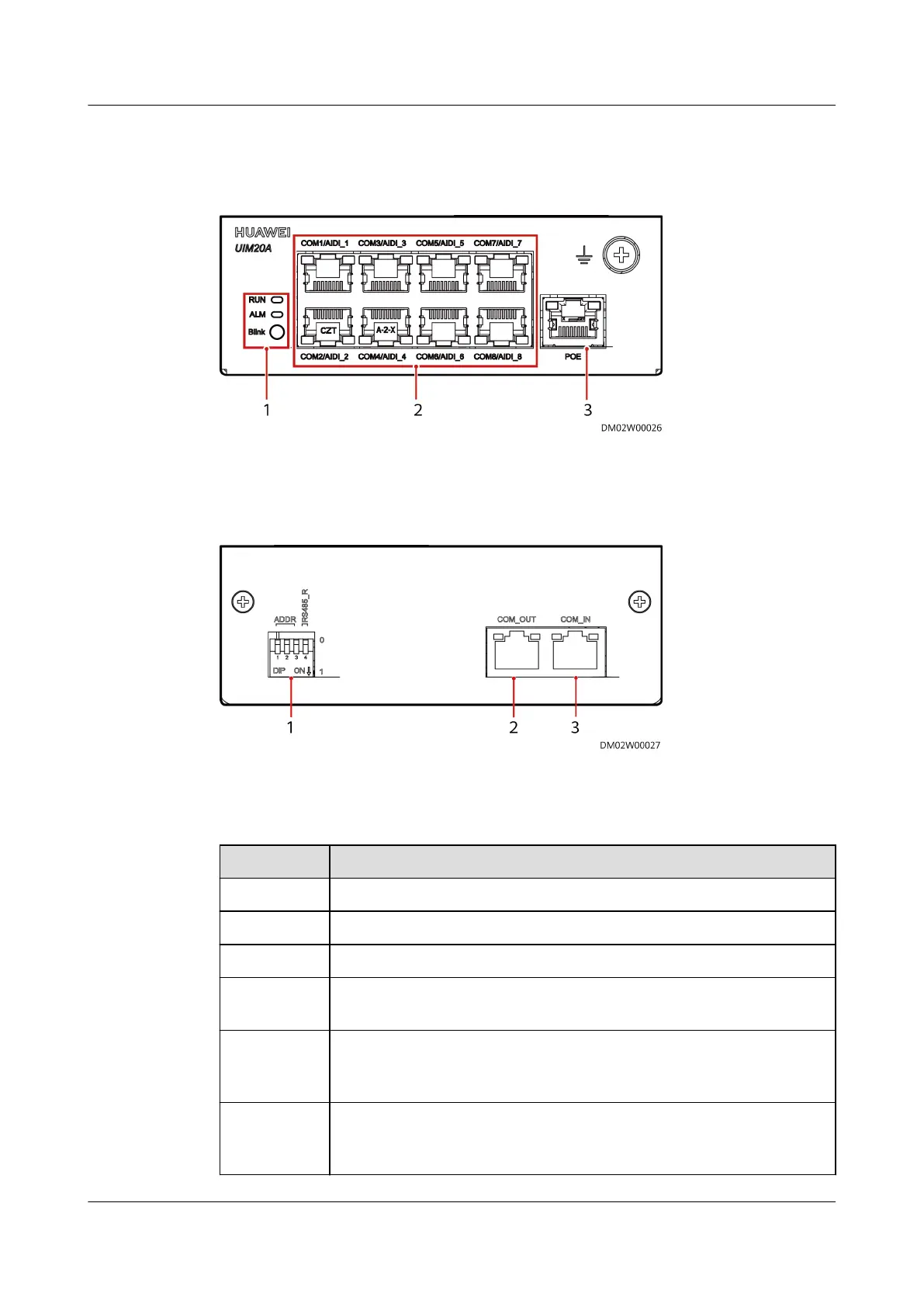

Figure 4-26 UIM20A expansion module front panel
(1) Indicators and button (2) COM1/AI/DI_1 - COM8/AI/
DI_8
(3) POE
Figure 4-27 UIM20A expansion module rear panel
(1) DIP switch (reserved)
(2) COM_OUT (reserved) (3) COM_IN (reserved)
Table 4-25 UIM20A expansion module specications
Item
Specications
Width 120 mm
Depth 200 mm
Height 43 mm
Operating
temperature
–30°C to +65°C
Installation
requirement
s
Installed in a 19-inch rack
Environmen
tal
protection
RoHS5
