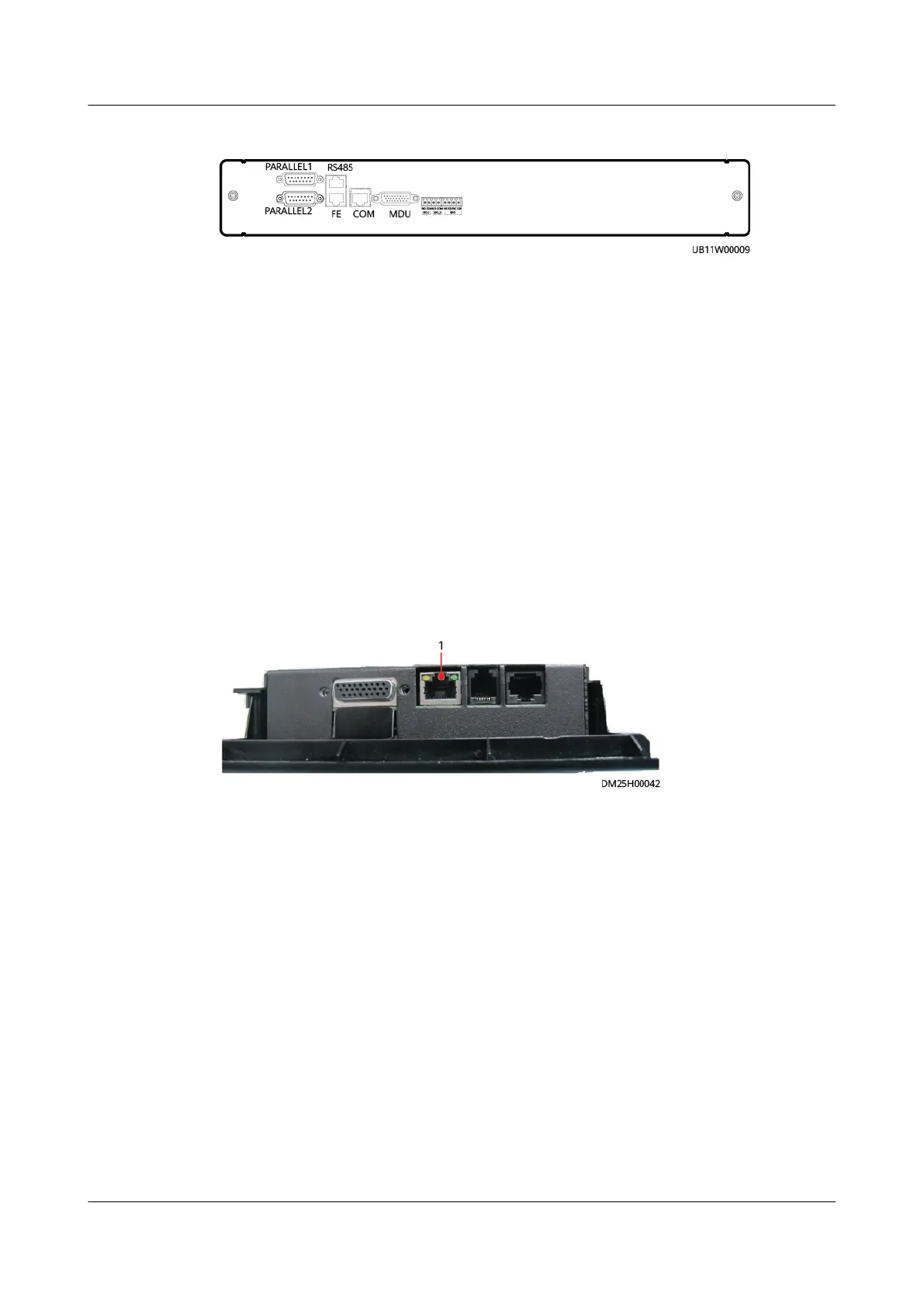

Figure 4-16 FE port on the monitoring interface unit
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
4.2.7 Connecting the PDU8000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the FE port on the display panel of
PDU8000, as shown in Figure 4-17.
Figure 4-17 Connecting a monitoring cable to the PDU8000 (FE port)
(1) FE port
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
4.2.8 Connecting a Monitoring Cable to the MTS9604B-
N20B1/MTS9606B-N20C2
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the FE communications port on the
SMU02C in the MTS9604B-N20B1/MTS9606B-N20C2 cabinet.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 87
