4.2.5.2 Connecting the UPS5000-A Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of a network cable to the FE port of the UPS5000-A.

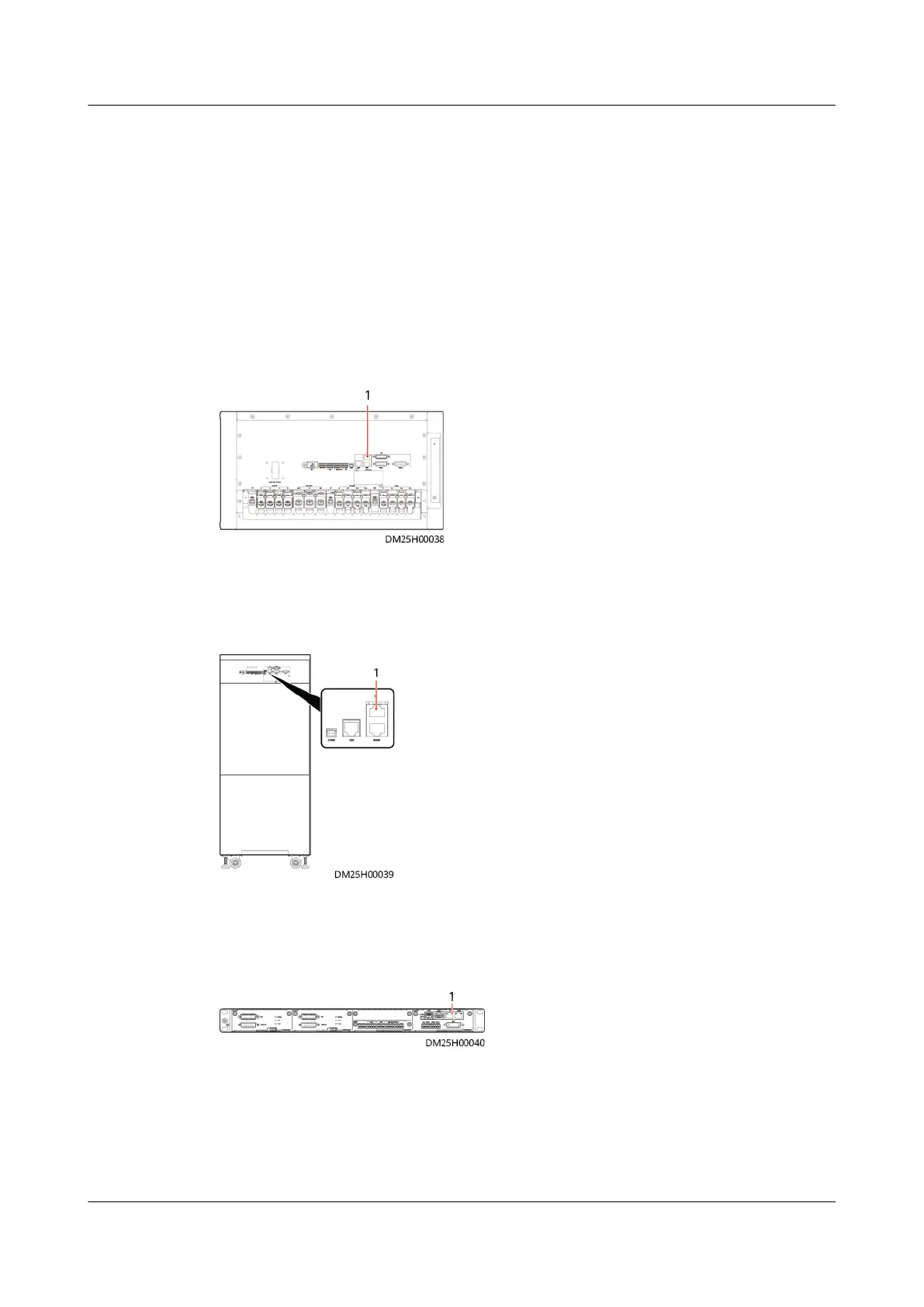

Figure 4-12 UPS5000-A-30 kVA/40 kVA functional components and control signal
ports
(1) FE port
Figure 4-13 UPS5000-A-60 kVA/80 kVA/120 kVA functional components and
control signal ports
(1) FE port
Figure 4-14 FE port on the UPS monitoring module of the 300 kVA UPS and
models with higher capacities
(1) FE port
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
