3.9.2 Installing an In-Room Double-Door Magnetic Lock
Context
● The magnetic lock supports a double-door that can be rotated open
outwards. The door frame should be over 42 mm thick. A glass door is not
supported.
● The cable routes are planned.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90 degrees, as shown
by (2) in Figure 3-62.
Step 2 Close the door, place the cutout template at the midline of the door frame in the
door opening direction, mark the mounting holes, and drill holes, as shown in
Figure 3-62.

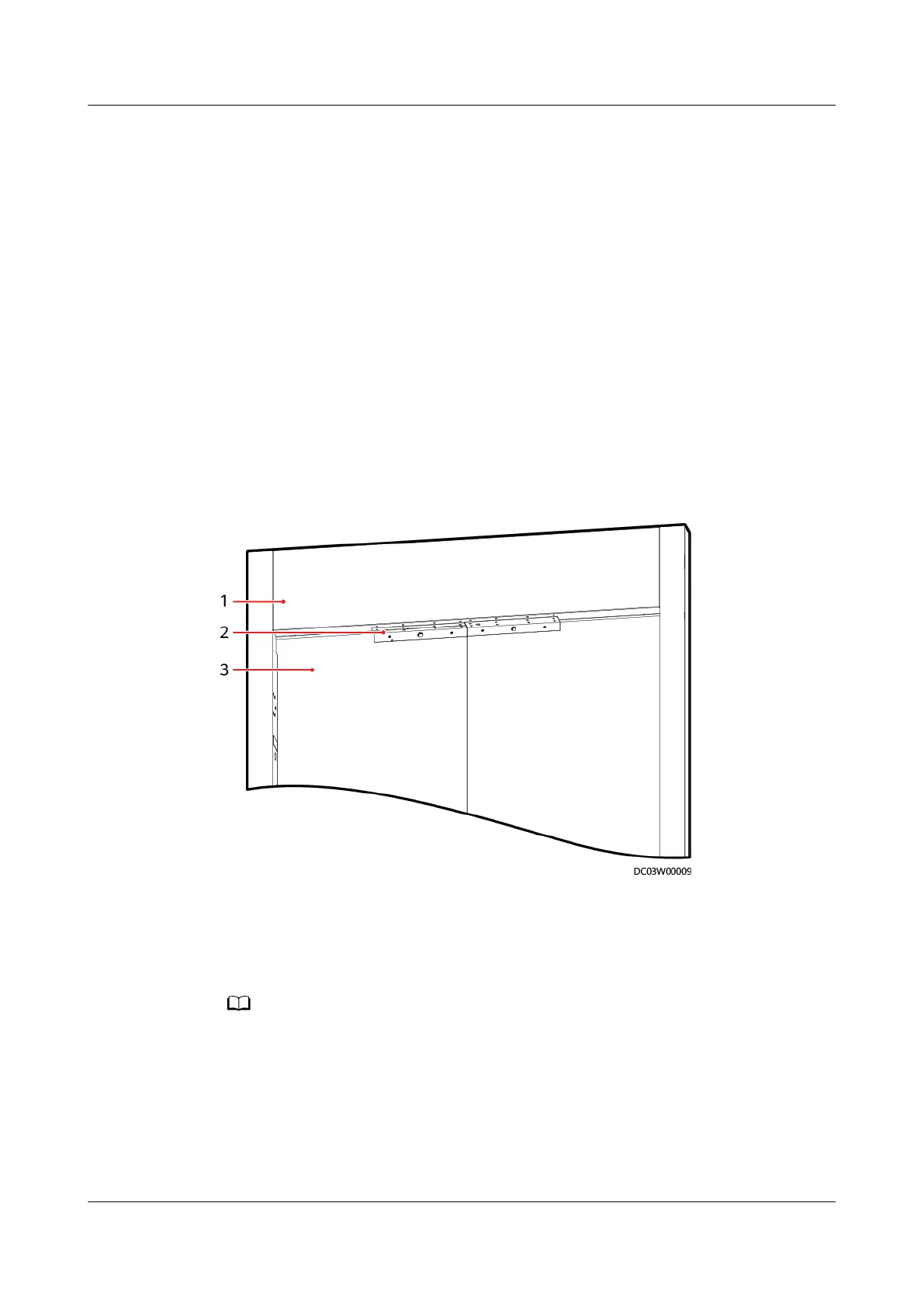

Figure 3-62 Mark the installation position
(1) Door frame (2) Cutout template (3) Door panel
Step 3 Remove the hoisting strip using the delivered hex key.
Four hex socket screws need to be removed in this step.
