Step 2 Remove the original bottom plate, as shown by (4) in Figure 7-41.
Step 3 Take out the bottom plate of the new card reader with a keypad and secure it.
Step 4 Connect the cable.
Step 5 Secure the card reader with a keypad to the bottom plate.
Step 6 Choose System > Service Settings > Data Center Planning from the main menu.
The Data Center Planning page is displayed.
Step 7 Select the new card reader with a keypad, and click Connection test. When
Connection success is displayed, the replacement is complete.
----End
7.2.6.7 Replacing a Fingerprint and Card Reader with a Keypad
Prerequisites
● Recommended tool: Phillips screwdriver
● A
ngerprint and card reader with a keypad needs to be replaced.
● A spare ngerprint and card reader with a keypad of the same model is
available and functional.
Context

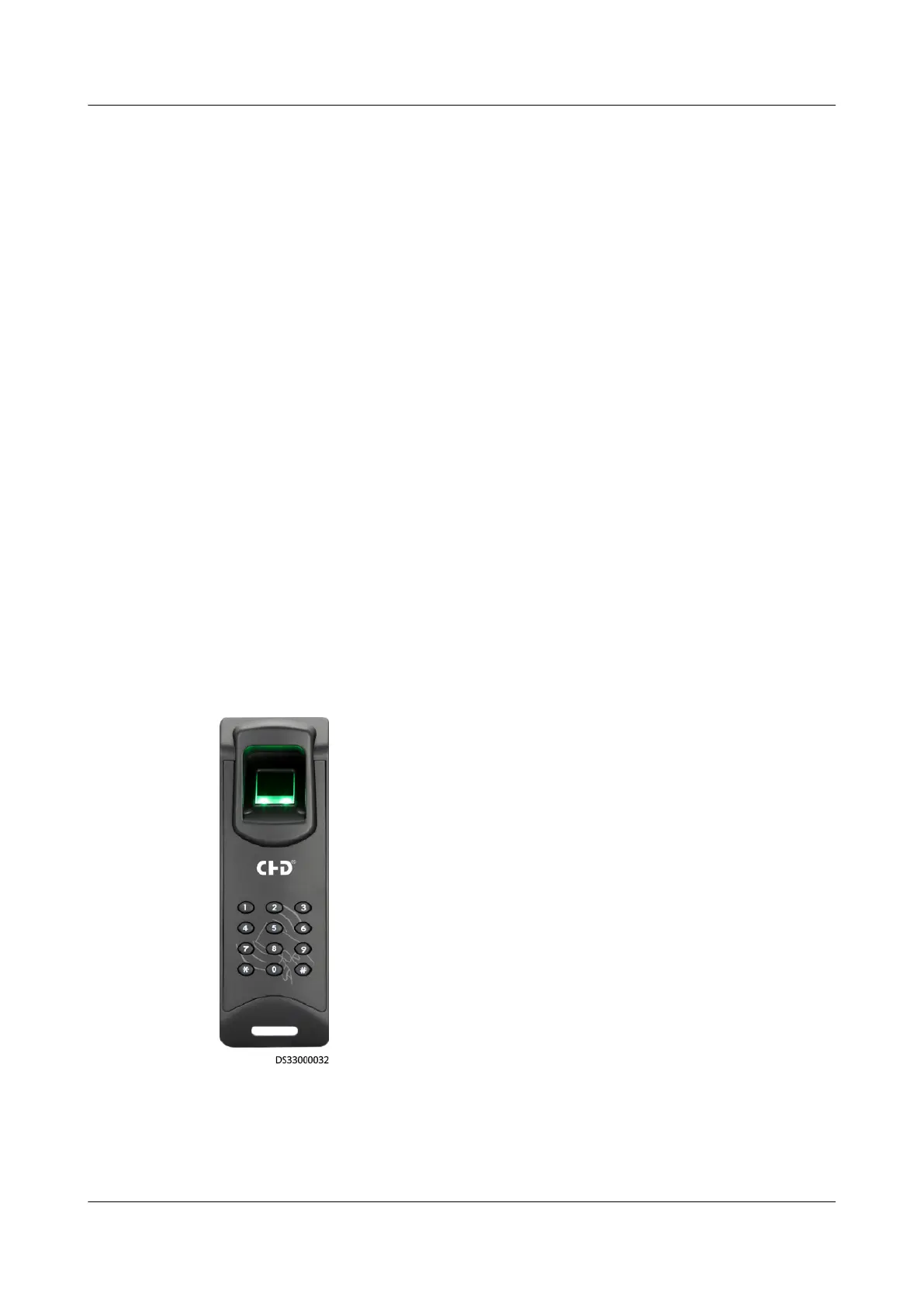

Figure 7-42 Fingerprint and card reader with a keypad
Procedure
Step 1 Remove the screw that secures the ngerprint and card reader with a keypad, and
remove the cable, as shown by (1), (2), and (3) in Figure 7-43.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 7 Device Maintenance
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 317
