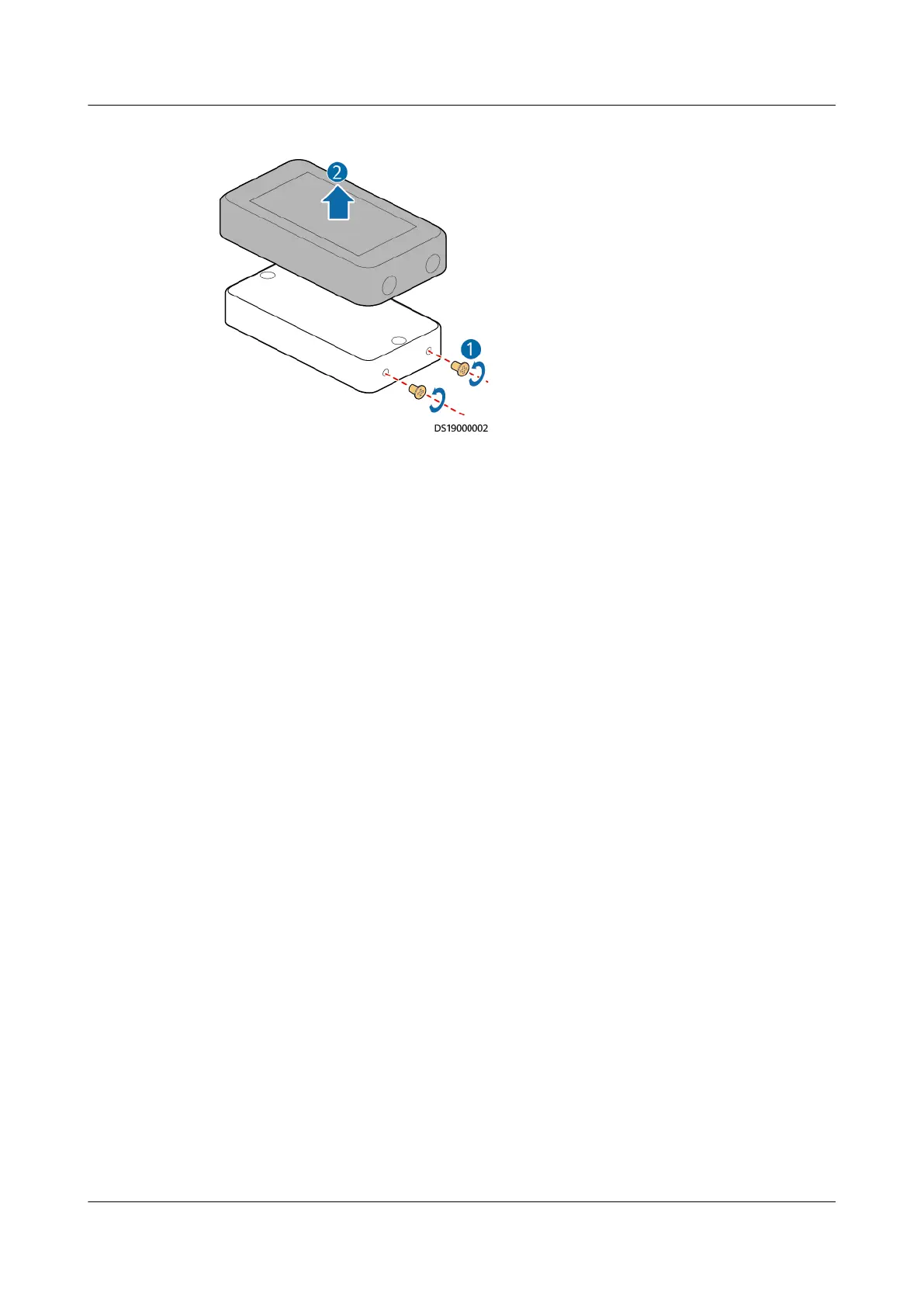

Figure 7-37 Removing the card reader cover
Step 7 Install the new card reader by performing the operations prior to Step 5 in reverse
order.
Step 8 Reinstall the post side panel.
----End
Follow-up Procedure
Power on the access controller and check whether the card reader works properly.
7.2.6.5 Replacing a Fingerprint and Card Reader
Prerequisites
● Recommended tool: Phillips screwdriver
● A
ngerprint and card reader needs to be replaced.
● A spare
ngerprint and card reader of the same model is available and
functional.
