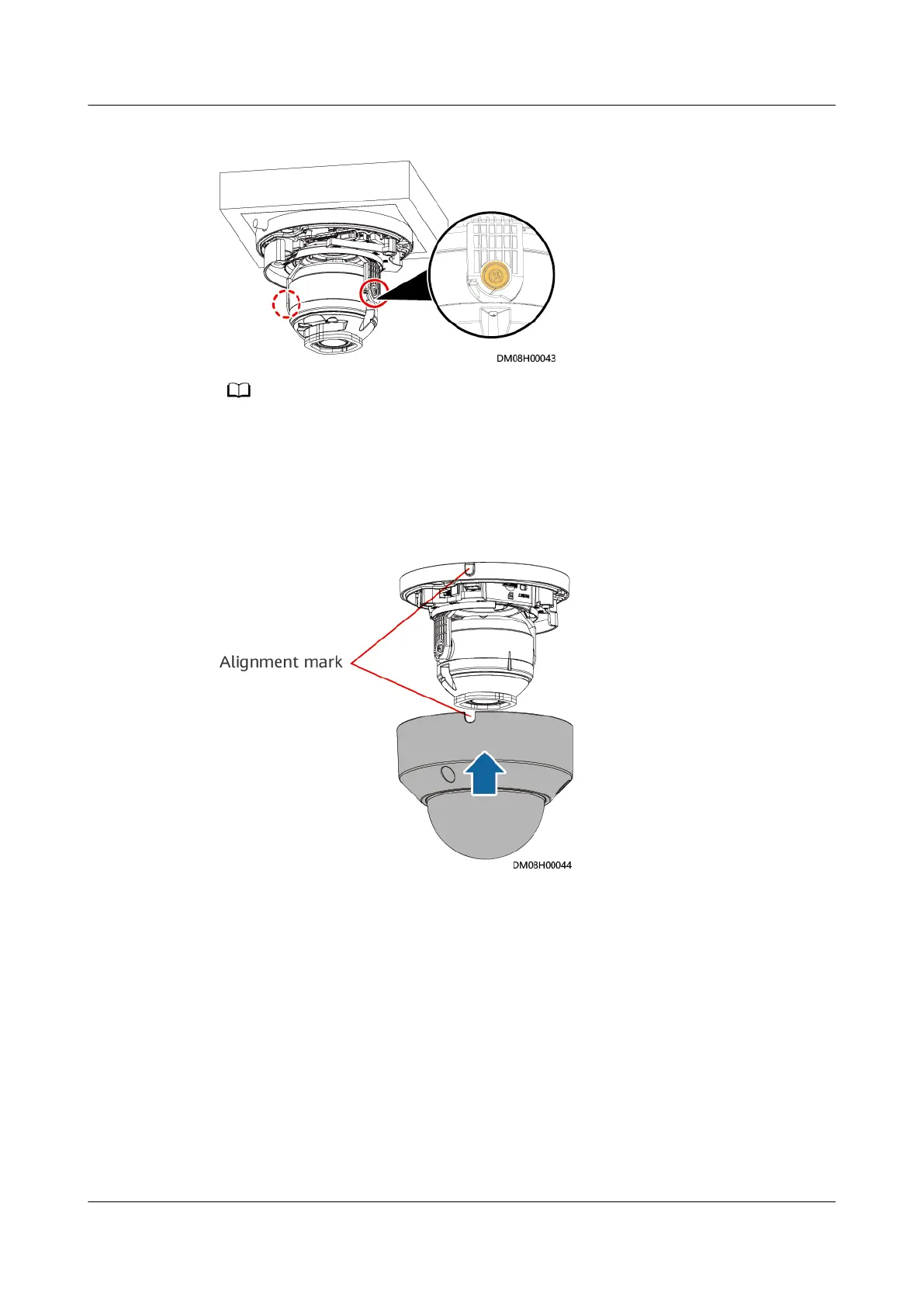

Figure 3-53 Adjusting the camera
The camera features a three-axis design. The camera can be adjusted by –175° to +180°
horizontally, and the lens can rotate –175° to +180° and be adjusted by 0° to 65° vertically.
Step 5 Align the transparent cover with the screw holes on the base, close the
transparent cover, and use a Phillips screwdriver to tighten the screws to 0.8 N·m.
Figure 3-54 Installing the transparent cover
----End
3.8.3 Installing the M2121 Camera
Cameras can be installed on
dierent objects based on scenarios. This section
describes how to install a M2121 camera on the wall.
Prerequisites
● A camera and tools for installing it have been prepared.
● A network cable for connecting the camera to the LAN switch has been
prepared.
● The LAN switch has been normally powered on.
