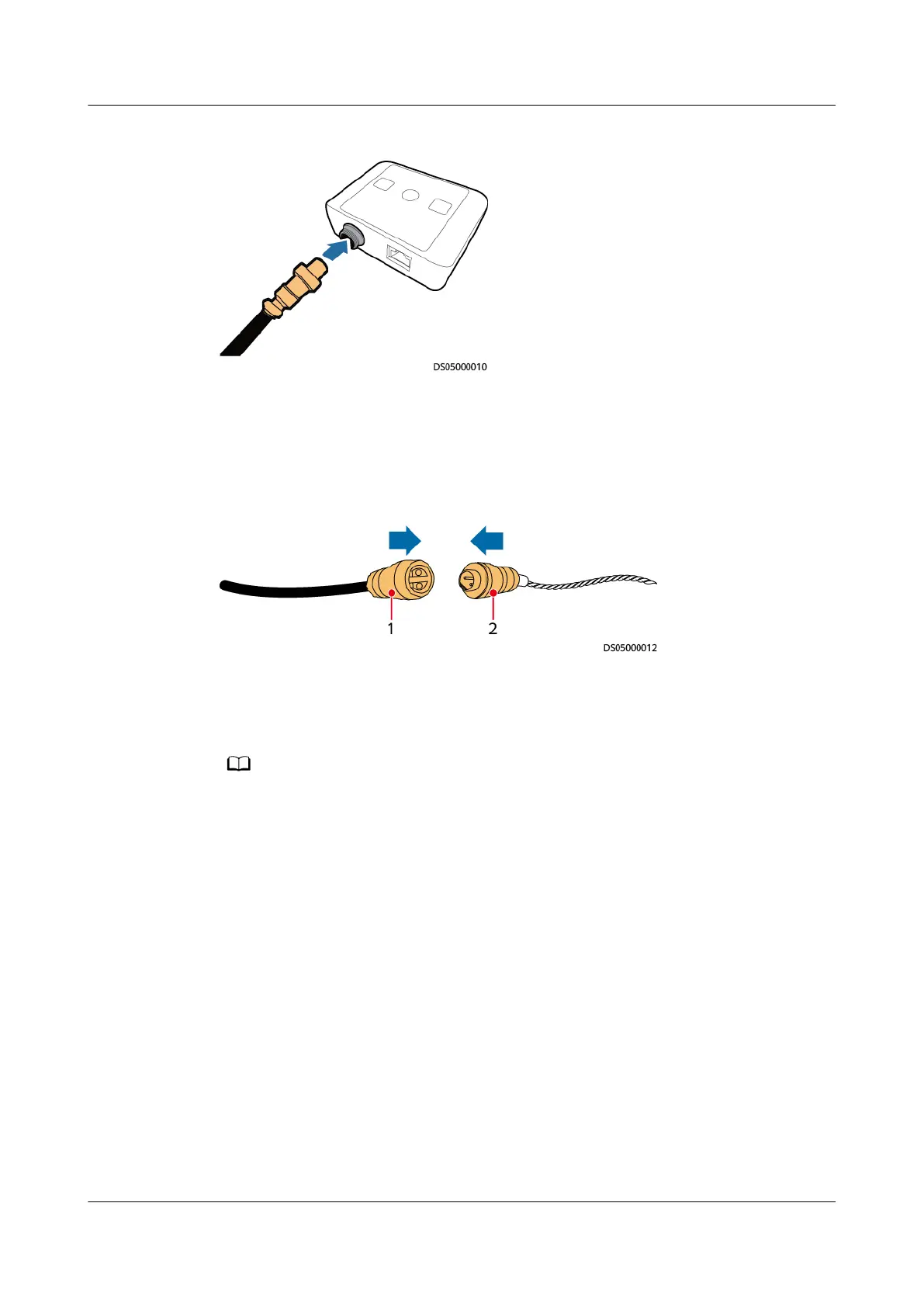

Figure 7-15 Connecting a conversion cable to a water sensor
Step 2 Replace a water detection cable.
1. Remove the faulty water detection cable from the port.
2. Install a new water detection cable, as shown in Figure 7-16.
Figure 7-16 Connecting a new water detection cable
(1) Conversion cable end B, connecting to the
water detection cable
(2) Water detection cable end A, connecting to
the conversion cable
The water detection cable and conversion cable are interconnected through the male and
female connectors.
----End
Follow-up Procedure
Check whether the new water sensor works properly. Connect the network cable
between the water detector and the ECC800-Pro, immerse the water detection
cable in water, and check whether an alarm is generated. If an alarm is generated,
the replacement is complete.
7.2.4.6 Replacing a Location-type Water Sensor and Water Detection Cable
Prerequisites
● The water sensor needs to be replaced.
● A spare water sensor of the same model is available and functional.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 7 Device Maintenance
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 299
