4.3.2.2 Main Control Module

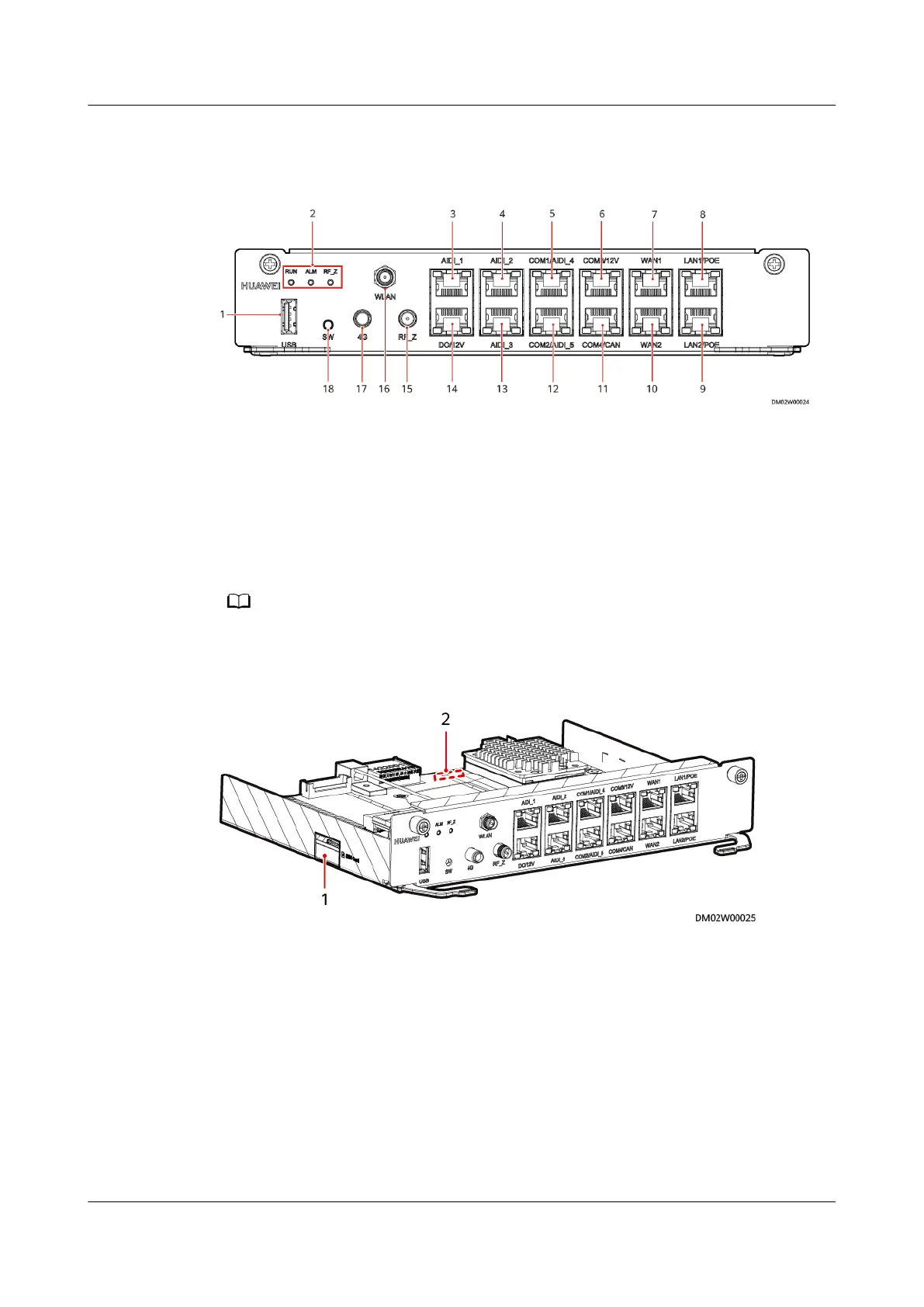

Figure 4-23 ECC800-Pro collector main control module
(1) USB (2) Status indicator (3) AIDI_1 (4) AIDI_2
(5) COM1/AIDI_4 (6) COM3/12V (7) WAN1 (8) LAN1/POE
(9) LAN2/POE (10) WAN2 (11) COM4/CAN (12) COM2/AIDI_5
(13) AIDI_3 (14) DO/12V (15) RF_Z (802.15.4) (16) WLAN (reserved)
(17) 4G (18) SW button
The WLAN port is reserved and cannot be connected to a WLAN antenna for WLAN
communication.
Figure 4-24 ECC800-Pro main control module (side view)
(1) SIM card slot
(2) Micro SD card slot (reserved)
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 93
