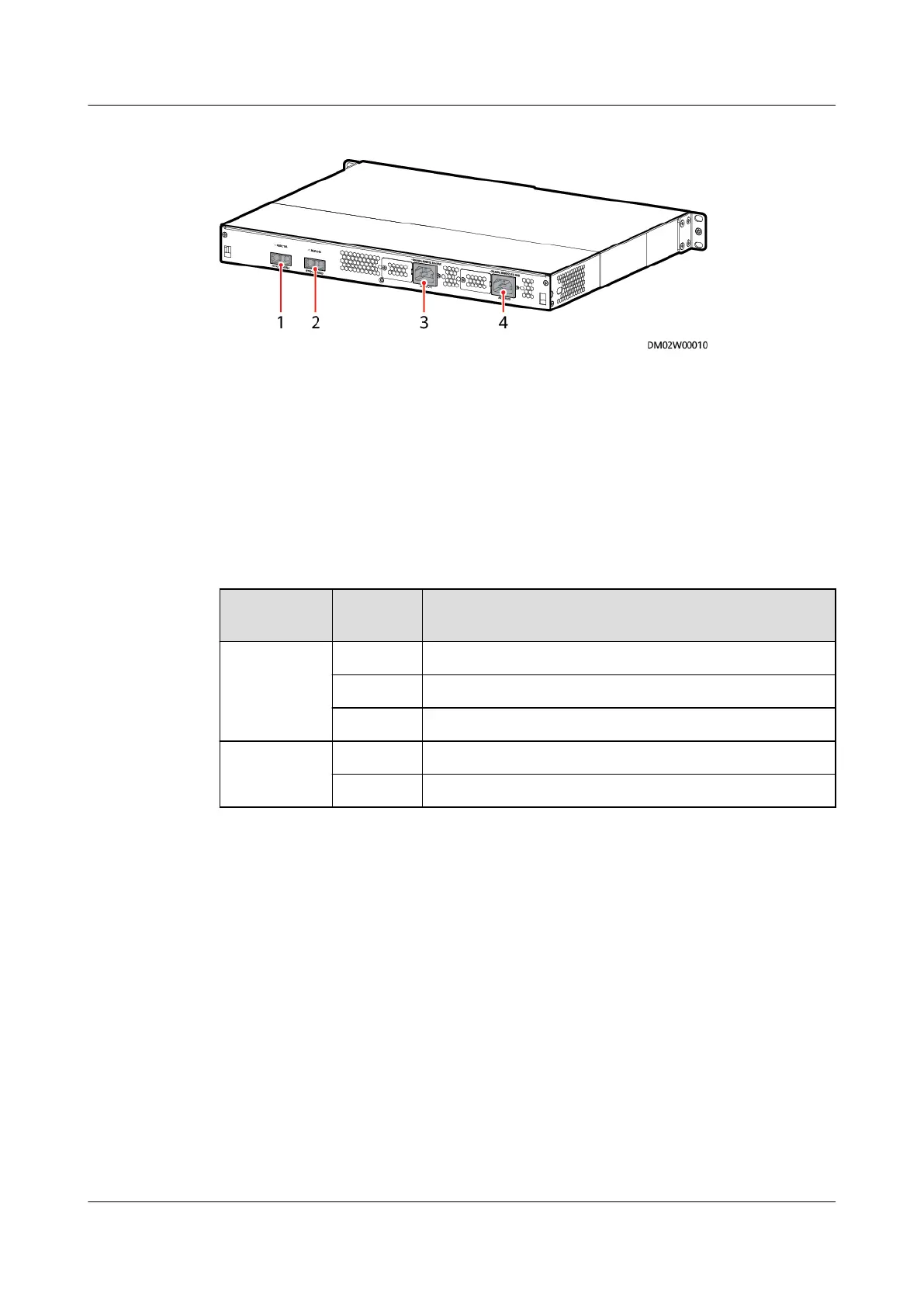

Figure 4-22 ECC800-Pro (rear view)
(1) 53.5V DC_OUT1 (2) 53.5V DC_OUT2 (3) AC_INPUT1
(4) AC_INPUT2
Power Port
The ECC800-Pro provides four power ports, including two AC input ports
(AC_INPUT1 and AC_INPUT2) and two DC output ports (DC_OUT1 and
DC_OUT2). Table 4-11 provides the power port pin
denitions.
Table 4-11 Power port pin denitions
Port Type
Pin
sequence
Description
AC Pin1 L
Pin2 PE
Pin3 N
DC Pin1 48V+
Pin2 48VGND
