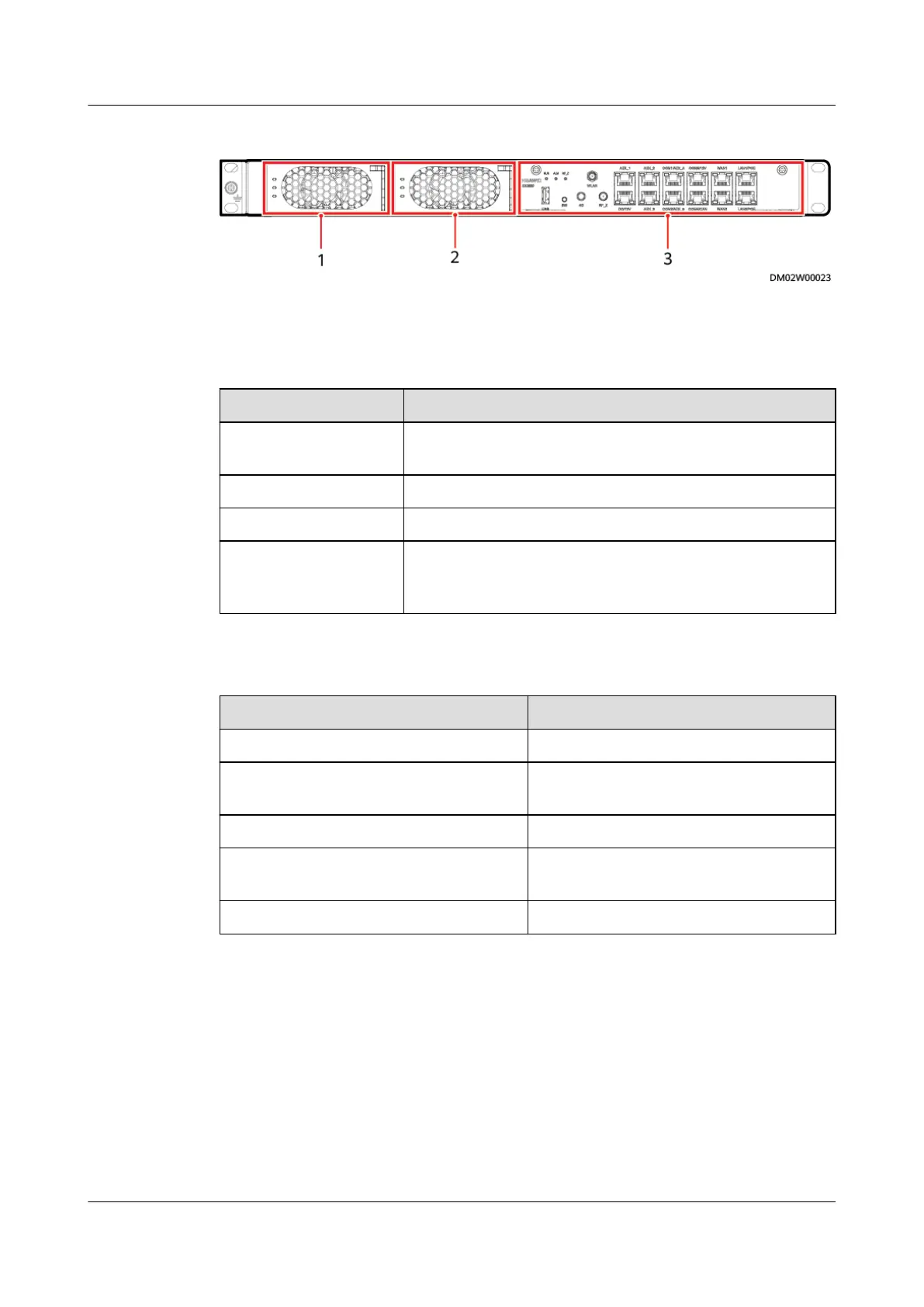

Figure 4-21 ECC800-Pro collector in conguration 2
(1) Slot 1: power modules (2) Slot 2: power modules (3) Slot 3: main control
module
Table 4-9 ECC800-Pro environmental specications
Item Specications
Operating
temperature
–20°C to +50°C
Storage temperature –40°C to +70°C
Relative humidity 5%–95% RH (non-condensing)
Altitude 0–4000 m (When the altitude is between 3000 m and
4000 m, the temperature decreases by 1°C for each
additional 200 m.)
Table 4-10 ECC800-Pro structural specications
Item
Specications
Dimensions (L x W x H) 442 mm x 330 mm x 43.6 mm
Weight 7.5 kg (dual power supplies + main
control module)
Color Black
Installation requirements Can be installed in a 1 U space in a
standard 19-inch cabinet
Environmental protection RoHS5, REACH, WEEE
