4.3.9.1 Connecting a Monitoring Cable to the UPS2000-G (Modbus)
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the COM_1 or COM_2 port on the
Modbus expansion card of the UPS2000-G.

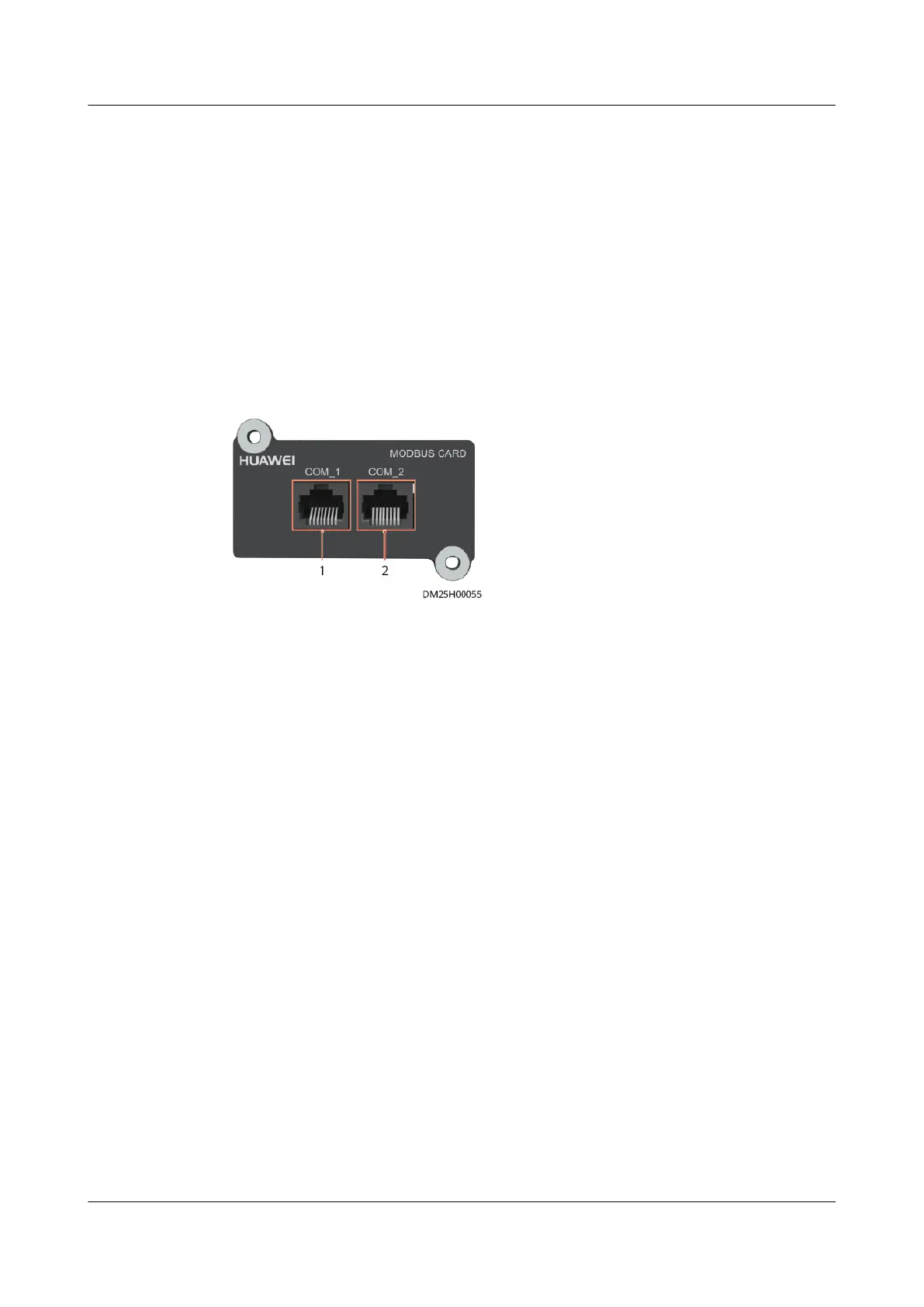

Figure 4-52 RS485 port
(1) COM1 port (RS485 supported)
(2) COM2 port (RS485 supported)
Step 2 Connect the other end of the network cable to the COM port on the ECC800-Pro
collector or the UIM20A expansion module.
----End
4.3.9.2 Connecting a Monitoring Cable to the UPS5000-A
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of a network cable to the COM port of the UPS5000-A.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 128
